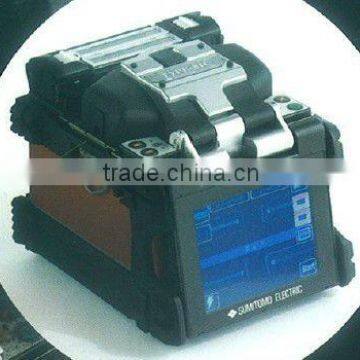

Help CenterJapan SPLICER MACHINE Sumitomo TYPE-81C Fusion Splicer!
Related Products
-
USA COMWAY C10 Fusion Splicer Equal to Sumitomo Type-81c /type-81c/type-q101 Fusion SplicerUS$ 1 - 4,500MOQ: 1 Set -
Fujikura Splicing Machine FSM-80S/ Latest Version in FujikuraUS$ 1 - 7,000MOQ: 1 Set
-
Fujikura Splicing Machine FSM-80S/ Latest Version in FujikuraUS$ 1 - 7,000MOQ: 1 Set
-
Fitel S178A V2 Optical Fiber Fusion Splicer Kit With S326 Cleaver, All LanguagesUS$ 6,500 - 6,800MOQ: 1 Set
-
FSM-70RUS$ 8,000 - 10,000MOQ: 1 Set
Contact information
Please contact Super Sales Engineer: Jim zheng
WhatsApp / Viber: +8613728095480
Skype: honserv
Shenzhen Hontek Co., Ltd. is a professional distributor and product developer for telecom test equipments. We are the sole agency of Comway from California. USA. and also agent for Fujikura, Sumitomo fusion splicers, EXFO, JDSU, Yokogawa test equipments, Anritsu site master. At the same time, we have our own factory producing the fiber testers, patch cords, cables and fiber accessories.
Features :
- Downsized by 43% from conventional model
- 2.1kg weight with battery
- Ultra fast splicing(7sec.)
- Ultra fast heating(28sec.)
- G.657 fiber auto splicing function
- IP52 rating and 76cm drop on 5 faces
- Automatic arc calibration
- Touch screen operation
- Universal clamp for 250µm,900µm tight and loose buffer fiber
- User selectable heater clamp operation
- Support bi-directional splicing operation
- Equipped with onboard training vedio
- Upgrades software via internet
| Product name | TYPE-81C | |||
| Optical fiber requirements | Material | Silica glass | ||
| Profile types | SMF (ITU-T G.652), MMF (ITU-T G.651), DSF (ITU-T G.653), NZDSF (ITU-T G.655), BIF (ITU-T G.657), EDF | |||
| Fiber diameter | Cladding diameter: 80μm~150μm, Coating diameter: 100μm~1,000μm | |||
| Applicable fiber or cable size | up to ø1,000μm | Drop cable (2.0×3.1mm) Indoor cable (2.0×2.0mm) | ||
| Cleave length | 5~16mm | 10mm | ||
| Standard performance | Splice loss (typical) *1 | SMF: 0.02dB, MMF: 0.01dB, DSF: 0.04dB, NZDSF: 0.04dB | ||
| Splicing cycle time (typical) | 7sec. (Quick mode), 7.5sec. (SMF standard mode), 8sec. (Auto mode) | |||
| Heating cycle time (typical) | 28sec. | |||
| Splice & Heat cycles *2 | Approx.200 | |||
| Fiber view & magnification | Two CMOS cameras observation 320X (zoom:700X) for X or Y single axis view, 88X for both X & Y dual axis view | |||
| Programs | Splicing programs | Max.300 | ||
| Heating programs | Max.100 | |||
| Functions | Loss estimation | Provided | ||
| Splice image capture/ Splice data storage | 64 images/10,000 splice data | |||
| Proof test | 1.96N (200gf) | |||
| Attenuation splicing | 0.1dB to 15dB in 0.1dB increments | |||
| Universal clamps for 250μm, 900μm tight & loose buffer fiber | Provided | |||
| Reversible coating clamps | Provided | |||
| Dual automatic independent heaters | Provided (US patent 7,412,146) | |||
| User-selectable heater clamp operation | Provided | |||
| Onboard user training video | Provided | |||
| Automatic arc calibration | Automatically compensates for environmental condition changes | |||
| Arc test | Provided | |||
| Display of remaining Splice & Heat cycles | Provided (Battery mode) | |||
| Remote interactive maintenance | Provided | |||
| Size/Weight | Size | 120(W)×154(D)×130(H)mm (without anti-shock rubber) | ||
| Weight | 1.8kg (without battery), 2.1kg (with battery) | |||
| Monitor | 4.1" touch screen color LCD display | |||
| Terminals | DC output | DC12V (for JR-6) | ||
| USB port | USB 2.0 (mini-Btype) | |||
| Storage media | SD/SDHC memory card | |||
| Power supply | AC input | 100~240V, 50/60Hz (ADC-1430) | ||
| DC input | 10~15V | |||
| Battery module | Li-ion 11.1V, 4,600mAh (BU-11) | |||
| Operating condition | Altitude:0~6,000m, Temperature: -10~+50°C, Humidity: 0~95% (non-condensing), Wind velocity up to 15m/s | |||
| Storage condition | Temperature: -40~+80°C, Humidity: 0~95% (non-condensing), Battery: -20~+30°C (long term) | |||
| Electrode life | 3,000 arc discharges *3 | |||
- *1:When the fibers used are identical to Sumitomo's fibers.
- *2:Splice & Heat cycles may vary depending on the battery status and the operating environment.
- *3:Electrode life may vary depending on the operating environment.
Environmental Durability*
| Shock resistance | Drop from 76cm on 5 faces (excluding top face) | ||
| Water resistance | Equivalent to IPx2 (Operates normally after being exposed to water dripping at 3mm/min. for at least 2.5min on each of 4surfaces tilted at 15º) | ||
| Dust resistance | Equivalent to IP5x (Operates normally after 8hours in a dust chamber containing dust of particle size 25μm or below) | ||
- *Confirms the battery operation in tests carried out by Sumitomo. Does not guarantee that the product is free of faults or damage.
USA Comway Fusion Splicer C10 is equal to Fujikura FSM-60S and better than Sumitomo Type-81C
1's bootup time
6's splicing time
We can ship to worldwide. Shipping cost around US$120-US$200 to worldwide from China vis UPS, FedEx, DHL and take 2-3 workingd days.
Payment terms
We support T/T, L/C, Cash, Western Union, MoneyGram, Paypal payment terms
Our main products as below:
1. FUSION SPLICER: USA Comway C10; Sumitomo (Type-81C); Fujikura (FSM-80S/70S/70R); Fitel S178A.
2.OTDR: EXFO (FTB-1/AXS-110/AXS-100/ FTB-200/FTB-500); JDSU (MTS-2000/4000/6000/8000); YOKOGAWA (AQ1200/AQ7275)
3. POWER METER (PPM-350C, FPM-300, HSV-300P); LIGHT SOURCE (FLS-300, HSV-300L); VFL (FLS-241, HSV-321); Multi Loss tester (FOT-930, FOT-302)
4. Anritsu site master S331D, S331L, S331E, S332E.
5. Fiber cleaver (CT-30A/CT-30/CT-05/FC-6S), adapter, battery, electrode, connector, fiber tool kits
6. Fiber cable, patch cord, adapter, closure, pigtail, optical switch, patch panel, etc..
7.Maintainance and repair, calibration service for the EXFO, JDSU, Sumitomo, Fujikura, Anritsu
