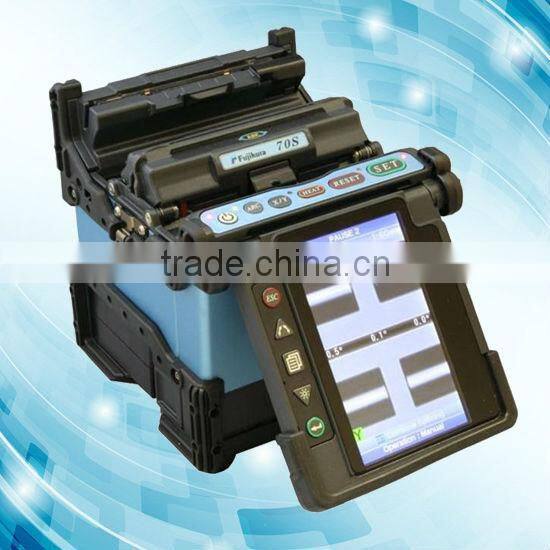

fujikura 70s/80s fusion splicer saudi arabia
Tel:+86-755-36934393
Fax: 0086-755-33503470
Website: www..hk
Skype: kitty.hsv
World’s quickest splicing 7sec./tube-heating 14sec.
Minimal manual operation.splice in 4 steps.

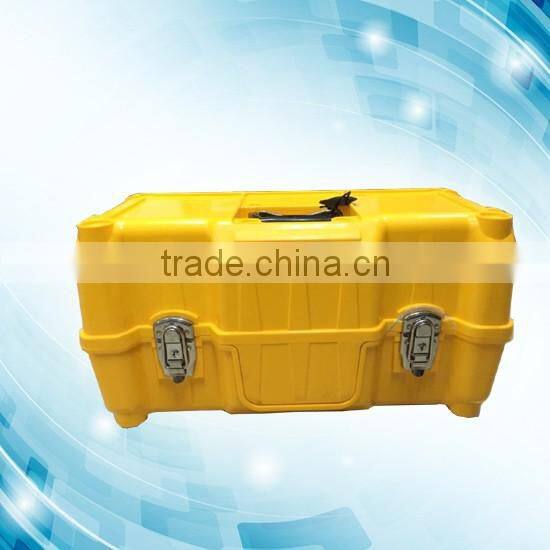

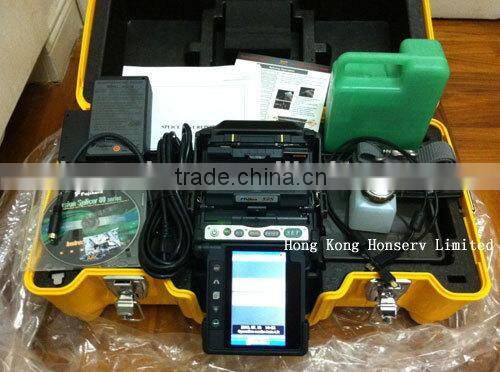

Multi-functional carrying case with integrated work station.
Absolute robustness
SPECIFICATIONS: | |
Applicable fibers |
Single / SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655) |
Cladding dia. |
80-150um |
Cleave length |
5mm to 16mm with sheath clamp |
Splice mode / heating mode |
Total 100 splice modes / 30 heating modes |
Splice loss |
0.02dB (SM), 0.01dB (MM), 0.04dB (DSF) and 0.04dB (NZDS) |
Splice time / tube heating time |
Typical 7sec with SM / Typical 14sec with FP-03 (60mm) sleeve |
Splice result storage |
Last 2000 splices |
Viewing methods / magnification |
2 axis CMOS camera with 4.73” color LCD. X / Y (320X magnification), or both X and Y simultaneously (200X magnification) |
Tension test |
1.96 to 2.25N |
Applicable protection sleeve |
60mm, 40mm and Fujikura micro sleeves |
No. of splice / heating per battery full charge |
Typical 200 cycles with BTR-09 |

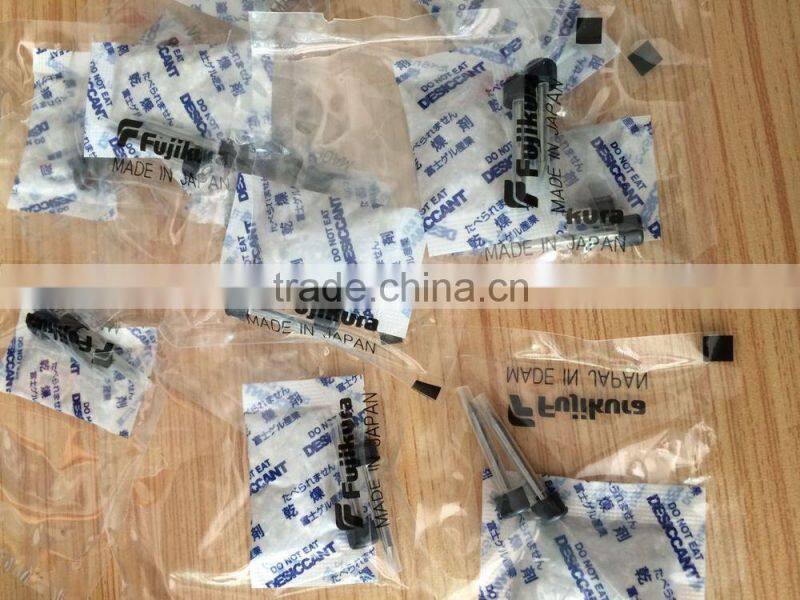

Electrode life |
3000 splices |
Size / weight |
146W x 159D x 150H (mm) / 2.7kg (including battery) |
Operating condition |
Altitude : 0 to 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity : 0 to 95%RH, non-dew |
Resistance features*1 |
Shock : 76cm(30inch) all surface drop Dust : Exposure to dust (0.1 to 500μm dia Alumina Silicate), IP5X Rain : H=10mm/hr for 10min, IPX2 |
Other features |
PC software upgrade / data management |
Terminals |
USB 2.0 (Mini-B type) connector for PC communication. 6-pin Mini-DIN connector for HJS-02 or HJS-03 power supply. |
|
*1:Carried out in Fujikura labs in Japan. The shock resistance, dust resistance and rain resistance test do not guarantee that the product will not be damaged under these conditions
| |
