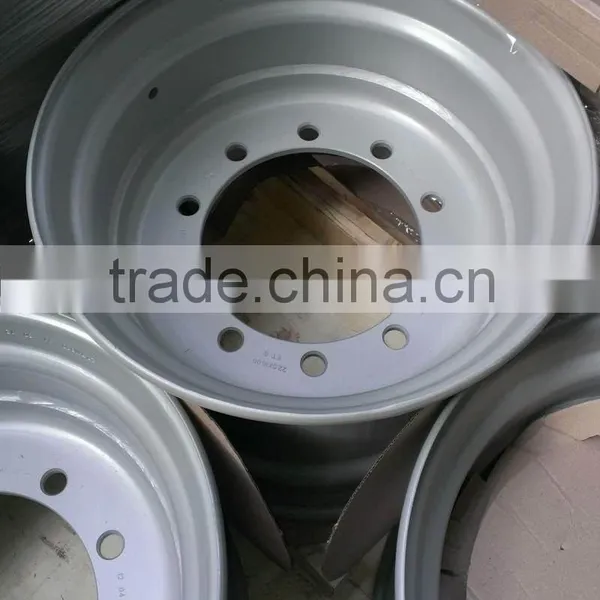

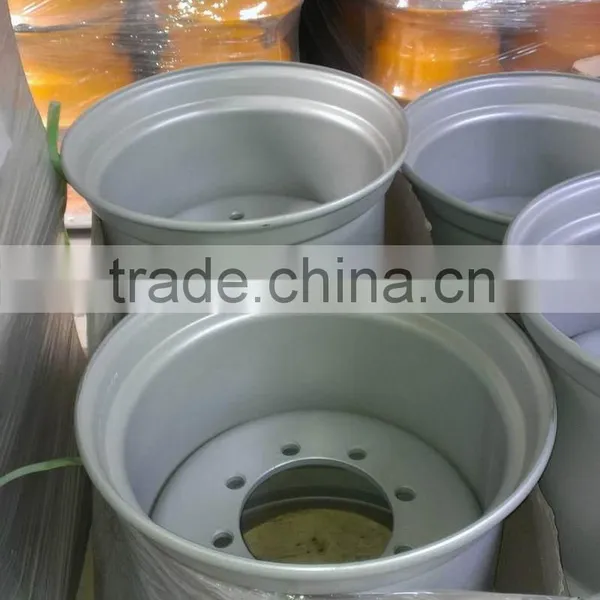

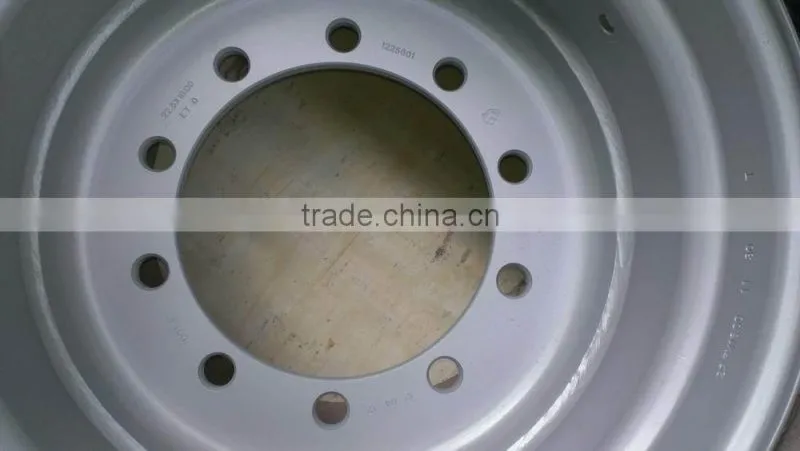

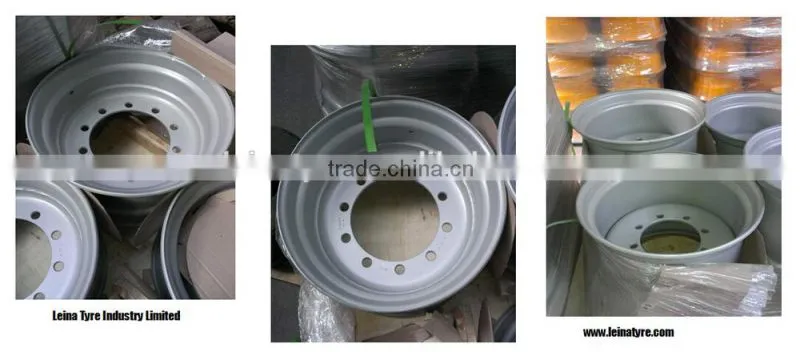

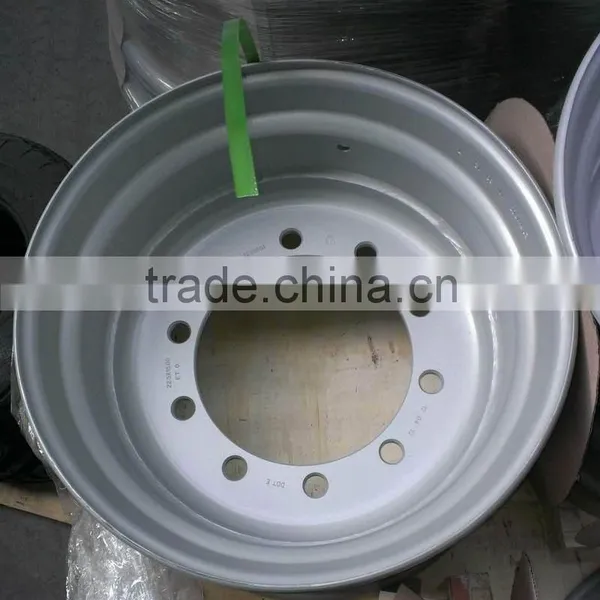

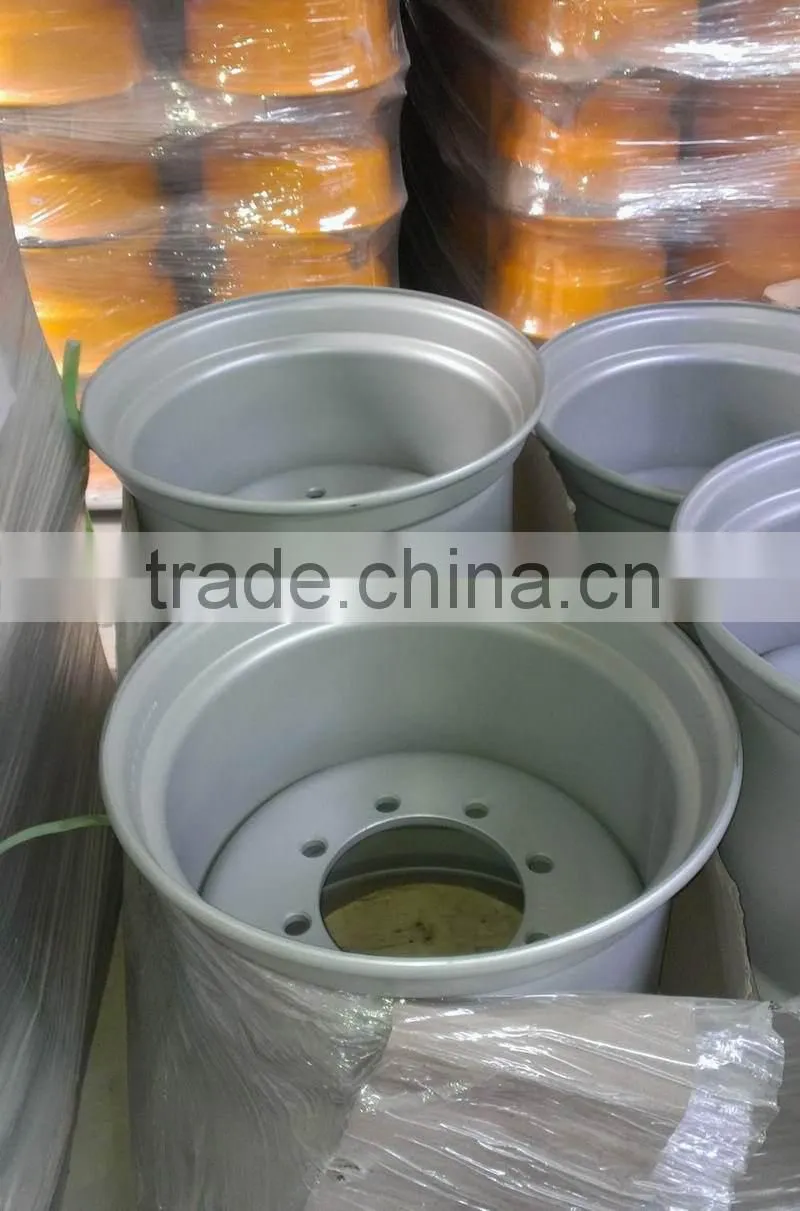

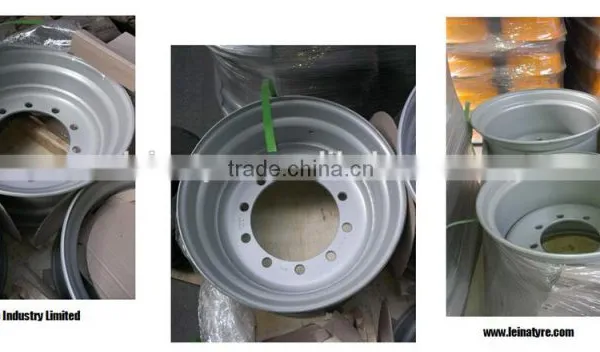

Flotation tyre rim 16.00x22.5 for tyre 550/60-22.5
| Wheel Size | Fitted Tyre | Bolt Hole | P.C.D | C.B.D. | Thickness | Offset | ||
| Number | Dia. | Rim | Disc | |||||
| 16.00x22.5 |
550/45-22.5 500/60-22.5 550/45-22.5 550/60-22.5 550/60-22.5 |
6 | Φ27 | Φ205 | Φ161 | 6 | 12 | 0 |
16.00x22.5 |
8 | Φ27 | Φ275 | Φ221 | 6 | 12 | -30 | |
| 16.00x22.5 | 8 |
Φ27 | Φ335 | Φ281 | 6 | 12 | 0 | |
| 16.00x22.5 | 10 | Φ27 | Φ335 | Φ281 | 6 | 12 | -50 | |
| 16.00x22.5 | 10 | Φ27 | Φ335 | Φ281 | 6 | 12 | 0 | |

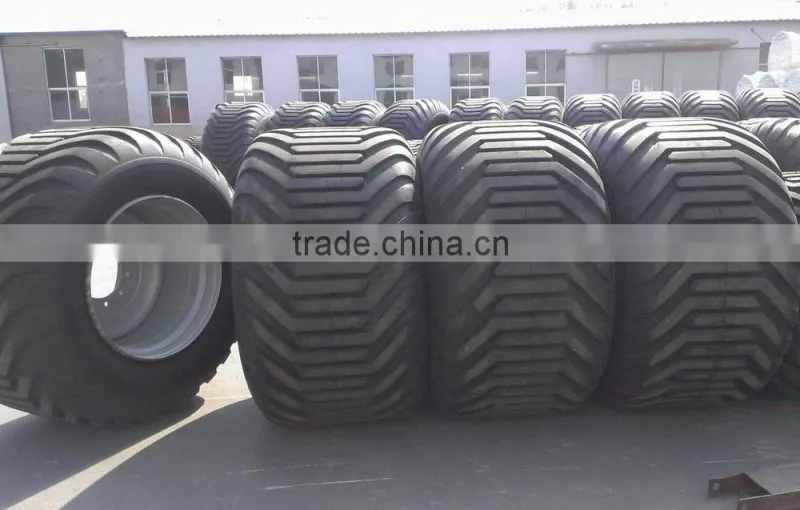

We can assemble the tyre with rim as a set for export:
We have other rims for your options as follows,
| Inch | Description | Wheels | Tyres |
| 15.5" | one-piece 15° DC | 15.5X13.00 | 400/60-15.5 |
| 15.5X16.00 | 500/55-15.5 | ||
| 16.5" | one-piece 15° DC | 16.5X8.25 | 9.50R16.5 10-16.5 |
| 16.5X9.75 | 12-16.5EM 33X12.50R16.5 | ||
| 16.5X12 | 36x14.5-16.5 | ||
| 17.5" | one-piece 15° DC | 17.5X6.00HC | 215/75R17.5 8R17.5 |
| 17.5X6.75HC | 9R17.5 9.5R17.5 | ||
| 17.5X10.5 | |||
| 19.5" | one-piece 15° DC | 19.5X11.75 | 15R19.5 |
| 19.5X6.00 | 8R19.5 | ||
| 19.5X6.75 | 8R19.5 245/70R19.5 235/75R19.5 | ||
| 19.5X7.50 | 10R19.5 265/70R19.5 | ||
| 19.5X8.25 | 285/70R19.5 | ||
| 19.5X13.00 | 15.0X19.5 | ||
| 19.5X14.00 | 425/55R19.5 435/50R19.5 445/45R19.5 18-19.5 MPT | ||
| 22.5" | one-piece 15° DC | 22.5X5.5 | |
| 22.5X6.00 | 8.5R22.5 | ||
| 22.5X6.75 | 9R22.5 | ||
| 22.5X7.50 | 10R22.5 | ||
| 22.5X8.25 | 11R22.5 | ||
| 22.5X9.00 | 12R22.5 315/80R22.5 | ||
| 22.5X9.75 | 315/80R22.5 | ||
| 22.5X11.25 | 15-22.5 15R22.5 16.5/70R22.5 350/60R22.5 365/70R22.5 400/55R22.5 375/90R22.5 385/65R22.5 385/55R22.5 425R22.5 | ||
| 22.5X12.25 | 425/65R22.5 | ||
| 22.5X13.00 | 16.5R22.5 16.5/70R22.5 400/55R22.5 425/65R22.5 | ||
| 22.5X13.5 | 15-22.5 16.5-22.5 | ||
| 22.5X14.00 | 18R22.5 415/45R22.5 425/65R22.5 435/45R55.5 445/75R22.5 | ||
| 22.5X16.00 | 22.5-25.5 500/45-22.5 500/60R22.5 550/45-22.5 550/60-22.5 | ||
| 22.5X20.00 | 600/50-22.5, 600/55-22.5 650-50-22.5 | ||
| 22.5X24.00 | 700/40-22.5 750/45-22.5 | ||
| 24.5" | one-piece 15° DC | 24.5X8.25 | 11R24.5 |
| 24.5X11.75 | 385/55R24.5 385/55R24.5 | ||
| 24.5X13.00 | 16.5R24.5 425/65R24.5 | ||
| 24.5X15.00 | |||
| 26.5" | one-piece 15° DC | 26.5X20.00 | 600/55-26.5 |
| 26.5X24.00 | 700/50-26.5 750/45-26.5 |

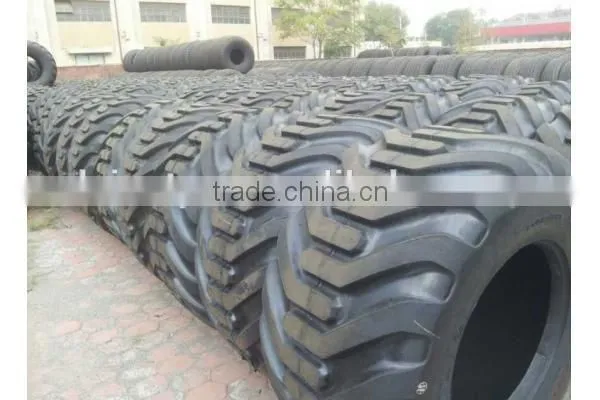

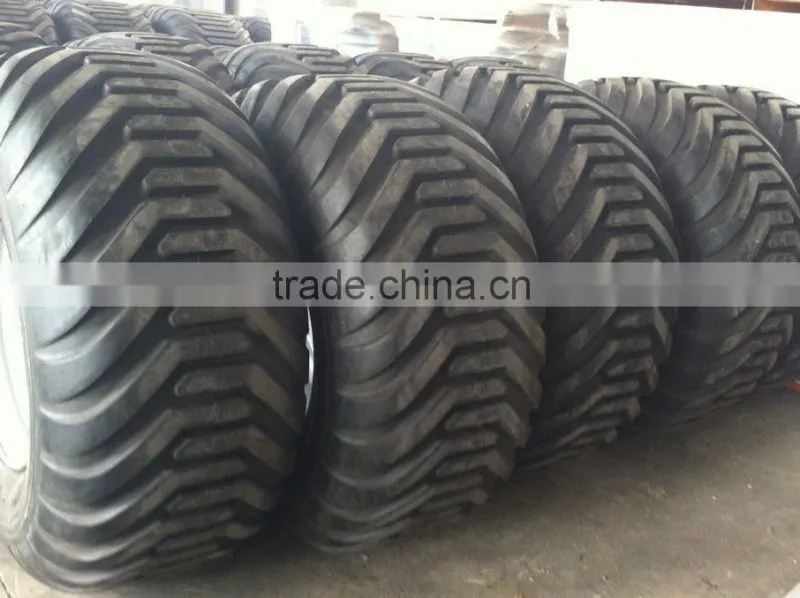

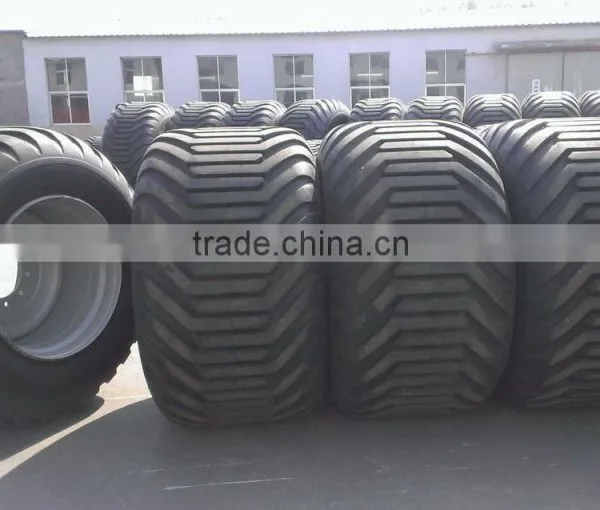

Our flotation tyres for harvester, trailer, tanker,tractor for your option:
| |||||||
Size |
TL/TT |
PLY |
Rim |
OD X SW |
Max Load |
Pressure |
Speed |
400/60-22.5 |
TL |
16 |
11.75x22.5 |
1070x400mm |
4.000kg |
3.5bar |
40km/h |
500/60-22.5 |
TL |
16 |
16.00x22.5 |
1190x500mm |
4.875kg |
3.2bar |
40km/h |
550/60-22.5 |
TL |
16 |
16.00x22.5 |
1235x550mm |
5.450kg |
2.8bar |
40km/h |
550/45-22.5 |
TL |
16 |
16.00x22.5 |
1080X542mm |
4.375kg |
2.8bar |
40km/h |
600/50-22.5 |
TL |
16 |
20.00x22.5 |
1170x600mm |
4.375kg |
2.0bar |
40km/h |
700/40-22.5 |
TL |
16 |
24.00x22.5 |
1170x700mm |
4.500kg |
1.7bar |
40km/h |
600/55-26.5 |
TL |
16 |
20.00x26.5 |
1333x600mm |
5.800kg |
2.6bar |
40km/h |
700/50-26.5 |
TL |
16 |
24.00x26.5 |
1333x700mm |
5.800kg |
1.8bar |
40km/h |
800/45-26.5 |
TL |
16 |
28.00x26.5 |
1343x800mm |
6.000kg |
1.7bar |
40km/h |
650/65-30.5 |
TL |
16 |
20.00x30.5 |
1650x650mm |
7750kg |
2.2bar |
40km/h |
750/60-30.5 |
TL |
16 |
24.00x30.5 |
1650x750mm |
8500kg |
2.2bar |
40km/h |
850/50-30.5 |
TL |
16 |
28.00x30.5 |
1650x850mm |
9.500kg |
2.2bar |
40km/h |
Company Information
Our Leina Tyre is among the major tyre manufacturers and exporters in China with a history of international cooperation and shared technologies. Leina Tyre has an annual capacity of more than 3 million radial truck tyres(TBR), 3 million passenger car (PCR)& light truck(LTR) & SUV tyres (4X4), 80,000 Radial and bias off the road tyres (OTR), together with 600,000 Agricultural & Industrial tyres .
With more than 10 years export experience, Leina products already exported to about 50 countries covering American, European, Australian, Middle East & African markets by meeting all the internationally required manufacturing standards including the national CCC certification, ISO 9001,ISO16949, DOT(USA) and ECE (EUROPE), SONCAP(NIGERIA),GCC(GULF) and COC certificates etc . Additionally, we produce products that meet the exact requirements of the world’s leading manufacturers and distributors. Our experienced technical and management teams ensure that all tyres are continuously tested and developed to ensure a constant product performance.
Leina Tyre Industry Limited
Qingdao Leina Tyre Co., Ltd.
Skype: leinatyre
We will be your best and reliable partner!
