Help CenterHot Sell 2-8Ton Full Electric Forklift Truck
Related Products
1.5ton electric forklift truck with Japanese engine sell well in Dubai

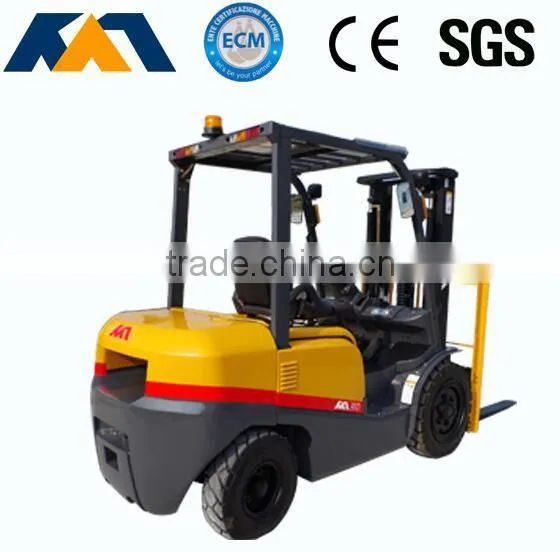

3.5ton Diesel forklift standard configurations:
--Model FD35T, load capacity 3500kg
--Equipped with Hydraulic transmission
--Standard with 2-stage wide view mast
--Japanese engine ISUZU C240, Mitsubishi, Nissan K25
--Pneumatic tires, 1070mm forks, Safety seat with steady belt, free tool box and spare parts.
--Back-up buzze, rearview mirror, full set of lights and so on.
The new design continues TCM style, attached with better operation functions like:
Vibration 20% reduced
Noise 3dB reduced.
Noise is reduced by moving down the tilting cylinder under floor.
The buffer device inside lifting system reduce the crash and vibration of mast and avoids making noises whilegoods falling on the ground.
Work efficiency 20% improved
Small turning radius makes the steering flexible and easy.
Fast lifting speed and good grade ability improve the work efficiency.
High working efficiency makes the truck capable to work in different work conditions wherever at port, dock or railway station.
Stability 5% improved
Reliability 40% improved
The optimal design of key parts like frame, mast, overhead guard and steering axle makes the whole truck more safe and reliable.
The retroposition of the whole trucks's gravity center improves the load capacity, stability and safe.
Workplace 45% increased
The operating space is enlarged by heightening overhead guard and using large arc shape on the front leg overheadguard.
| CPCD30 | ||||||
| POWER UNIT | DIESEL | |||||
| LOAD CAPACITY | kg | 3000 | ||||
| LOAD CENTER | mm | 500 | ||||
| SERVICE WEIGHT | kg | 4280 | ||||
| STANDARD LIFT HEIGHT | 3000 | |||||
| LENGTH TO FORK FACE | mm | 2740 | ||||
| OVERALL WIDTH (STANDRD/DOUBLE FRONT TYRE) | mm | 1230/1710 | ||||
| HEIGHT OF OVERHEAD GUARD | mm | 2105 | ||||
| AISLE WIDTH WITH PALLET | mm | 4155 | ||||
| 1000*1200 ACROSS FORKS | ||||||
| TURNING RADIUS | mm | 2500 | ||||
| TRAVEL SPEED, WITH/WITHOUT LOAD | km/h | 17/18 | ||||
| ENGINE FOR OPTION | JAC | ISUZU | VM | |||
| 4DC1 | C240PKJ-30 | 753IE4 | ||||
| ENGINE BRAND | JAC | ISUZU | VM | |||
| FUEL TYPE | DIESEL | DIESEL | DIESEL | |||
| ENGINE TYPE | 4DC1 | C240PKJ-30 | 753IE4 | |||
| RATED POWER | 45/2500 | 35.4/2500 | 50/2500 | |||
| MAX.TORQUE | 185/1600 | 137.7/1800 | 250/1800 | |||
| NUMBER OF CYLINDERS/DISPLACEMENT(L) | 4/3.059 | 4/2.369 | 3/2.2 | |||
| BORE * STROKE (mm) | 94.5*107 | 86*102 | 94*107 | |||
| EMISSION REGULATION | EC STAGE 3A | EC STAGE 3 | EC STAGE 3B | EC STAGE 3A | ||

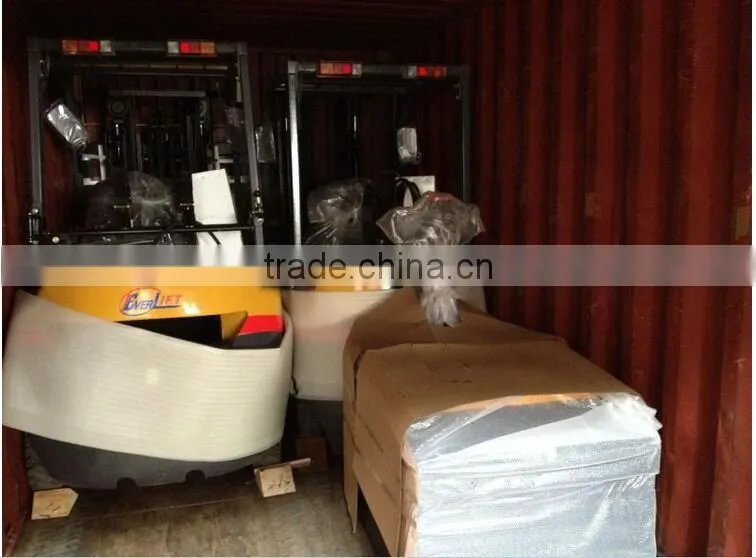

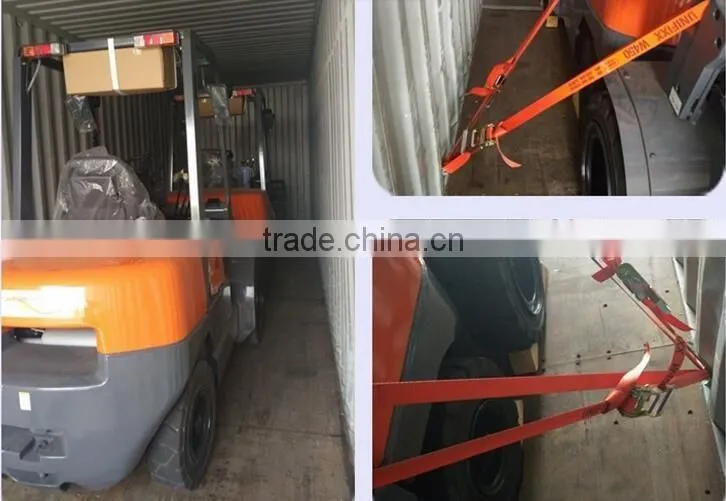

Standard Export Packing Form,and the goods can be delivered within 20 days after get the deposit.
1. Stream-line design: Exclusive streamline design, fashionable and spirituality.
2. Powerful Engine: Equip with high performance and quality engine: ISUZU, VM, YANMAR, MITSUBISHI, KUBOTA
3. High performance shell hydraulic oil: Protect key spare parts and prolong working life.

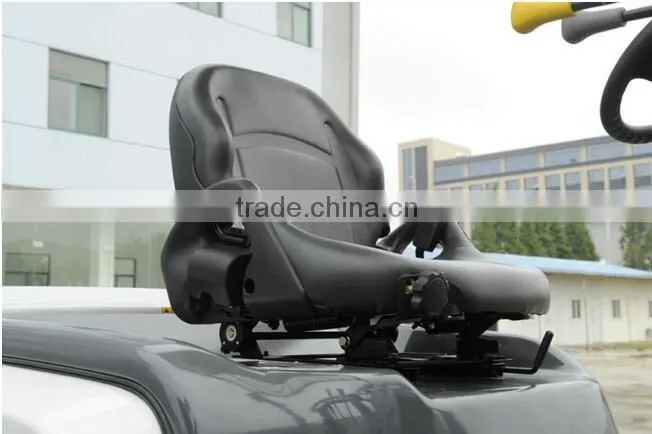

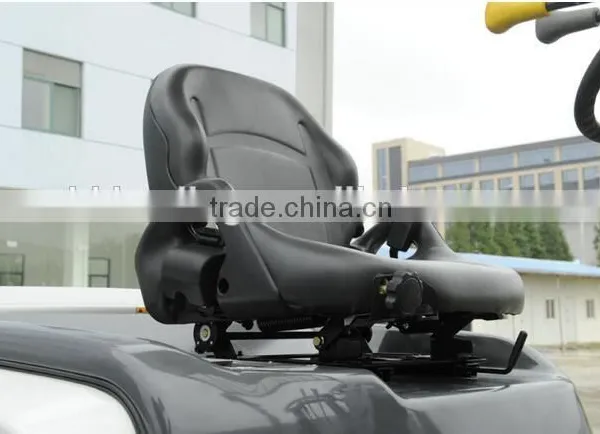

4. Safety belt seat: Safe, comfortable and equip with warning system without fasten seat belt.
5. High exhaust fans: Provide better working environment for operator.
6. Integrated overhead guard: Well protect the operator
7. Hydraulic shift and key-switch type flame-out device: Operation and flame-out more easier.
8. Up market meter and car parking type brake: Totally enclosed car type meter desk, car parking type brake save effort for operation.
9. Side shifter: Standard equip with side shifter, operation more easier and improve work efficiency.

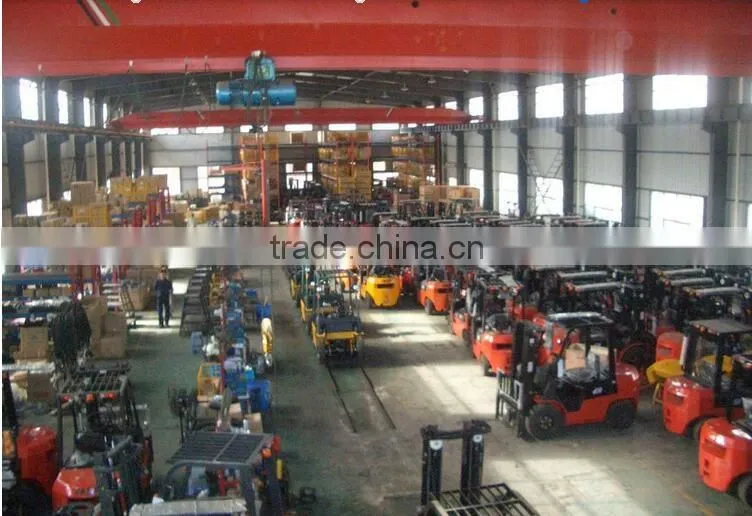

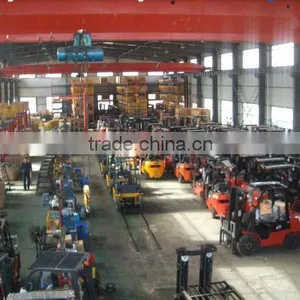

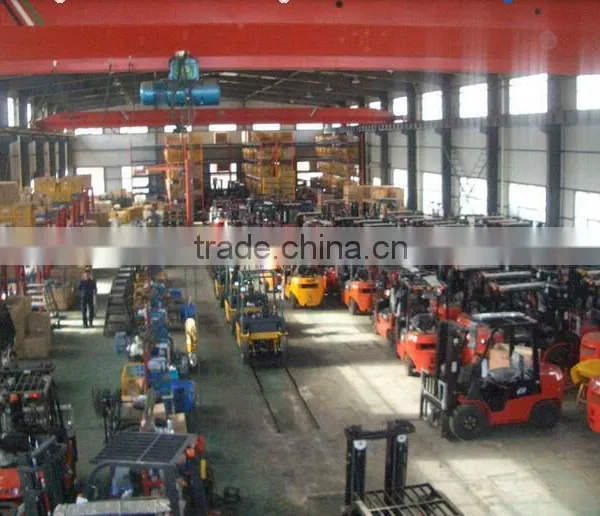

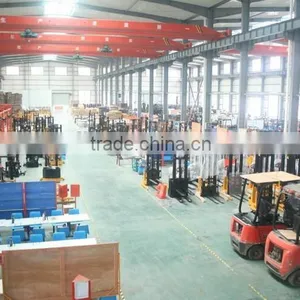

With 20 years experience in the field of engineering industry also under the support by XCMG which is the No. 1 Chinese construction machinery manufacturer, our products has been well recognized by the customers all around the world as the symbol of reliable performance, competitive price, advanced technology and sincere services.

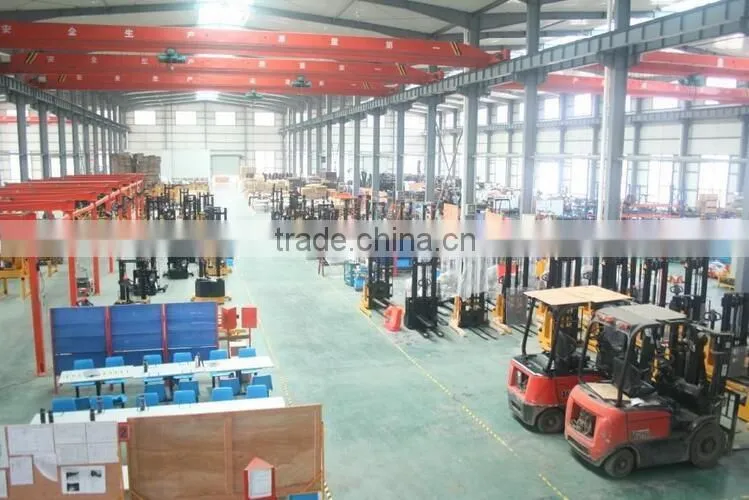

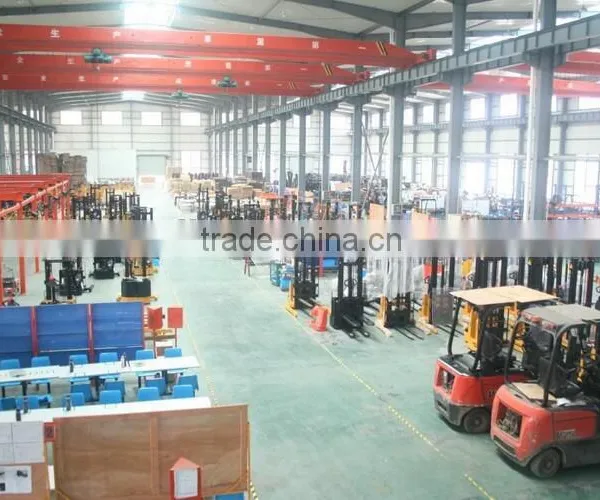

Our Well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfactions, we could also offer OEM services.
Sales Personnel: Eric
Tel: 0086-579-85178474
Mobile:15306790381
Skype:bkleading
Any comment&question,please contact with us freely.
We will try our best to meet your request.
Thanks for your valuable time!
