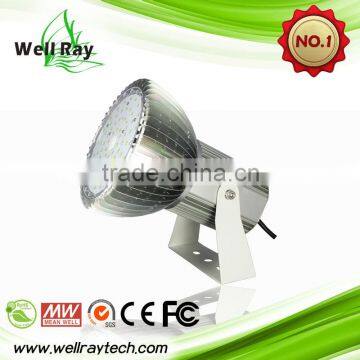

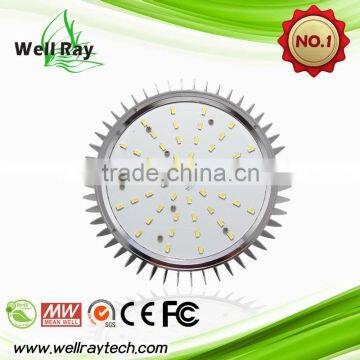

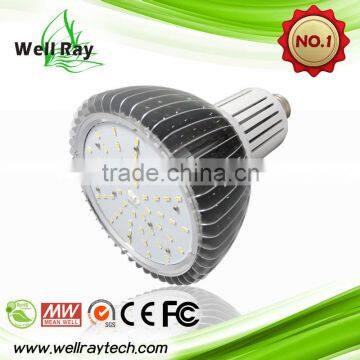

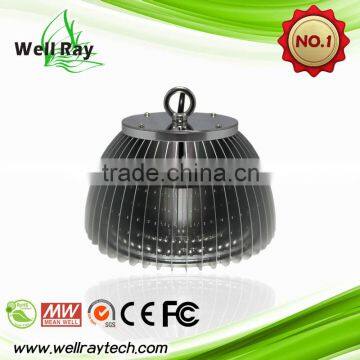

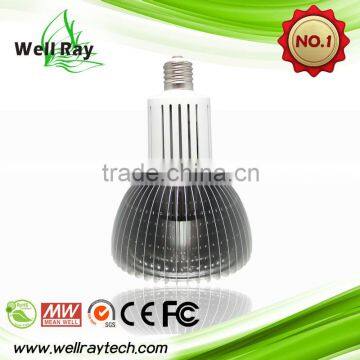

New Arrival Industrial Warehouse E40 60W 90W 100W led canopy light
- 2000 Set / Sets per Month
- Kaohsiung Taiwan
- T/T Credit Card
- Hishine 80W X1 LED Linear Strip Light Led High Bay Lights
- Replacement E26 E27 Bulb High Bay LED Lights (75W)
- Replacement E26 E27 Bulb High Bay LED Lights (60W)
- Replacement E26 E27 Bulb High Bay LED Lights (45W)
- Replacement E26 E27 Bulb High Bay LED Lights (30W)
- Replacement E39 E40 CREE High Bay LED Lights (30-400W)
Product Details
LED Light Source: | CREE/NICHIA | Warranty(Years): | 2 | Input Voltage(V): | 90~264 VAC |
Lamp Power(W): | 60 | Lamp Luminous Flux(lm): | 6600 | Lamp Luminous Efficiency(lm/w): | 110 |
Color Temperature(CCT): | Cool White | Working Temperature(℃): | -20, 50 | Working Lifetime(Hour): | 50000 |
Lamp Body Material: | Aluminum | IP Rating: | IP54 | Certification: | CE, UL |
Place of Origin: | Taiwan | Brand Name: | Well Ray Tech | Model Number: | LLB |
Product Description
New Arrival Industrial Warehouse E40 60W 90W 100W led canopy light :
Well Ray's Website
< Product Features >
- Universal input voltage from AC90~264.
- Pass 8000V Hi-pot and 4000V surge testing
- Constant DC working voltage during operation
- Power supply UL/TUV/PSE/CE/RoHS approval
- Applications: Indoor/Outdoor lighting use,factory, warehouse, stadium, parking lots, and shopping mall.
CE ROSH MIT Industrial Warehouse 60W 90W 100W LED Low Bay:
< Product Parameter >
| 60W LED High Bay | 90W LED High Bay | 100W LED High Bay |
Voltage | 90~264 Vac | ||
MAX Voltage | 305Vac | ||
Current | <0.6A±10% | <0.9A±10% | <1.0±10% |
Frequency | 50 ~ 60 Hz | ||
Power Consumption | 60w ±10% | 90w ±10% | 100w ±10% |
Power Factor | > 0.9 | ||
Protection Temperature | > 95°C | ||
Operating Life | >50,000 hours | ||
Color Temp | 2700~3300 / 5300~6500 K | ||
Lumen Flux | >6600 lm±10% | >9900 lm±10% | >11000 lm±10% |
CRI | Cool White >75 / Warm White >80 | ||
Viewing Angle | 140 ° | ||
Weight | 3.2 kg | 3.5 kg | 3.5 kg |
Socket Type | E39/E40 | ||
Operation Temperature | -20~50 °C | ||
Storage Temperature | -40~60 °C | ||
Operation Humidity | 10~90 % | ||
Warranty | 2 years |
Step 1 | Inquiry: Send us an inquiry including item number, style, watt, and quantity via email, tradeManager or QQ: 2937169671, Skype: wellraytech. We will respond to your inquiry as soon as possible. |
Step 2 | Provide samples: If you need samples of items before making a purchase, we can provide you samples. However, you should pay for the sample plus freight fee. If you buy large quantity, we can deduct this sample fee from the order amount. |
Step 3 | Place an order: You may place an order by sending us your order via email for fax: 886-8-7513940. |
Step 4 | Confirm PI and make the payment: After we receive the order, PI will be sent for you to confirm. Then you arrange the payment to us.
|
Step 5 | Production: We will start the production after receipt 100% payment. |
Step 6 | Delivery: We ship the goods via Air Express (door to door) not including import tax or SEA shipment. Air Express: DHL, GDA, EMS, OCS and FedEx. |
Step 7 | After-sale service: Feel free to let us know if there are any questions with the product. We will make sure our customers are satisfied with their order.
|
Well Ray Technology Ltd is started by a R&D team from optical, institutions, electronic fields. We focus on quality, innovation and efficiency. The most principle is to pursue high quality to meet customers’ request. Well Ray’s product lines has two groups-LED Lighting and Car parts/accessories. We hope that Well Ray’s products can let your life be better.
< Package Details >
Item | Carton Size | Net Weight | Gross Weight |
60W LED High Bay | 250 × 250 × 340 mm | 1.5 kg | 2.3 kg |
90W LED High Bay | 250 × 250 × 340 mm | 1.5 kg | 2.3 kg |
100W LED High Bay | 250 × 250 × 340 mm | 1.5 kg | 2.3 kg |
Ring Type-Power Supply Inside:
Item | Carton Size | Net Weight | Gross Weight |
60W LED High Bay | 250 × 250 × 340 mm | 1.7 kg | 2.5 kg |
90W LED High Bay | 250 × 250 × 340 mm | 1.95 kg | 2.95 kg |
100W LED High Bay | 250 × 250 × 340 mm | 1.95 kg | 2.95 kg |
Ring Type-Power Supply Outside:
Item | Carton Size | Net Weight | Gross Weight |
60W LED High Bay | 250 × 250 × 340 mm | 2.2 kg | 3.2 kg |
90W LED High Bay | 250 × 250 × 340 mm | 2.5 kg | 3.5 kg |
100W LED High Bay | 250 × 250 × 340 mm | 2.5 kg | 3.5 kg |
Stand Type:
Item | Carton Size | Net Weight | Gross Weight |
60W LED High Bay | 250 × 250 × 340 mm | 2.7 kg | 3.7 kg |
90W LED High Bay | 250 × 250 × 340 mm | 2.8 kg | 3.8 kg |
100W LED High Bay | 250 × 250 × 340 mm | 2.8 kg | 3.8 kg |
1. How many is the MOQ for New Arrival Industrial Warehouse E40 60W 90W 100W led canopy light ?
There is no MOQ request. However, if you request SEA shipment, 1 pallet can load 80 sets.
2. Can I get samples?
Yes, please provide the item you need and your air express account. If you don't have air express account, then leave your full shipping address. We can evaluate the shipping cost for you. After you confirm the sample PI and finish payment, then we will send out the sample to you.
3. Can I have customized products?
Yes, please send us the drawing and request quantity you will order and then we will offer you the roughly cost for your reference.
4. How long is the lead time? It will take around 30 working days. If you're urgent to get the goods, please discuss us in advance.
