New Arrival Supermarket Stadium Indoor 60W 90W 100W Indoor Flood Lights

Name: New Arrival Supermarket Stadium Indoor 60W 90W 100W Indoor Flood Lights
Brand: Well Ray Tech
Availability: InStock

FOB Price

US$ 85 - 130 / Piece

1 Piece(Min. Order)

Port Kaohsiung Taiwan
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

LED Light Source	CREE/NICHIA	Warranty(Years)	2
Input Voltage(V)	90~264 VAC	Lamp Power(W)	60
Lamp Luminous Flux(lm)	6600	Lamp Luminous Efficiency(lm/w)	110
Color Temperature(CCT)	Cool White	Working Temperature(℃)	-20, 50
Working Lifetime(Hour)	50000	Lamp Body Material	Aluminum
IP Rating	IP55	Certification	CE, UL
Place of Origin	Taiwan, China	Brand Name	Well Ray Tech
Model Number	LLB

Product Description

New Arrival Supermarket Stadium Indoor 60W 90W 100W Indoor flood lights :

Well Ray's Website

Product Description

< Product Features >

Universal input voltage from AC90~264.
Pass 8000V Hi-pot and 4000V surge testing
Constant DC working voltage during operation
Power supply UL/TUV/PSE/CE/RoHS approval
Applications: Indoor/Outdoor lighting use,factory, warehouse, stadium, parking lots, and shopping mall.

New Arrival Supermarket Stadium Indoor 60W 90W 100W Indoor flood lights :

< Product Parameter >

	60W LED High Bay	90W LED High Bay	100W LED High Bay
Voltage	90~264 Vac
MAX Voltage	305Vac
Current	<0.6A±10%	<0.9A±10%	<1.0±10%
Frequency	50 ~ 60 Hz
Power Consumption	60w ±10%	90w ±10%	100w ±10%
Power Factor	> 0.9
Protection Temperature	> 95°C
Operating Life	>50,000 hours
Color Temp	2700~3300 / 5300~6500 K
Lumen Flux	>6600 lm±10%	>9900 lm±10%	>11000 lm±10%
CRI	Cool White >75 / Warm White >80
Viewing Angle	140 °
Weight	3.2 kg	3.5 kg	3.5 kg
Socket Type	E39/E40
Operation Temperature	-20~50 °C
Storage Temperature	-40~60 °C
Operation Humidity	10~90 %
Warranty	2 years

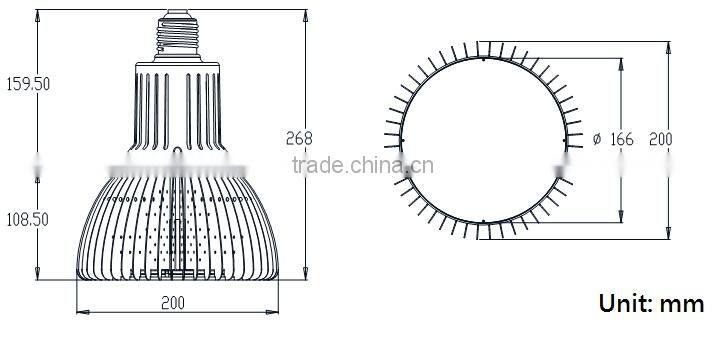

< Dimension Diagram >

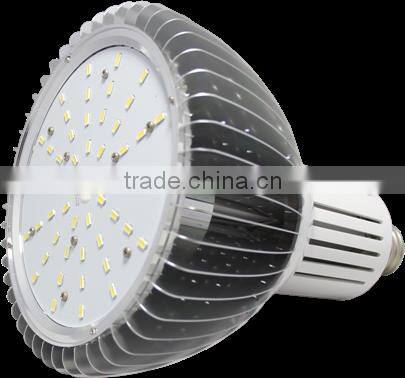

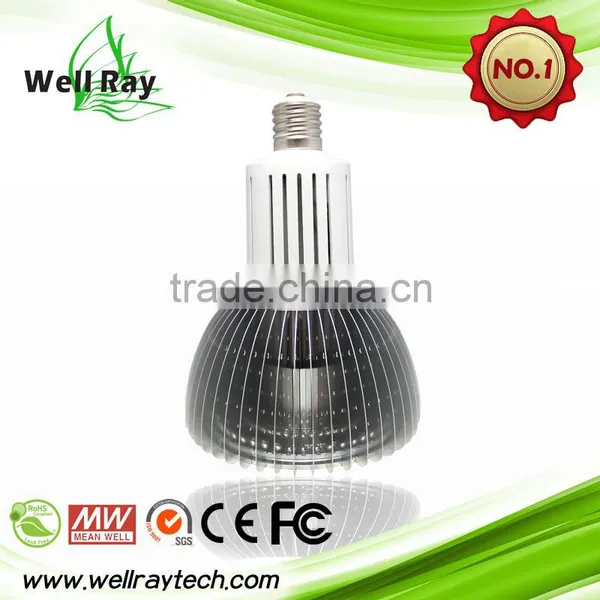

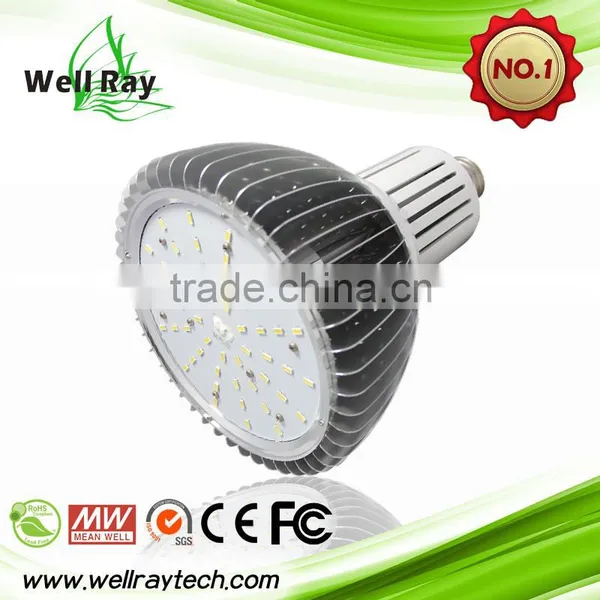

E39/E40 Type:

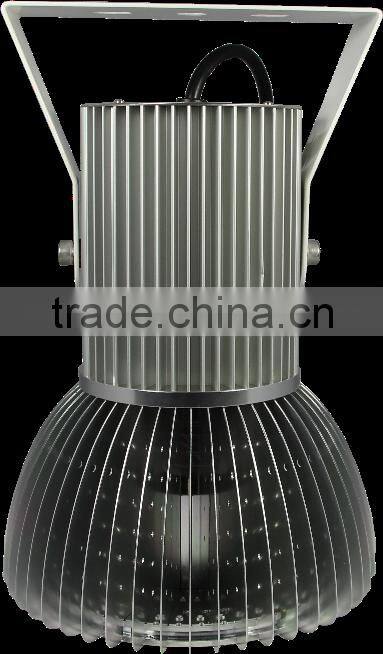

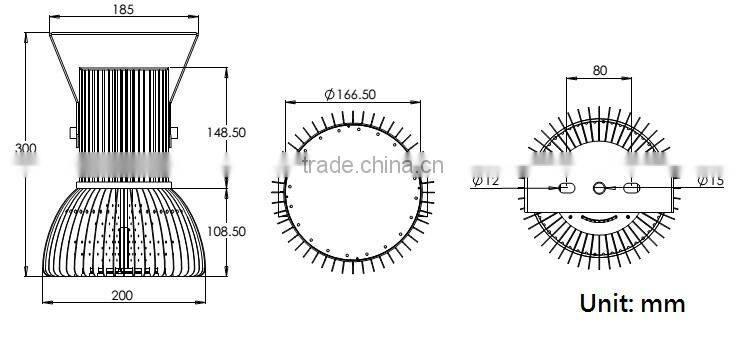

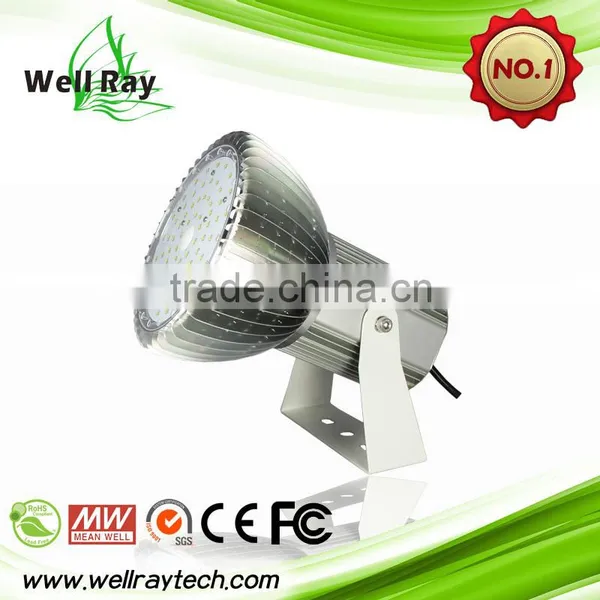

Stand Type:

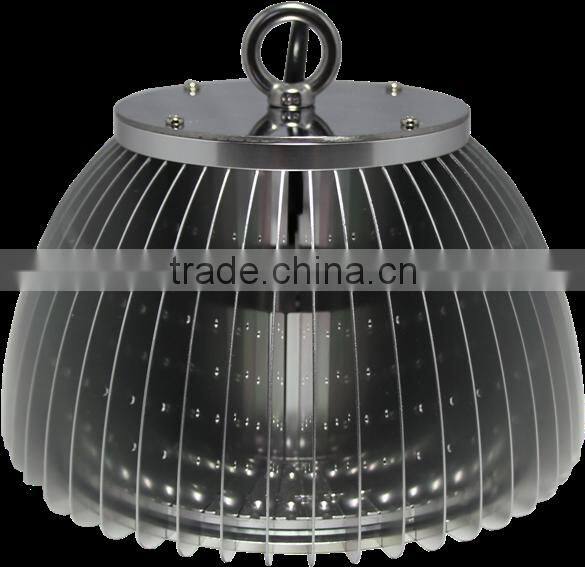

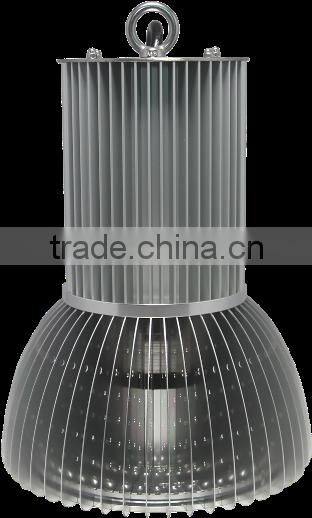

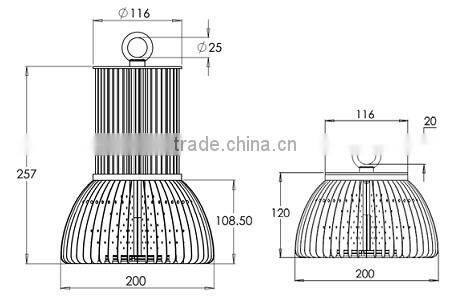

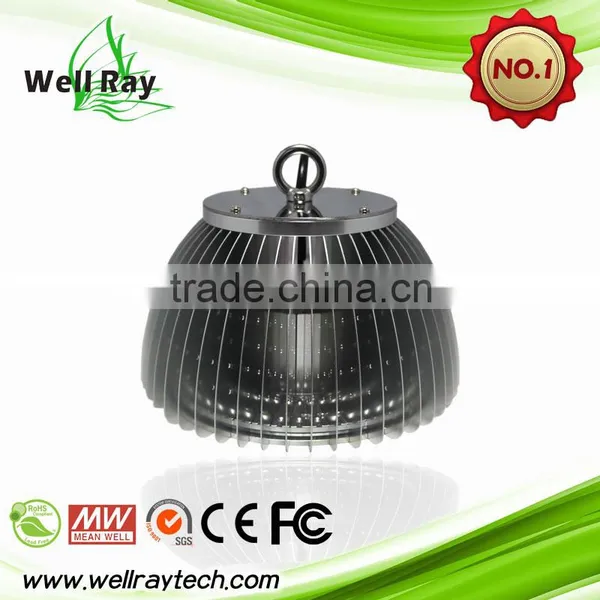

Ring Type:

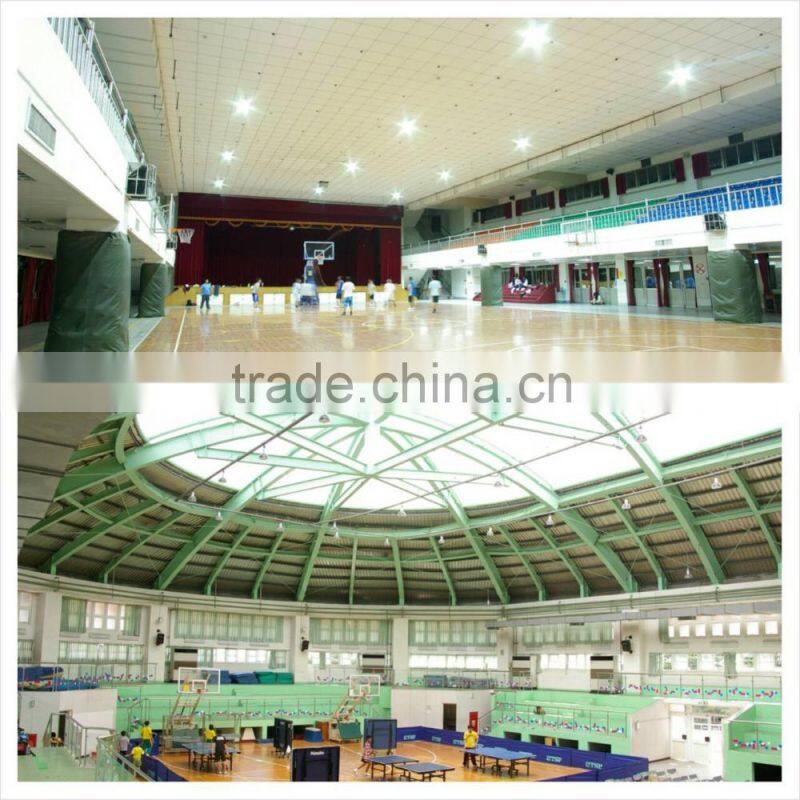

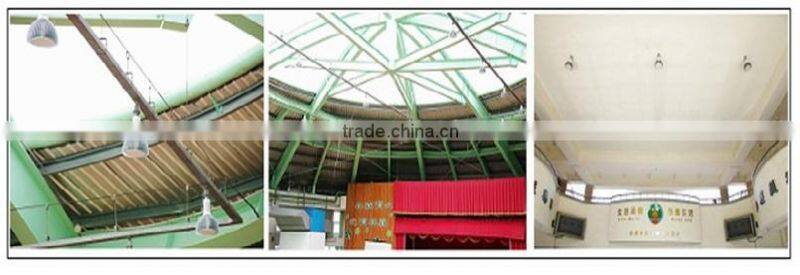

Application

Trading Process

Step 1	Inquiry: Send us an inquiry including item number, style, watt, and quantity via email, tradeManager or QQ: 2937169671, Skype: wellraytech. We will respond to your inquiry as soon as possible.
Step 2	Provide samples: If you need samples of items before making a purchase, we can provide you samples. However, you should pay for the sample plus freight fee. If you buy large quantity, we can deduct this sample fee from the order amount.
Step 3	Place an order: You may place an order by sending us your order via email for fax: 886-8-7513940.
Step 4	Confirm PI and make the payment: After we receive the order, PI will be sent for you to confirm. Then you arrange the payment to us.
Step 5	Production: We will start the production after receipt 100% payment.
Step 6	Delivery: We ship the goods via Air Express (door to door) not including import tax or SEA shipment. Air Express: DHL, GDA, EMS, OCS and FedEx.
Step 7	After-sale service: Feel free to let us know if there are any questions with the product. We will make sure our customers are satisfied with their order.

Company Information

Well Ray Technology Ltd is started by a R&D team from optical, institutions, electronic fields. We focus on quality, innovation and efficiency. The most principle is to pursue high quality to meet customers’ request. Well Ray’s product lines has two groups-LED Lighting and Car parts/accessories. We hope that Well Ray’s products can let your life be better.

Our Advantages

1. Made in Taiwan.

2. Strong R&D capability.

3. 100% products inspection.

4. High manufacturing capacity and prompt delivery.

5. High Quality with competitive price.

6. Good service and after-sale services.

Certifications

Shipping Methods

< Package Details >

E40 Type:

Item	Carton Size	Net Weight	Gross Weight
60W LED High Bay	250 × 250 × 340 mm	1.5 kg	2.3 kg
90W LED High Bay	250 × 250 × 340 mm	1.5 kg	2.3 kg
100W LED High Bay	250 × 250 × 340 mm	1.5 kg	2.3 kg

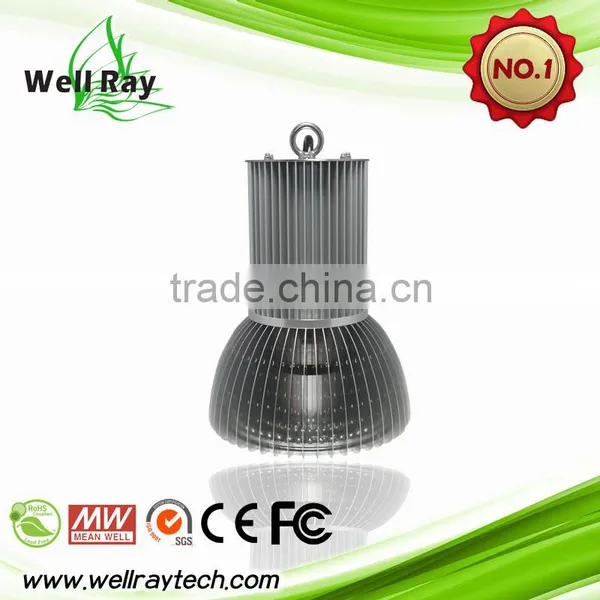

Ring Type-Power Supply Inside:

Item	Carton Size	Net Weight	Gross Weight
60W LED High Bay	250 × 250 × 340 mm	1.7 kg	2.5 kg
90W LED High Bay	250 × 250 × 340 mm	1.95 kg	2.95 kg
100W LED High Bay	250 × 250 × 340 mm	1.95 kg	2.95 kg

Ring Type-Power Supply Outside:

Item	Carton Size	Net Weight	Gross Weight
60W LED High Bay	250 × 250 × 340 mm	2.2 kg	3.2 kg
90W LED High Bay	250 × 250 × 340 mm	2.5 kg	3.5 kg
100W LED High Bay	250 × 250 × 340 mm	2.5 kg	3.5 kg

Stand Type:

Item	Carton Size	Net Weight	Gross Weight
60W LED High Bay	250 × 250 × 340 mm	2.7 kg	3.7 kg
90W LED High Bay	250 × 250 × 340 mm	2.8 kg	3.8 kg
100W LED High Bay	250 × 250 × 340 mm	2.8 kg	3.8 kg

FAQ

1. How many is the MOQ for New Arrival Supermarket Stadium Indoor 60W 90W 100W Indoor flood lights ?

There is no MOQ request. However, if you request SEA shipment, 1 pallet can load 80 sets.

2. Can I get samples?

Yes, please provide the item you need and your air express account. If you don't have air express account, then leave your full shipping address. We can evaluate the shipping cost for you. After you confirm the sample PI and finish payment, then we will send out the sample to you.

3. Can I have customized products?

Yes, please send us the drawing and request quantity you will order and then we will offer you the roughly cost for your reference.

4. How long is the lead time? It will take around 30 working days. If you're urgent to get the goods, please discuss us in advance.
