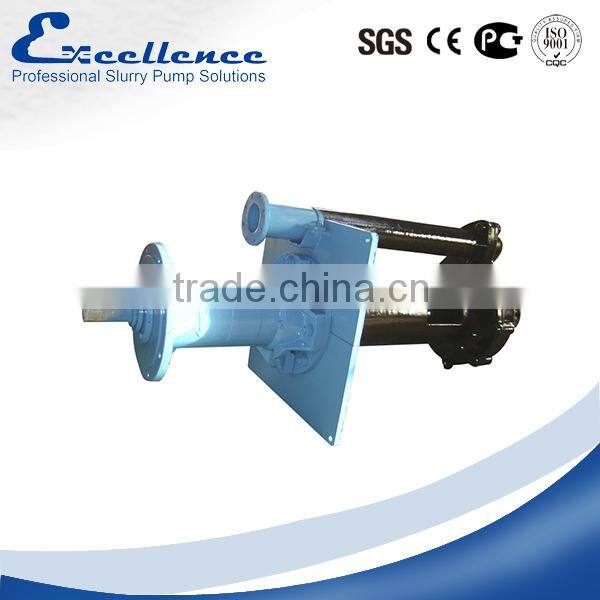

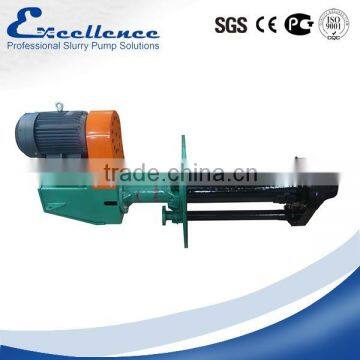

Pompe Centrifuge a Eau Usagee/Centrifugal Slurry Pump

1.1 Application:

Series EVR sump slurry pumps are widely used in the mining, coal washery, power plant, metallurgy,

petrochemical, building material, dredging and other industrial departments, etc.

EVR series slurry pumps are also designed to transport slurry in the pool but differ from EVM series

in the material of wet parts. EVR series has excellence performance in handling high corrosive slurries without shape edge.

1.2  Feature:

Outlet: 40-300mm
Capacity: to 1548 m³/h
Head: to 40 m
Type: Centrifugal, Vertical, single Casing
Wet Parts Materials: Natural rubber
Replacement: Interchangeable with other pumps dimensionally

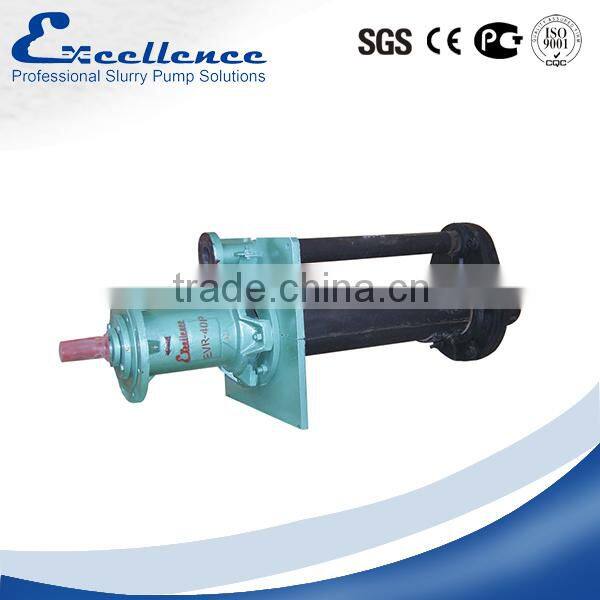

1.3 Model Explanation:  EVR-40P

E: Excellence brand

V: Vertical

R: Metal lined

40: Discharge diameter (mm)

P: Frame type with maximum power

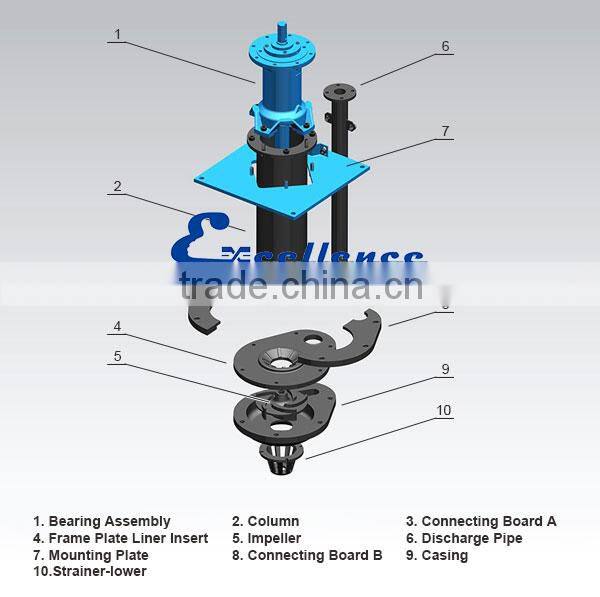

1.4 Structure:

Material

The wear parts material for EVR series is natural rubber. With superb anti-corrosive performance, it

is ideal for the delivery of strong corrosive slurry without sharp edge.

Shaft Seal

According to the depth of pools’ liquid level, shaft length and suction pipe of different sizes are

available.

1.5 Parameters and Selection:
