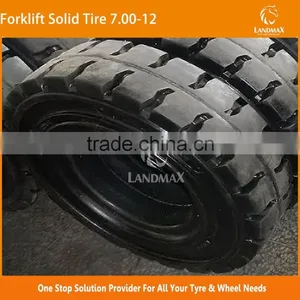

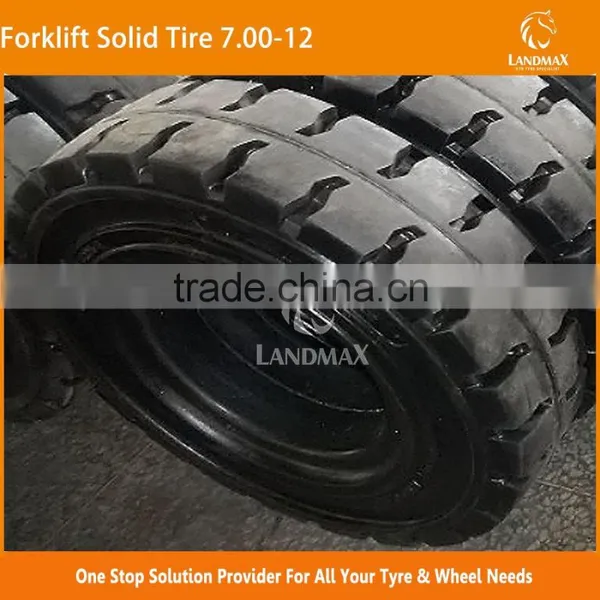

Black High Resilience Click Forklift Tire 700-12
1. Two or Three stages steel reinforced construction.
2. Environmental friendly, low starting resistance and maintenance free
3. High Load capacity and operate comfortably.
Technical parameter and Picture for click forklift tires 700-12
| Tyre Size | Standard Rim | Pattern NO. | Type | Section Width | Overall Diameter |
| (inch) | Standard/Click | (mm) | (mm) | ||
| 7.00-12 | 5.00S | LM-201 LM-202 LM-205 | Standard/Click | 180 | 643 |
Other sizes with technical data for forklift tires
| Tyre Size | Standard Rim | Pattern NO. | Type | Section Width | Overall Diameter |
| (inch) | Standard/Click | (mm) | (mm) | ||
| 4.00-8 | 3.00D | LM-203 | Standard | 101 | 404 |
| 3.75 | 121 | 420 | |||
| 5.00-8 | 3.00D | LM-201 LM-202 | Standard/Click | 125 | 447 |
| 15*4.1/2-8 | 3.00D | LM-201 LM-202 | Standard/Click | 104 | 380 |
| 3.25l | LM-201 | Standard | |||
| 16X6-8 | 4.33R | LM-201 | Standard/Click | 146 | 406 |
| 18X8-7 | 4.33R | LM-201 LM-202 | Standard/Click | 160 | 441 |
| 6.00-9 | 4.00E | LM-201 LM-202 LM-205 | Standard/Click | 153 | 516 |
| 7.00-9 | 5.00S | LM-201 | Standard | 165 | 570 |
| 21X8-9 | 6.00E | LM-201 | Standard/Click | 200 | 532 |
| 6.50-10 | 5.00F | LM-201 LM-202 LM-205 | Standard/Click | 161 | 560 |
| 23X9-10 | 6.50F | LM-201 LM-202 | Standard/Click | 225 | 595 |
| 200/50-10 | 6.50F | LM-201 | Click | 196 | 457 |
| 8.25-12 | 5.00S | LM-201 | Standard | 205 | 731 |
| 27X10-12 (250/75-12) | 8.00G | LM-201 | Standard | 250 | 645 |
| 5.50-15 | 4.5D | LM-201 | Standard | 150 | 672 |
| 7.00-15 | 5.50S 6.00E | LM-201 LM-205 | Standard/Click | 198 | 688 |
| 7.50-15 | 5.5 | LM-201 | Standard | 202 | 176 |
| 6.0 | |||||
| 6.5 | |||||
| 28x9-15 (8.15-15) | 6.5 | LM-201 LM-205 | Standard | 226 | 686 |
| 7 | LM-201 LM-202 LM-205 | Standard/Click | |||
| 8.25-15 | 5.5 | LM-201 LM-205 | Standard | 207 | 820 |
| 6.5 | LM-201 LM-202 LM-205 | Standard/Click | |||
| 250-15 | 7 | LM-201 LM-202 LM-205 | Standard/Click | 238 | 724 |
| 7.5 | LM-201 LM-205 | Standard | |||
| 300-15 | 8 | LM-201 LM-202 LM-205 | Standard | 260 | 813 |
| 28X12.5-15 (315/50-15) | 9.75 | LM-201 | Standard | 322 | 724 |
| 32X12.1-15 (355/65-15) | 9.75 | LM-201 | Standard/Click | 312 | 812 |
| 7.50-16 | 5.5 | LM-201 | Standard | 205 | 797 |
| 6 | |||||
| 8.00-16 | 5.5 | LM-201 | Standard | 208 | 800 |
| 7.50-20 | 6.00 | LM-201 | Standard | 205 | 797 |
| 8.25-20 | 6.50 | LM-201 | Standard | 220 | 960 |
| 7.00 | LM-204 | ||||
| 9.00-20 | 6.50 | LM-201 | Standard | 255 | 1006 |
| 7.00 | Standard | ||||
| 10.00-20 | 7.50 | LM-201 LM-204 | Standard | 275 | 1044 |
| 8.00 | LM-201 LM-202 LM-204 | Standard | |||
| 11.00-20 | 8.00 | LM-201 | Standard | 280 | 1085 |
| 12.00-20 | 8.00 | LM-201 LM-204 | Standard | 298 | 1105 |
| 8.50 | Standard | 374 | 1105 | ||
| 14.00-20 | 10.00W | LM-201 | Standard | 362 | 1278 |
| 14.00-24 | 10.00W | LM-202 | Standard | 362 | 1278 |
| 355/65-15 | 9.75 | LM-203 | Standard/Click | 308 | 822 |

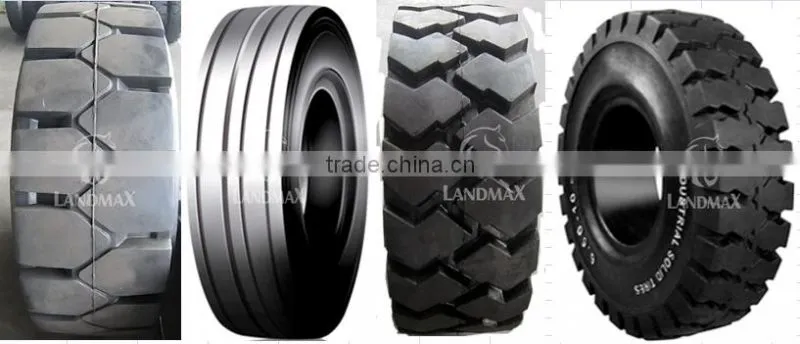

Other patterns pictures for forklift tires
LM-201 LM-203 LM-204 LM-207
Standard forklift, non-marking tires are manufatured as well.
Besides, heavy duty truck forklift tires of 8.25-20, 9.00-16, 9.00-20, 10.00-20, 11.00-20,12.00-20 are available.
| Size | Tim | Section Width (mm) | Over Dia. (mm) |
| 8.25-20 | 6.5 | 218 | 975 |
| 9.00-16 | 6.5 | 215 | 875 |
| 9.00-20 | 7 | 240 | 1006 |
| 10.00-20 | 7.50/8.0 | 250 | 1040 |
| 11.00-20 | 8 | 270 | 1060 |
| 12.00-20 | 8.00/8.50 | 288 | 1110 |

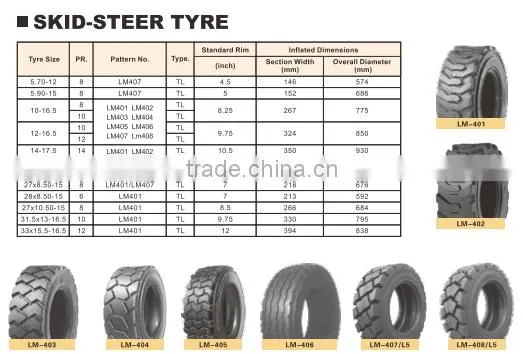

Skid steer tires of sizes 10-16.5 12-16.5 14-17.5 etc could be available.
Our forklift tires has been exported to Poland, Portugal, Austrilia, Peru and Chile with good feedback.
If you are interested in our Black High Resilience Click Forklift Tire 700-12 tires, please don't hesitate to contact us and we'll do our utmost to meet.
