32-110mm PP Pipe Production Line SJ65/33 as Main Extruder

32-110mm PP Pipe Production Line SJ65/33 as Main Extruder thumbnail-1
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder thumbnail-2
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder thumbnail-3
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder thumbnail-4
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder thumbnail-5
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder thumbnail-6
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder photo-1
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder photo-2
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder photo-3
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder photo-4
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder photo-5
32-110mm PP Pipe Production Line SJ65/33 as Main Extruder photo-6
US$ 35,450 - 38,475 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Pipe
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Zhangjiagang Beierman Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/NINGBO of 32-110mm PP pipe production line
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Pipe
Plastic Processed PE
Screw Design Single-screw
Automatic Grade automatic/semi-automatic
Place of Origin Jiangsu, China
Brand Name BEIERMAN
Model Number SJ65/33
Voltage 220/380/415/440V
Power(W) 115KW
Dimension(L*W*H) 33*3*4(m)
Weight 14T
Certification CE&SGS
After-sales Service Provided Engineers available to service machinery overseas







32-110mm PP pipe production line SJ65/33 as main extruder

CE/SGS approved 32-110mm PP pipe production line specially designed for PP,PE pipe,this production line also suitable HDPE, PPR material,what need we do is to change raw material.

These final product pipe are mainly used in the area of agricultural water supply system, architectural water supply system, gas pipe, sewages pipes,pavement of cables,etc.

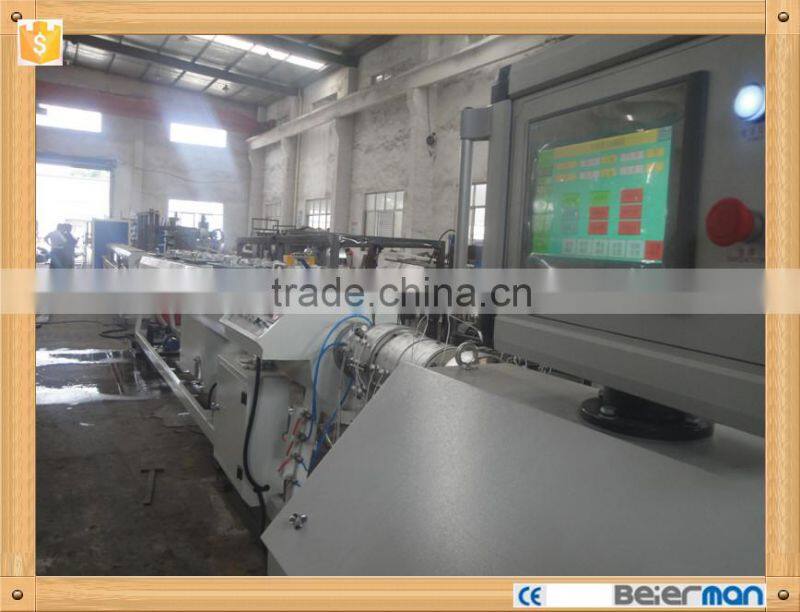

The main parts of the line are PLC control, high degree of automation .

Adopting compound spiral engine head , effectively deleting memory function of the material .

Adopting co-extrusion head to improve the tube color line.

Vacuum calibration , constant temperature control , eliminating pipe stress.

High extrusion capacity, low temperature of melt , equal temperature of melt.

Wide processing range of raw materials.



Pipe Diameter range: 32mm,40mm,50mm,63mm,75mm,90mm,110mm.



Major parts of 32-110mm PP pipe production line:



NO.

Major parts

Detail information

1

Vacuum Loading Machine

Driving motor: 0.75KW

2

Drying Hopper

electric heating power: 6KW, blower: 0.37KW

3

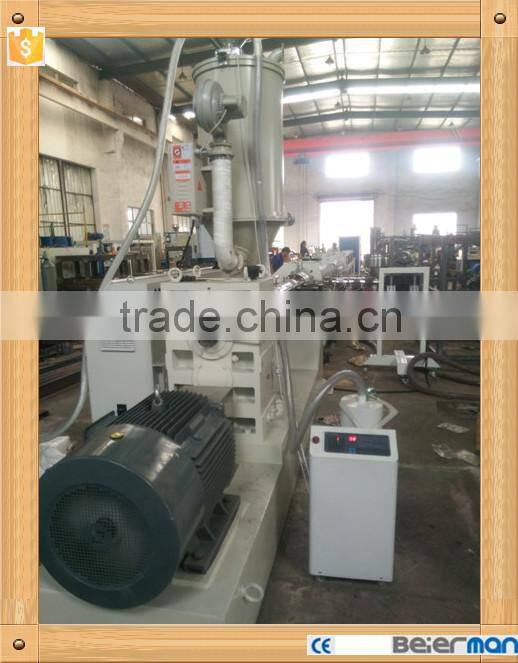

SJ65/33 Single Screw Extruder

Driving motor: 55KW, Capacity: 90-150KG/HOUR

4

SJ25/25 CO-Extruder

Driving motor: 0.75KW

5

32-110mm PP Pipe Moulds

Pipe size:32mm,40mm,50mm,63mm,75mm,90mm,

110mm.

pressure grade:0.6Mpa, 0.8Mpa, 1.0Mpa, 1.25Mpa

6

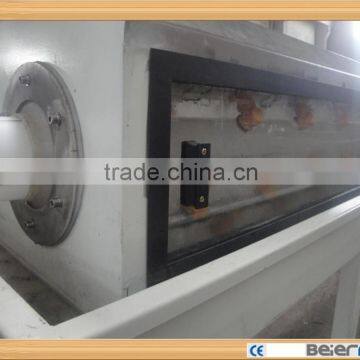

Vacuum Forming Tank

Tank length: 6000mm; vacuum pump: 4KW, 1pc

Water pump: 4KW, 1pc, stainless steel tank

7

Pipe Spray Cooling Tank

5000mm length,Water pump: 3KW

(one cooling tank, or two cooling tank,up to customer)

8

Pipe Haul off Machine

Haul off motor: 2.2KW, 2caterpillars;

9

Pipe Cutting Machine

Cutting motor: 1.1KW,  Dust free cutter

10

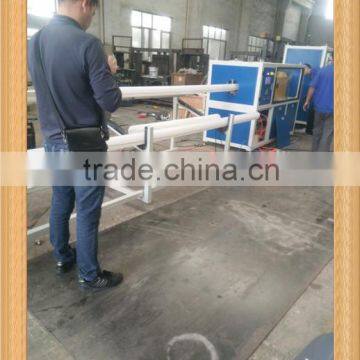

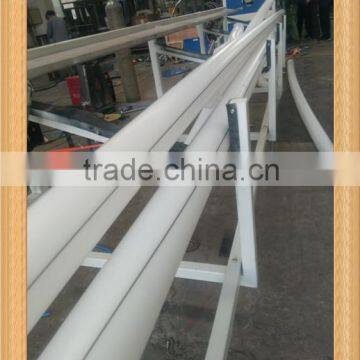

Pipe Stacker

Stacker Length: 5meter, automatic control



Advantage:

- world famous brands major parts:

Motor with SIEMENS

Inverters

 with ABB/ FUJI / LG / OMRON
Contactors with SIEMENS / Schneider
Temperature controllers with OMRON/ RKC

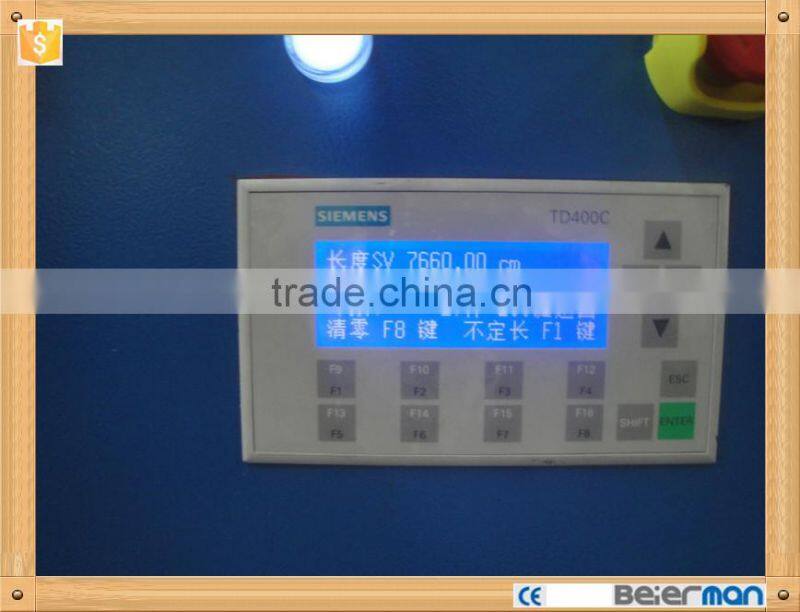

PLC system with SIEMENS/ DELTA



- Skilled workers for machines producing

- Experience engineers all with passports ready for customers services

- Good Prices get from square quantity major parts purchase with lower cost

- Full line running test for customer checking before delivery



 32-110mm PP pipe production line SJ65/33 as main extruder32-110mm PP pipe production line SJ65/33 as main extruder32-110mm PP pipe production line SJ65/33 as main extruder



 32-110mm PP pipe production line SJ65/33 as main extruder



  - Packaging: poly-wooden cases for 32-110mm PP pipe production line, no need fumigate; bubble films packaging

  - We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires

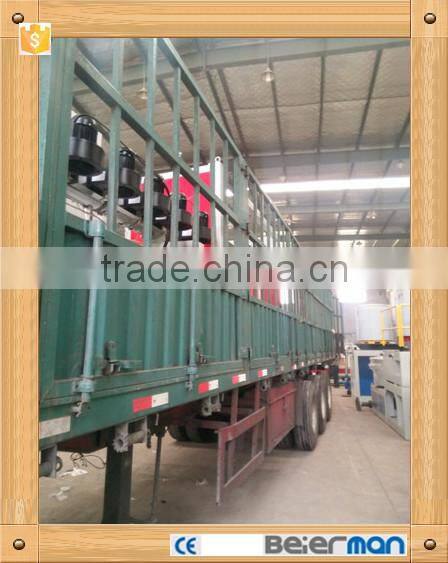

  - Shipping: By Sea or Train

 32-110mm PP pipe production line SJ65/33 as main extruder

32-110mm PP pipe production line SJ65/33 as main extruder



 32-110mm PP pipe production line SJ65/33 as main extruder



- pre-sales services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations



- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method



- after sales services: we will offer electric diagram, installation diagram, usage manual



- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.



- we will offer customers spare parts at cost prices all life long of the machines.





 32-110mm PP pipe production line SJ65/33 as main extruder

- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.

- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.

- we have already get CE and ISO9001 corticated for our machines and factory, which ensured the high quality level of all machines we are producing

- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.

- there will be 1-2 new produced machines will be showed to the customers every year.

- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.

 32-110mm PP pipe production line SJ65/33 as main extruder

32-110mm PP pipe production line SJ65/33 as main extruder32-110mm PP pipe production line SJ65/33 as main extruder32-110mm PP pipe production line SJ65/33 as main extruder32-110mm PP pipe production line SJ65/33 as main extruder



 32-110mm PP pipe production line SJ65/33 as main extruder





Related Products



PE pipe Diameter range Main extruder Main extruder power(KW) Extrusion line Total power(KW) Remark outlets
16-63mm 45/33 37 94 single outlet
16-63mm 65/30 37 95 single outlet
16-63mm 65/33 75 165 two cavity
63-110mm 65/30 55 115 Single outlet
20-160mm 65/33 75 130 single outlet
32-125mm 60/33 75 177 single outlet
75-250mm 75/33 110 230 single outlet
110-400mm 90/33 185 380 single outlet
200-400mm 90/30 160 255 single outlet
200-400mm 90/33 185 380 single outlet
160-500mm 90/33+75/33 185+110 380+230 single outlet
160-500m 120/33 280 550 single outlet
280-630mm 90/33*2 185*2 380*2 single outlet
280-630mm 120/33 280 550 single outlet
315-630mm 150/33 400 800 single outlet
400-800mm 150/33 400 800 single outlet
