Home > Products > mixing machine/mixer > Hopper Drier Auto-mixer and dryer
Hopper Drier Auto-mixer and dryer
- 120 Set / Sets per Month
- SHANGHAI/NINGBO of Hopper Drier Auto-mixer and dryer
- T/T Credit Card
- Plastic Industrial Hopper Dryer Plastic Drying Machines with autoloder
- Good Price Industrial Plastic Granules Drying Machine Supplier
- Good Price Industrial Plastic Material Dehumidifying Dryer Supplier
- Good price 3 in 1 Industrial dehumidifier dryer for plastic
- Industrial Hot Air Plastic Granules Dryer Hopper Drying Machine Price
- Industrial mold dehumidifier mold dryer machine price
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | BEIERMAN of hopper drier auto-mixer and dryer |
Model Number: | STG-2000 of hopper drier auto-mixer and dryer | Certification: | CE/SGS approved ofhopper drier auto-mixer and dryer | Warranty: | one year of hopper drier auto-mixer and dryer |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Hopper Drier Auto-mixer and dryer
Model | SRL-Z100/200 | SRL-Z200/500 | SRL-Z300/600 | SRL-Z500/1000 | SRL-Z800/1600 |
Total Volume (L) | 100/200 | 200/500 | 300/600 | 500/1000 | 800/1600 |
Effective Volume(L) | 75/150 | 150/375 | 225/450 | 375/750 | 600/1200 |
Mixing Speed(rpm) | 650/1300/200 | 475/950/130 | 475/950/100 | 430/860/70 | 370/740/50 |
Heating/Cooling Method | Electric/self-friction/recycling water | ||||
Mixing Time(minutes) | 8-12 | 8-12 | 8-12 | 8-15 | 8-15 |
DS Driving Motor(kw) | 14/22/7.5 | 30/42/7.5 | 40/55/11 | 47/67/15 | 80/110/22 |
Inveter Driving Motor(kw) | 22/7.5 | 45/7.5 | 55/11 | 75/15 | 110/22 |
Dimension(m) | 1.95X1.6X1.8 | 4.58X2.24X2.47 | 4.8X2.64X2.48 | 5.6X3X3.1 | 5.17X3.2X4.48 |
Weight(kg) | 2200 | 3400 | 3600 | 6500 | 9800 |
Features:
1.specially designed for the PE pellets mixing drying, coloring.
2.high speed mixing motor inverter started
3. high speed parts 3 methods temperature increatig: material self-friction/electric heating/conduction oil heating
4.material discharge 2 methods: temperature controller automatic release/mixing time control
5.the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
6.the barrel covers and three direct links made of cast aluminum
7. the bearing chambers with special designs for the lubricating oil injection
8. driving motor over current protection design
9. PLC touch screen control system can be choosed for the high automatic control requirement
10.special designed mixing axis design can avoiding the raw material leaking from the barrel
11.mixing paddles after strict balance test
Competitive Advantage :
- world famous brands major parts: SIEMENS motor, ABB/FUJI/LG/OMRON inverters, SIEMENS/Schneider contactors, OMRON/RKC temperature controllers, DELTA/SIEMENS PLC system
- Skilled workers for machines proucing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
--packing:standard export packing ,wooden cases or bubble films ,no need fumigate ,we suggest customers to purchase wooded cases,if no ,wo will fixed machines on containers walls with steel wires.
--shipping:by ship or train.

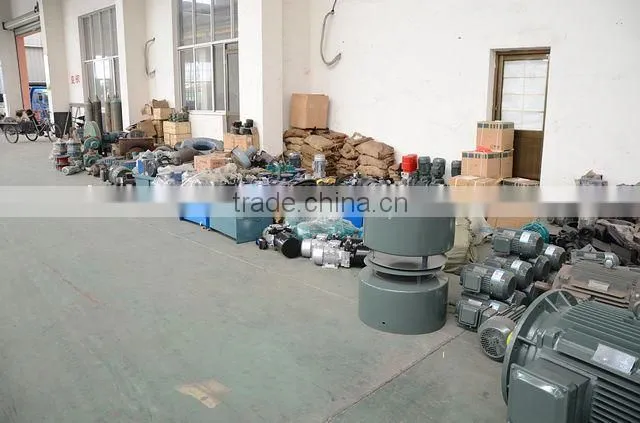

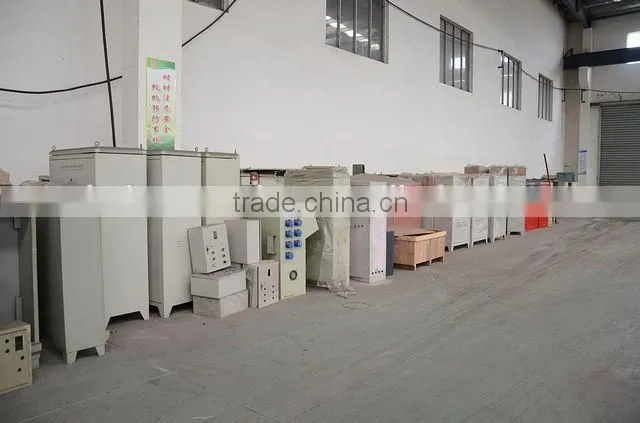

workshop:
