Help CenterSJ120/33 High Efficient Single Screw Extruder for HDPE,PE Pipe
Related Products
-
SJ90/33 High Efficient Single Screw Extruder for HDPE,PE PipeUS$ 22,580 - 24,000MOQ: 1 Set -
SJ50/33 Single Screw Extruder for PE Pipe MakingUS$ 9,032 - 11,500MOQ: 1 Set
-
SJ120/22 Single Screw Extruder for GranulatingUS$ 20,967 - 26,000MOQ: 1 Set
-
SJ120/12 Single Screw Extruder for GranulatingUS$ 11,000 - 14,000MOQ: 1 Set
-
SJ120/25 Single Screw Extruder for GranulatingUS$ 16,935 - 18,000MOQ: 1 Set
CE/SGS approved single screw extruder specially designed for PP PE pellets extruding, it also can combine with the HDPE,PE,PPR pipe production line.
We produce Single screw extruder, and also high speed high efficient Single screw extruder.
Single screw extruder is advanced in design,high in output,good in plasticization and low in energy consumption.
The involute gear driving is characterized by low noise,stable running,big bearing capacity and long service life.
Single screw extruder' screw structure also can re-designed accoring to customer's detail raw material and the purposes.
we have many kind of types,such as 25/25;30/25;35/25;45/25;45/28;45/30;50/28;50/33;55/30;65/28; 65/30;65/33;70/30;75/33;90/30;90/33;120/15;120/22;120/32;120/33;130/32;150/10;150/30;180/10;180/22......etc ,some small single screw extruder be equipped as colormark co-extruder ,or lab extruder; some big single screw extruder ,together with our auxiliary machine,will be equipped as whole production line to make pipe,to granule.

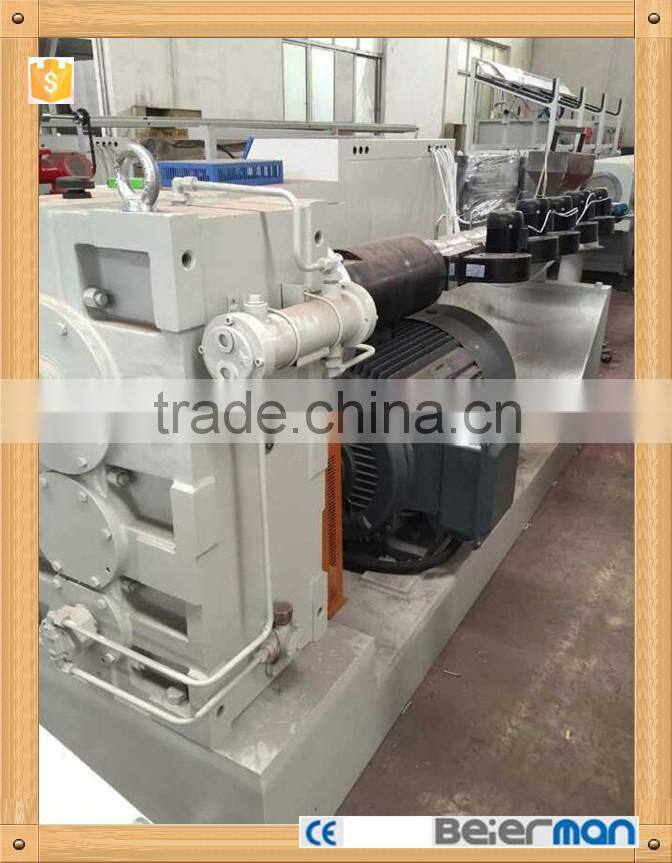

Here I offer one of our SJ120/33 High efficient Single screw extruder for your reference.
The SJ120/33 High efficient Single screw extruder generally is used as main extruder to produce 315-630mm HDPE, PE pipe production line.
Detail parameter of SJ120/33 Single screw extruder as below:
1 |
Model |
SJ120/33 |
2 |
design |
Single screw extruder |
3 |
Driving motor |
280KW or 315KW |
4 |
Screw diameter |
120mm |
5 |
L/D ratio |
33:1 |
6 |
Screw material |
38CrMoAIA |
7 |
Screw hardness |
HV900-1000 |
8 |
Surface treatment |
Nitriding layer with thickness:0.6-0.8mm,Polishing |
9 |
Barrel,inner processing |
Nitriding layer with thickness:0.6-0.8mm |
10 |
Heating power |
8KW*8pcs=64KW in total |
11 |
Heater |
Cast Aluminum+stainless steel covering |
12 |
Cooling method |
Air fans,0.37KW*8pcs=2.96KW in total |
13 |
Speed Reducer |
Hard gears vertical speed reducer |
14 |
Electric cabinet |
AC motor, ABB inverter |
15 |
Contactor |
SIEMENS |
16 |
Frequency converter |
ABB |
17 |
Capacity |
600-800kg/h |
18 |
Voltage |
380V,50Hz,3phase(or design according to customer) |
19 |
Plastic processed |
HDPE,PE,etc |
Advantage:
- world famous brands major parts:
| Motor | with SIEMENS |
Inverters |
with ABB/ FUJI / LG / OMRON |
| Contactors | with SIEMENS / Schneider |
| Temperature controllers | with OMRON/ RKC |
| PLC system | with SIEMENS/ DELTA |
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery

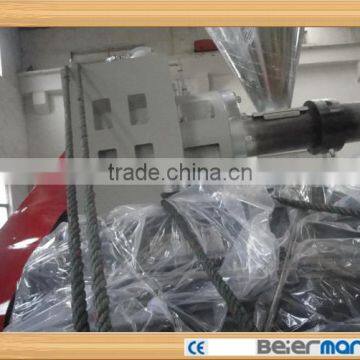

- Packaging: poly-wooden cases for High efficient single screw extruder SJ120/33 no need fumigate; films packaging

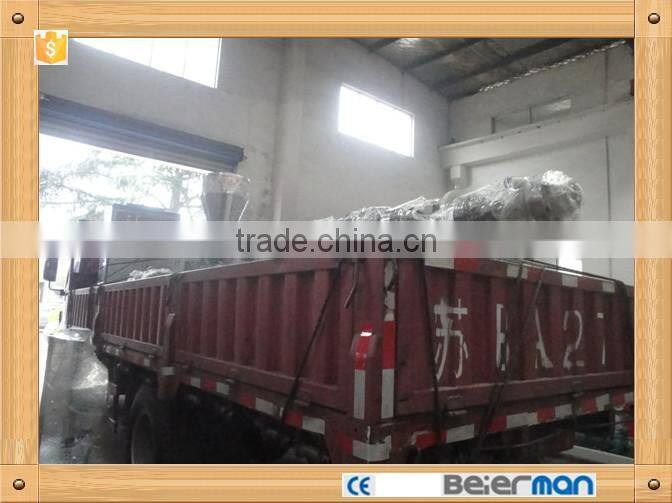

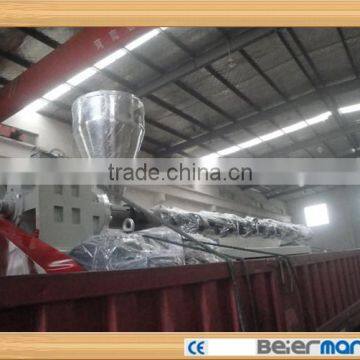

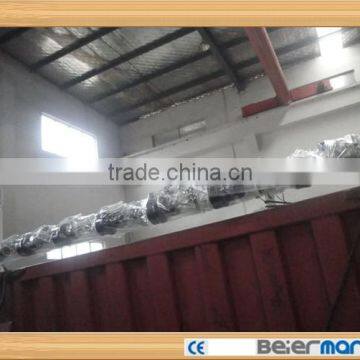

- We suggest the customer to purchase poly-wooden case packaging; if no, we will fixed the machines on containers walls with steel wires
- pre-sales services: we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
- after sales services: we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.
- we will offer customers spare parts at cost prices all life long of the machines
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.
- we have already get CE and ISO9001 certificated for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new produced machines will be showed to the customers every year.
- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.

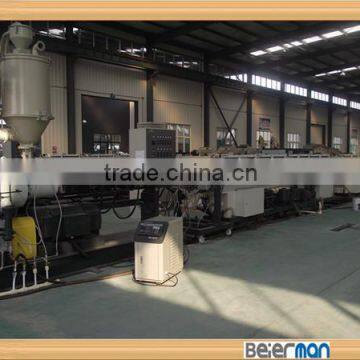

single screw extruder in the pipe extrusion line,
| PE pipe Diameter range | Main extruder | Main extruder power(KW) | Extrusion line Total power(KW) | Remark outlets |
| 16-63mm | 45/33 | 37 | 94 | single outlet |
| 16-63mm | 65/33 | 75 | 165 | two cavity |
| 20-160mm | 65/33 | 75 | 130 | single outlet |
| 32-125mm | 60/33 | 75 | 177 | single outlet |
| 75-250mm | 75/33 | 110 | 230 | single outlet |
| 110-400mm | 90/33 | 185 | 380 | single outlet |
| 200-400mm | 90/30 | 160 | 255 | single outlet |
| 200-400mm | 90/33 | 185 | 380 | single outlet |
| 160-500mm | 90/33+75/33 | 185+110 | 380+230 | single outlet |
| 160-500m | 120/33 | 280 | 550 | single outlet |
| 280-630mm | 90/33*2 | 185*2 | 380*2 | single outlet |
| 280-630mm | 120/33 | 280 | 550 | single outlet |
| 315-630mm | 150/33 | 400 | 800 | single outlet |
| 400-800mm | 150/33 | 400 | 800 | single outlet |
