surgical Face mask making machine

wooden case.

Specifications

surgical Face mask making machine
Supply voltage:220v
Frequency:20K 2set of ultrasonic system
Capacity:25-30pcs/min

Operational principle of surgical Face mask making machine:

South Nekon tie-on type mask making machine (another names: ultrasonic mask machine, medical mask machine, non-woven mask machine, disposable mask machine, mask making equipment) adopt ultrasonic welding method, equipped conveyer device, put the semi-product onto conveyer device, through pull tube Covered edge, use ultrasonic design roller welding, and cut off the band, and output the finished-product. Only need one worker to put the semi-product onto the conveyer device, all the other actions finished by tie-on type mask making machine.

surgical Face mask making machine Technical Parameter:

Model no.: NK-GW2016
Supply voltage: 220 V, 50/60 Hz
Frequency:20K 2set of ultrasonic system
Power:3kw
Capacity:30-35pcs/min
Size of Machine:1900(L) X 730(W) X 1300(H) mm
Weight of machine:300KG

surgical Face mask making machine Features:

1. Automatic counting can efficiently control the production efficiency and schedule.

2. Machine frame adopt alloy aluminum, beautiful shape and not rust.

3. Inverter control, the production speed can be adjusted according to the request..

4. Pull tube feeding, positioning is more accurate, it can control to a minimum width of raw materials and save cost.

5. The length of product is controlled of uniform size, deviation ± 1mm, it can effectively control the product length,

6. High degree of automation, low requirement of worker, just need to put on the raw material to the machine and take out the finished.

7. Adopt Taiwan ultrasonic system, Japan vibrator, and stable performance.

8. Automatic ultrasonic welding roller is made of high quality steel DC53, increasing the use life, and more durability.

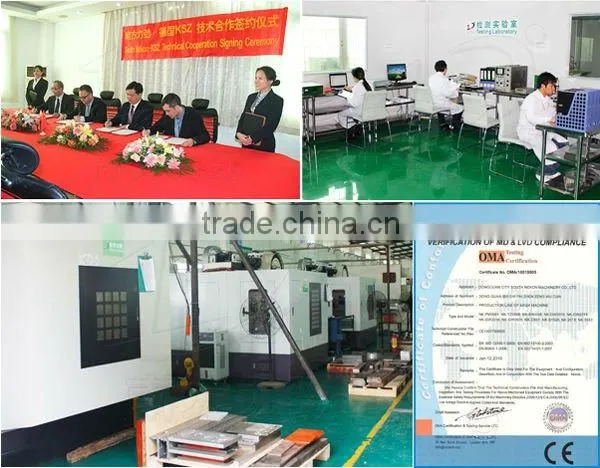

South NK carried out in technology cooperation with the German KSZ,Full introduction of Germany advanced design concepts and Strong technical support , The picture shows the guidance of foreign engineers to work:

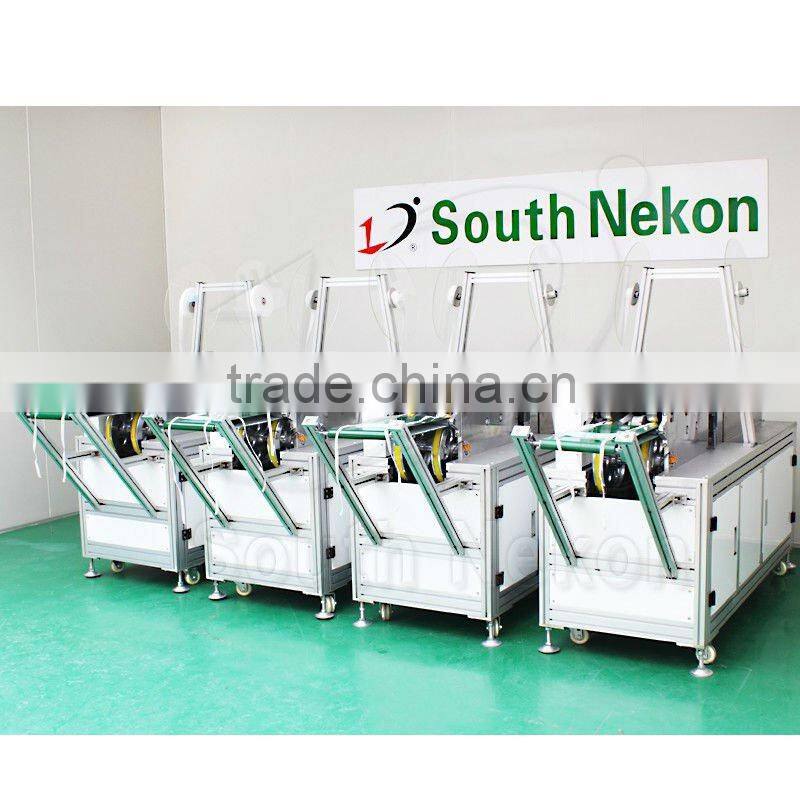

Delivery Scene:

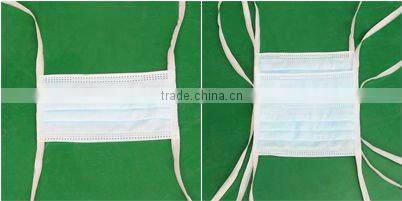

Finished Product:
