Good Quality PON Optical Power Meter Network Cable Tester With Cheap Price Supplier's Choice
US$ 200.00 - 200.00
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
JW-3213A
Payment & Shipping
Payment Methods:
Port of Shipment:
NING BO /SHANG HAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Price Optical Power Meter Network Cable TesterUS$ 400.00 - 400.00MOQ: 10 Pieces -
Good Quality Optical Fiber Ranger Network Cable Tester Hand OTDRUS$ 1000.00 - 1000.00MOQ: 10 Pieces
-
High Precision Fiber Cleaver Intelligent Single Fiber Ribbon Fiber Cleaver Fiber HPC 8S Optic CutterUS$ 130.00 - 130.00MOQ: 10 Pieces
-
Mini Handheld Optical Power Meter Network Cable TesterUS$ 50.00 - 50.00MOQ: 10 Pieces
-
High Precision Fiber Cleaver Intelligent Single Fiber Ribbon Fiber Cleaver Fiber Optic CutterUS$ 115.00 - 115.00MOQ: 10 Pieces
Place of Origin
Zhejiang, China
Brand Name
OEM
Model Number
JW-3213A
Product Description
1.It can experiment at Voice, data and video signal synchronous measurement and display on BPON/EPON/GPON.
2.Providing simultaneous measurement for all three wavelengths on the fiber (1490nm, 1550nm,1310nm )
3.Used in Burst mode measurement of 1310nm upstream.
4.Use the software connect with PC, setting the threshold, data transfer, and calibration the wavelength.
5.USB communication port enables data transfer to a PC.1000measurement items can be saved in PON power meter or computer for data review.
6.With optical power meter modual,include850、1300、1310、1490、1550、1625sixs(PON power meter AP， PON power meter Awithout850nmwavelength）；With visual fault locator modual
（PON power meter and PON power meter AV）
7.Optical power meter and VFL with one port.（only PON power meter）
8.Optional Chinese/English display.
9.Offers up to 10 different threshold sets in total,Three status LEDs represent different optical signal conditions of Pass, Warn and Fail respectively.
10.10 minutes Auto-off function can be activated or deactivated
11.Good key design,high sensitivity, greatly reducing the volume and weight of the tester.
12.Different models corresponding to different function, according to own use to choose .
Technical Parameter
1550 downstream measurement
Pass Zone(nm): 1535nm～1570nm
MeasurementRange(dBm): -40dBm～+10dBm
Output power(max): 25dBm
Isolation@（1310/1490nm）: >40dB
Measurement Accuracy
Connatural uncertainty(dB) :±0.5dB
Linearity(dB): ±0.1dB
Passing through insertion Loss(dB):<1.5dB
General Information
Detector Type: InGaAs
Optical Connector:FC/SC/ST Interchangeable/2.5 universal adapter
Fiber Type: SM 9/125um
Measurement Unit: dB/dBm/xW
Resolution (dB): 0.01dB
Operation Voltage(V): DC 3.3V～5.5V
Power Supply: 3pc1.5V battery

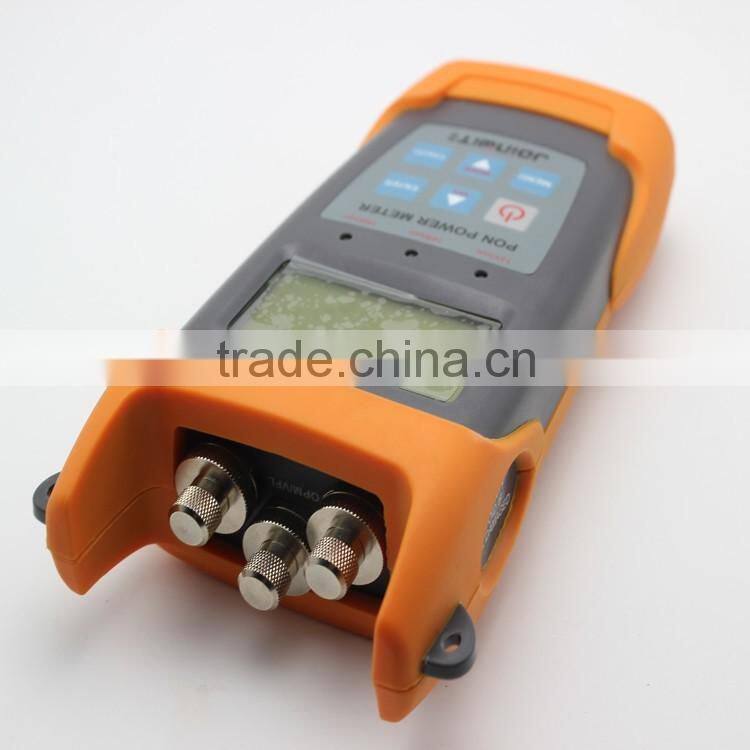

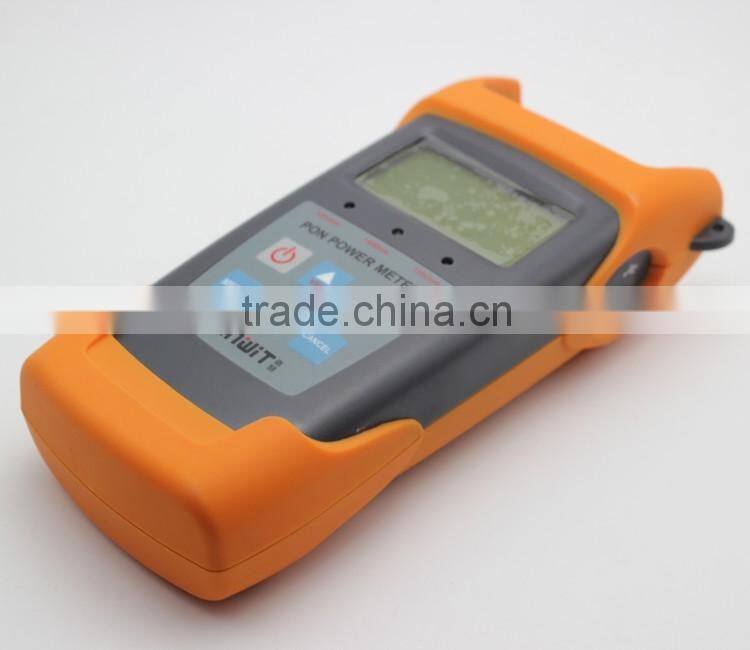

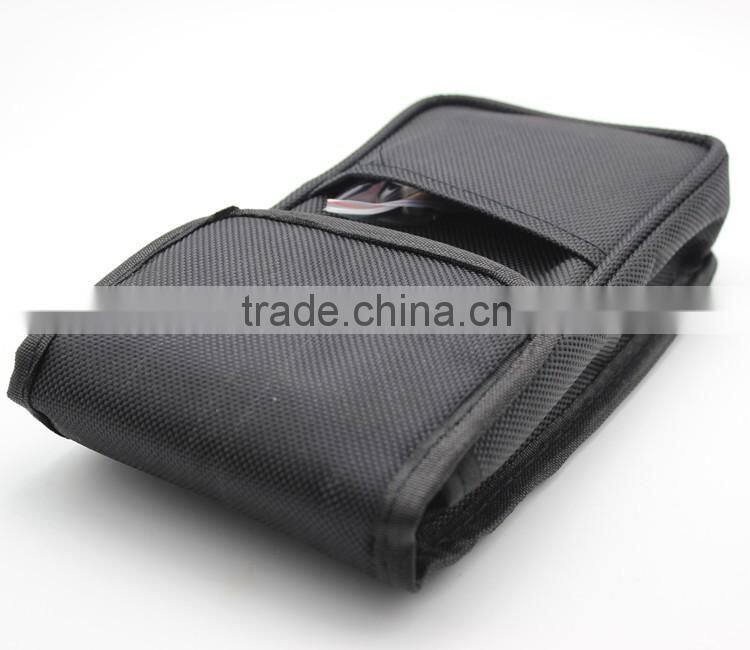

Detailed Images
Packing & Delivery
Shipping: Sea, air, express shipment are available,it is based on your request.We can help you get a good discount from EMS, Fedex,DHL, TNT, etc.
Express shipment:We work with TNT,Fedex,DHL,UPS,etc. 60% Discount price, Fast service
Delivery time: 3-7 working days
Payment:we accept Paypal,western union,T/T,and so on.
