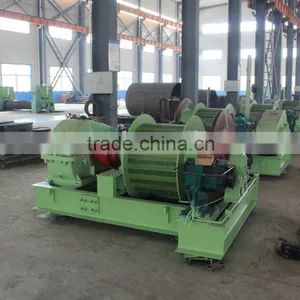

mine hoist
Product name: Technical data of Wanfeng Brand mine hoist manufacturers
Model |
JTP-1.2*1.2P |
|
AnBiao number |
MCH080038 KCH080002 |
|
Drum |
Quantity(pcs) |
1 |
Diameter |
1600mm |
|
Width |
1500mm |
|
Wire rope |
Max. diameter |
26mm |
Max. static tension |
45KN |
|
Max. differential static tension |
/ |
|
Hoisting speed |
1.94-2.57m/s |
|
Rope Capacity of drum |
Rope capacity of one layer |
226m(with spare ropes) |
Rope capacity of two layers |
491m(with spare ropes) |
|
Rope capacity of three layers |
767m(with spare ropes) |
|
Reducer |
Speed Ratio |
20/24/31.5 |
ElectroMotor |
power |
110-132KW |
Rotate speed |
730-970r/min |
|
Application: Pull Lift Chain Kone Hoist Hoist with Electric Hoist Switch
The products of this series are used to lift materials, equipments and people in coal mine ,iron mine, metal mine and non metal mine inclined roadway and small shaft.
Working Principle:
The motor transmits power to the drum which wrapped by wire rope through the reducer to lift and lower the container. The speed is adjusted by electric drive. the braking of disc brake via hydraulic and electric system.
Position indicator system shows the depth of the container. The control system integrating the motor, electric and hydraulic pressure supervises and protects the whole equipment through a variety of sensors and control elements.
Internal and external information transmission is carried out by the computer and the internet technology.
Quality Policy: Enterprise Spirit:
Quality First ,Customer First Honesty, Devotion, Striving, and development
Faith is root, Profession is the first WANFENG MINING MACHINERY WORTH YOUR CHOICE!
