Technical data of electric single drum hoist made in china
Model |
JTP-1.2×0.8w |
|
Drum |
Quantity(pcs) |
1 |
Diameter |
1200mm |
|
Width |
800mm |
|
Wire rope |
Max. wire rope diameter |
20mm |
Max. static tension |
30KN |
|
Max. differential static tension |
20 |
|
Hoistingspeed |
1.45-1.93m/s |
|
Rope Capacity of drum |
Rope capacity of one layer |
99m(with spare ropes) |
Rope capacity of two layers |
232m(with spare ropes) |
|
Rope capacity of three layers |
370m(with spare ropes) |
|
Reducer |
Speed Ratio |
20/24/31.5 |
Electromotor |
power |
45-55KW |
Rotate speed |
730-970r/min |
|
The products of this series are used to lift coal and minerals and to carry personal,materials and equipment in coal ,metal and non-metal mines.

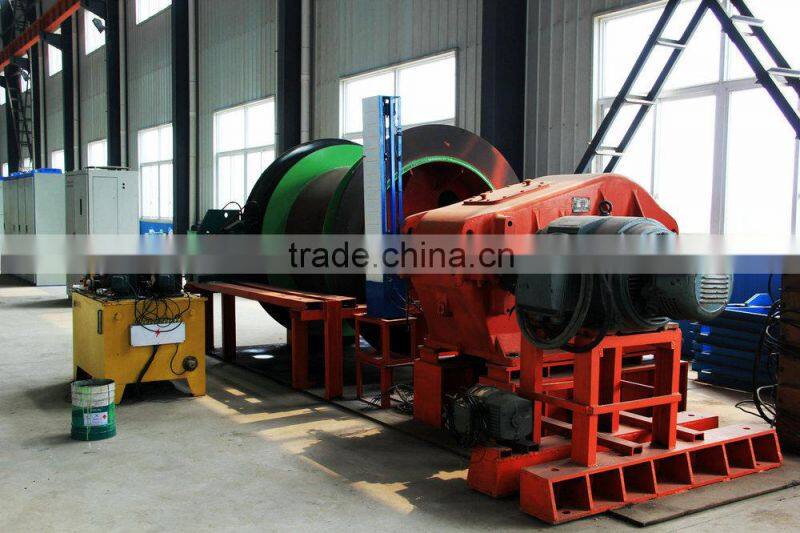

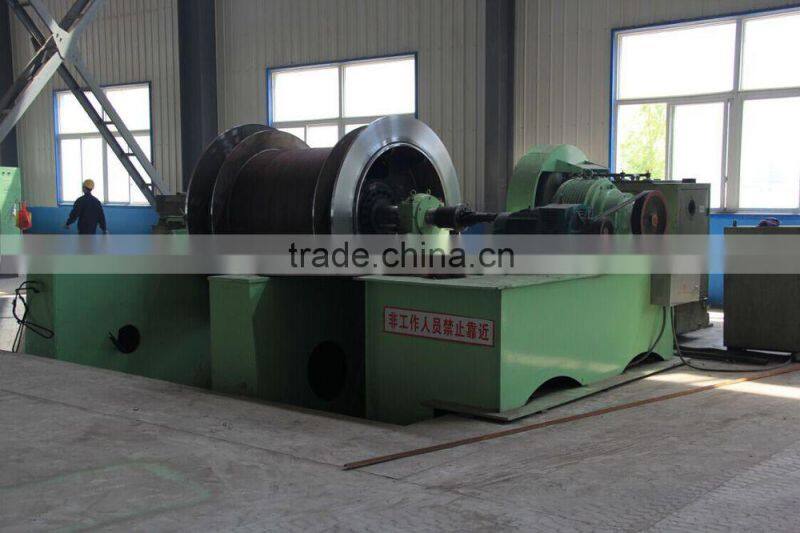

Working Principle :
The motor transmits power to the drum which wrapped by wire rope through the reducer to lift and lower the container. The speed is adjusted by electric drive. the braking of disc brake via hydraulic and electric system.
Position indicator system shows the depth of the container. The control system integrating the motor, electric and hydraulic pressure supervises and protects the whole equipment through a variety of sensors and control elements.
Internal and external information transmission is carried out by the computer and the internet technology.

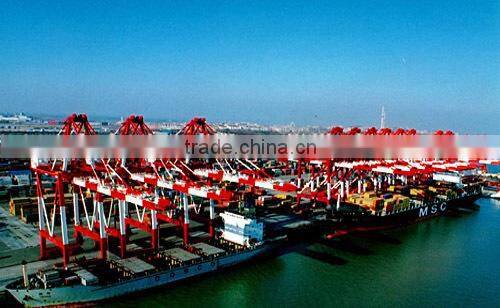

Standard seaworthy wooden case , and Shanghai port&Qingdao port.
Engineers available to service machinery overseas.

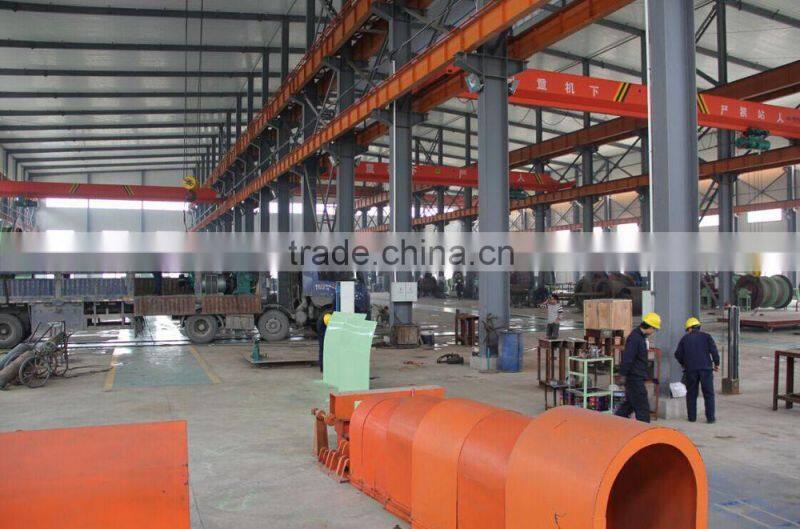

Hebi Wanfeng Mining Machinery Manufacturing CO., LTD is the largest and comprehensive strength of the mine lifting equipment professional manuafacturing enterprise. The company was founded in 1985. Company production of mine hoist and mine winder is sold throughout the country, and exported to Mongolia, Korea, Kyrgyzstan, Bangladesh and so on, well receiced by customers.
Quality policy:
Quality first, Customers first
Openness basing on sincerity& forge ahead
Enterprise spirit:
Conscientious and meticulous & strive for excellence
Solidify cooperation & integrity dedicated

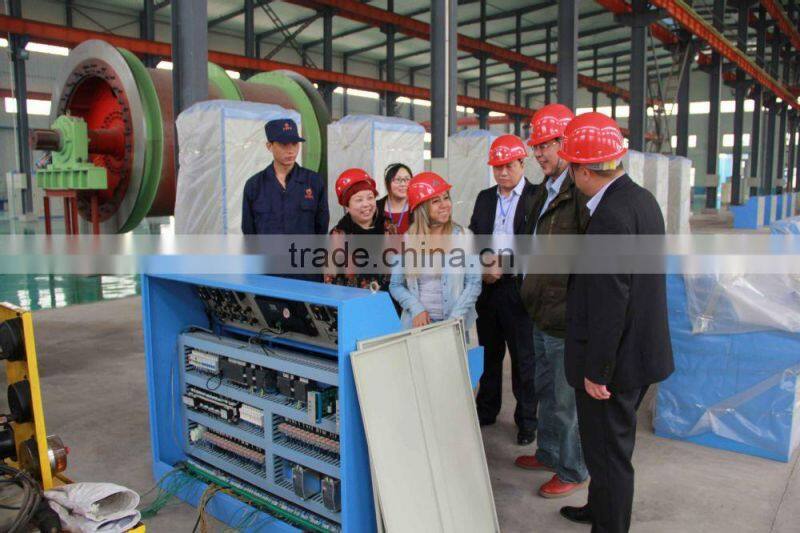

Welcome to contact us and visit us. We would like be your honest suppiler in china.
