Resistor Disc for Surge Arrestor

Resistor Disc for Surge Arrestor photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YongDe
Model Number:
D28
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name YongDe
Model Number D28



Specification



Zinc oxide varistor:

Description: Zinc oxide varistor is the core of the arrester,which main component is Zinc Oxide and with a small quantity of bismuth oxide, fluoride oxide, manganous carbonate, antimony oxide and other gleam of additive and made with high temperature.



Metal oxide Varistors microsturcture mainly constitute of Zinc Oxide grain, grain boundary layer and chienship phase. And its electric conduction principle lies that Zinc Oxide grain has good electro conductibility, and the voltage to the Zinc Oxide is almost act on high resistant grain boundary layer. Varistors nonlinearity mainly comes from grain boundary layer(the main ingredient is bismuth oxide) chienship phase scattered throughout the grain boundary layer which is the multiple oxide of Zinc Oxide and bismuth oxide. Its function lies in restraining the growing of Zinc Oxide grain to make the better nonlinearity.

Features: Large 2000μs rectangular impulse absorption capacity; Large 4/10μs high current impulse withstand.



Technical parameter:

Dimensions mm D28*24
Voltage Gradient V/mm 210~235
Square Wave Test Valve 200
4/20μ S High Current  Withstand  kA 65
8/20μ S high current withstand kA 10
DC1mA Refering Voltage kV  5.3
0.75Times U1mA Leak current μ A < 10
Residual Votage Ratio 1.88
Aging Load Point Ratio% 85

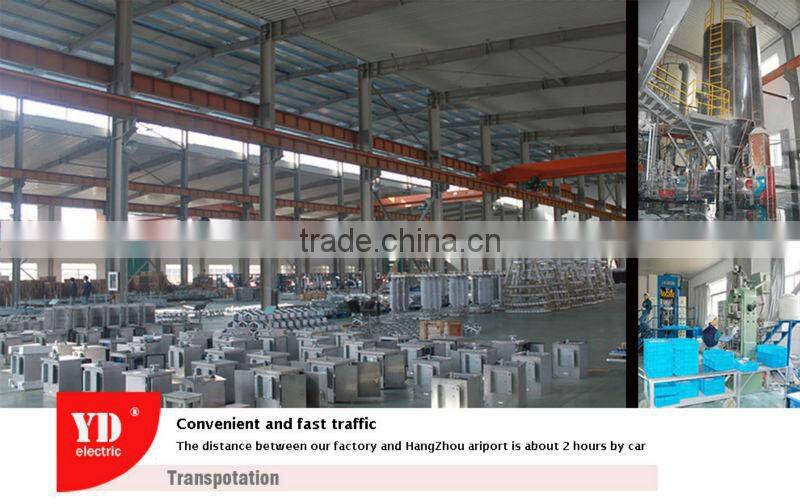

Production&Packaging



Resistor disc for surge arrestor

Resistor disc for surge arrestor

Resistor disc for surge arrestor

Resistor disc for surge arrestor



Certifications

Resistor disc for surge arrestor
