The Technical Data ofused for hoisting material mine winch JTK series
Model |
Drum |
Steel wire rope |
Lifting Height |
Steel wire rope |
Electric motor |
Overall dimension |
Maine engine |
|||||
Qty |
diameter |
width |
The first |
The second |
The third |
Max diameter |
Rotate speed |
Power |
||||
Unit |
mm |
KN |
m |
mm |
r/min |
kw |
mm |
kg |
||||
JTK-1*0.8 |
1 |
1000 |
800 |
15 |
164 |
332 |
515 |
12 |
964 |
37 |
3478*2680*1700 |
4268.8 |
JTK-0.8*0.6 |
1 |
800 |
600 |
15 |
/ |
/ |
/ |
14 |
955 |
22 |
3059*2400*1700 |
2618.7 |
JTKB-1*0.8W |
1 |
1000 |
800 |
22 |
125 |
252 |
396 |
16 |
970 |
37 |
2800*2175*1400 |
3915.8 |
JTKB-0.8*0.6W |
1 |
800 |
600 |
15 |
/ |
/ |
/ |
15 |
970 |
22 |
2250*1880*1400 |
2249 |
Product Description

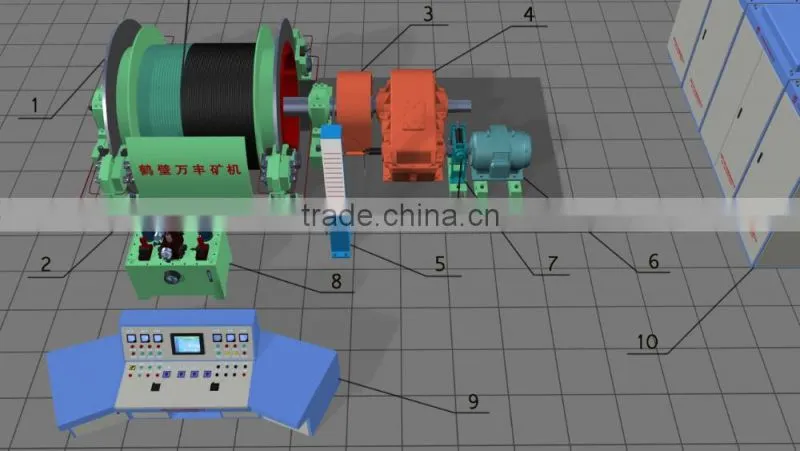

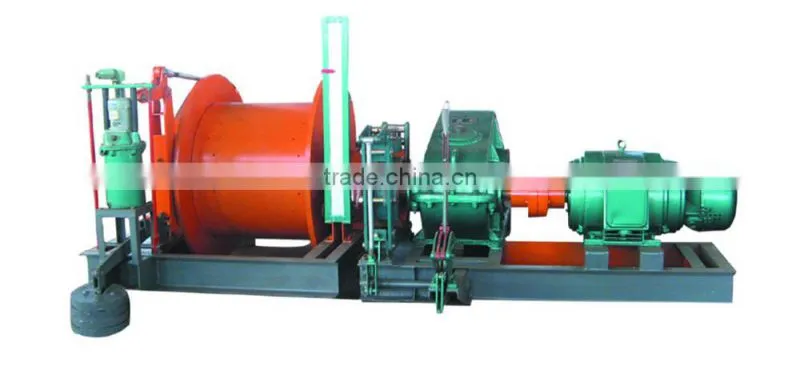

.This series hoisting winch are mainly used for mine shaft and inclined shaft to lift coal,ore,waste rock
as well as lifting personal,materials,tools and equipments. The principle axis unit used split or intergral-type flexible struction drum and the drum suffers force uniformly with big strength. Disc brakes are rear-mounted fuel tank with flexible action. The hydraulic can delay secondary brake,and it can be automatically
eleased in wellhead .Double -drum hoisting machine has rope-adjusting cluth with radial teeth.Transmission parts can be equipped with planetary reducer or parallel axis
hardened reducer.Electrical parts has necessary protection and interlock device,and user can choose PLC
electrical controller and frequency speed-changing electrical controller.Dynamic braking is also available on request.
.I will appreciate much if you can give us some details below.
1. Usage of machine (mine or something else)
2.Lifting workers or materials
3.The loading capacity
5.Depth of mine(angle if inclined)
6.Dia. and width of drum
7.Dia. of the rope
8.Lifting speed you want (m/s)
9.The power and voltage of motor
10.The electrical control system.
About us

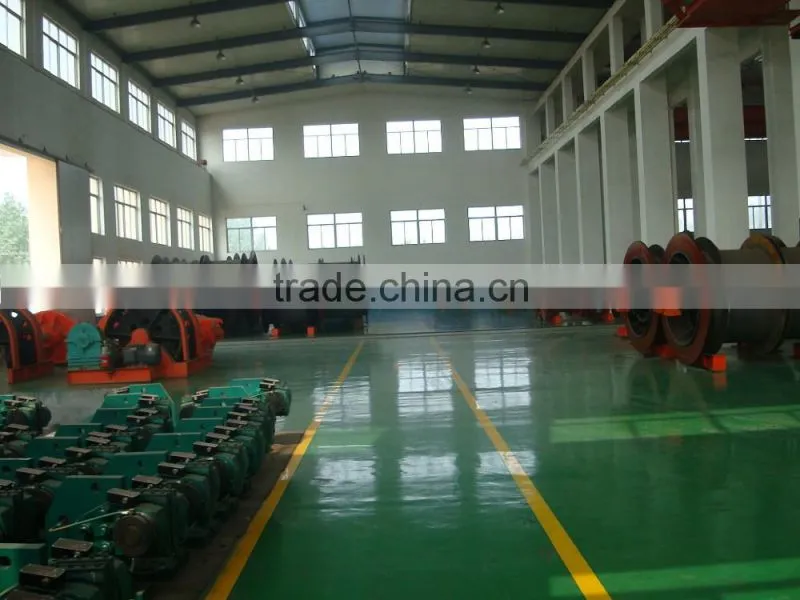

Hebi wanfeng Mining Machinery Manufacturing Co.,ltd is the biggest and strongest enterprise in the local place of henan province. The company founded in 1985, registered capital is 115million . The group total has 300 employees, include more than 30 technicians . We have electrical workshop, forging workshop, machining workshop, plate-workshop, and assembly workshop. Wanfeng company realized the integration of manufacturing and marketing to supply high quality mining machinery products and best service all over the world.

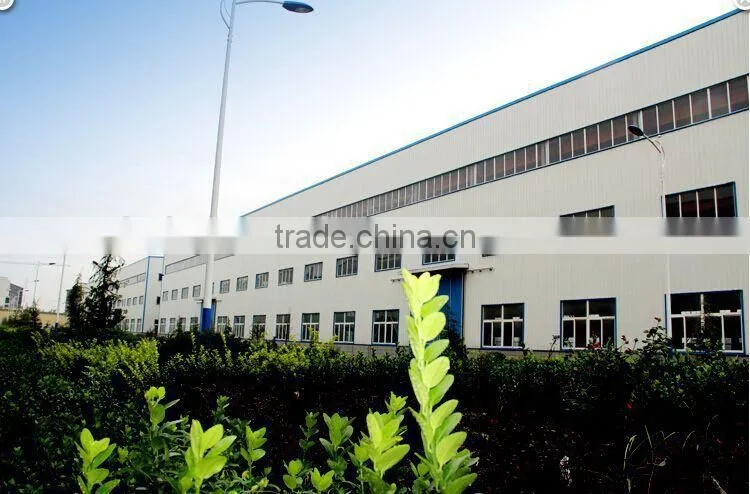

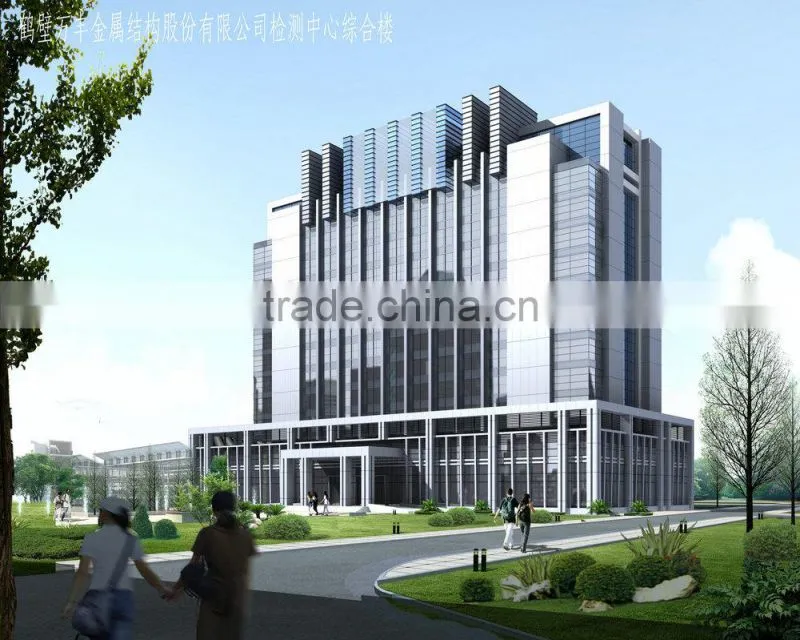

Company Image
Our working team
Wanfeng Culture
Quality Policy:
Quality First ,Customer First
Faith is root, Profession is the first
Enterprise Spirit:
Honesty, Devotion, Striving, and development
WANFENG MINING MACHINERY WORTH YOUR CHOICE!
WE WELCOME YOUR CONTACT AND VISIT!
