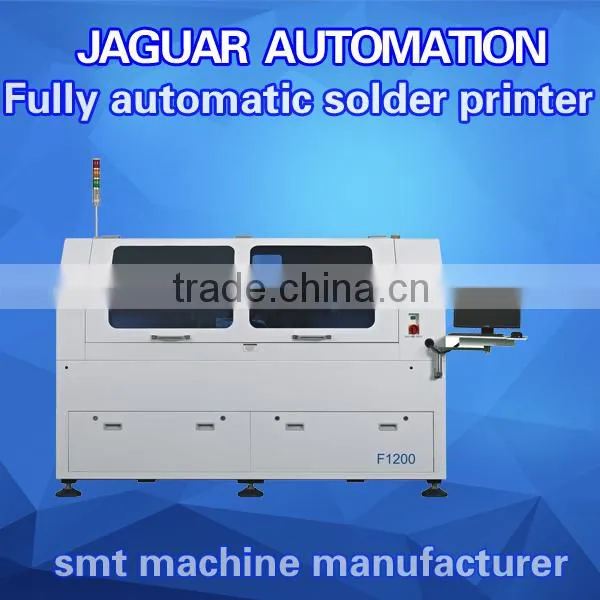

Help CenterSMD Solder Paste Screen Printer /high Precision Printer
Related Products
-
High Precision SMT Stencil Printer/ PCB Screen Printing Machine S600US$ 1000.00 - 23000.00MOQ: 1 Set -
High Efficiency SMT Stencil Printer/ PCB Screen Printing Machine S600US$ 1000.00 - 22000.00MOQ: 1 Set
-
Energy Saving SMT Stencil Printer/ PCB Screen Printing Machine S600US$ 1000.00 - 26000.00MOQ: 1 Set
-
Energy Saving SMT Stencil Printer/ PCB Screen Printing Machine S1200US$ 1500.00 - 21000.00MOQ: 1 Set
-
High Precision SMT Stencil Printer/ PCB Screen Printing Machine S1200US$ 1500.00 - 25000.00MOQ: 1 Set
Specification:
Items |
F1200 |
Parameters |
|
Repeat Position Accuracy |
±0.01mm |
||
Printing Accuracy |
±0.025mm |
||
Printing Speed/Cycle Time |
<15s (Exclude Printing & Cleaning) |
||
Products Changeover |
<5Min |
||
Screen Stencil Size/Min |
1100mmX300(Standard);730mm X 300mm(Optional, pressing plate on guide rail shall be replaced) |
||
Screen Stencil Size/Max |
1500mm X 750mm |
||
Screen Stencil Thickness |
20mm ~ 40mm |
||
PCB Size/Min |
80X50mm |
||
PCB Size/Max |
1200X340mm |
||
PCB Thickness |
0.8~6mm |
||
PCB Warpage Ratio |
<1%(Based on diagonal length) |
||
Bottom of Board Size |
15mm (distance from pins to PCB) |
||
Edge of Board Size |
3mm (distance before PCB clamping) |
||
Transport High |
900±40mm |
||
Transport Direction |
Left-Right; Right-Left; Left-Left; Right-Right |
||
Transport Speed |
50-1200mm/sec programmable control |
||
Board Location |
Support System |
Magnetic pin/Side support block/Flexible automatic pin(optional) |
|
Clamping System |
Elastic side clamping/Vacuum nozzle/Extension-type Z-direction tableting |
||
Print head |
Programmable motor driven print head (pneumatic control print head: optional) |
||
Squeegee Speed |
10~200mm/sec |
||
Squeegee Pressure |
0-15kg programmable control |
||
Squeegee Angle |
60°(Standard )/55°/45° |
||
Squeegee Type |
Steel squeegee (standard), rubber squeegee, and customizable other types of squeegee . |
||
Stencil Separation Speed |
0.1~20mm/sec Programmable |
||
Cleaning Method |
Dry-type, wet-type, optional vacuum-type |
||
Table Adjustment Range |
X:±10mm;Y:±10mm;θ:±2° |
||
Type of Fiducial Mark |
Standard geometry shape of fiducial point, bonding pad / stencil hole |
||
Camera System |
Single digital camera with upward/downward vision system |
||
Air Pressure |
4~6Kg/cm2 |
||
Air Consumption |
About 0.07m3 /min |
||
Control Method |
PC Control |
||
Power Supply |
AC:220±10%,50/60HZ 1Φ 1.5KW |
||
Machine Dimensions |
2220(W) x 1220(D) X1500(H)mm (excluding the height of indicating lighthouse) |
||
Weight |
Approx:1500Kg |
||
Operation Temperature |
-20°C ~ +45°C |
||
Operation Humidity |
30%~60% |
||
Configuration:
1. Suspended print head with programmable squeegees pressure automatic adjustment system
a) Programmable pressure automatic adjustment system ensures accurate pressure control.
b) Pressures of front and rear squeegees are separately adjusted, to compensate pressure imbalance caused by fatigue deformation of squeegee to prevent from different printing quality between front and rear squeegee.
2. Standard stainless steel squeegee, unique design to improve the lifespan of squeegee blade.
3. Vision alignment system
4. Automatic Table X/Y/θ calibration.
5. PCB clamping and support system. .
a) Magnetic pins;
b) PCB flexible side clamping system to ensure no bending and deformation during PCB clamping
c) Strong vacuum suction (optional)
d) Elastic Z-direction pressing tablets (optional)
e) Flexible automatic pins(optional)
6. NC guide rails for conveyor width and speed adjustment .
7. Dry-type, wet-type and vacuum-type with arbitrary combination for stencil cleaning system.
8. Control System : IPC (Industrial Personal Computer) with Windows XP System
9. Built-in software diagnosis system.
10. Support 2D, SPC software function.
11. Standard SMEMA link port.
