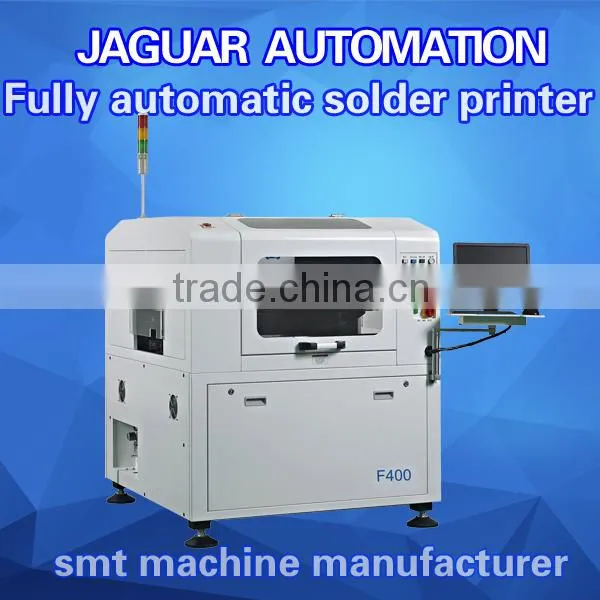

F400 Fully Automatic Solder Paste Printer for PCB Assembly
Specifications:
* The following data is obtained under ambient temperature of 25 ºC and humidity of 60%
| Items | Jaguar F450 | Parameter | |
| Repeat Position Accuracy | ±0.008mm | ||
| Printing Accuracy | ±0.015mm | ||
| Cycle Time | <8s (Excluding Printing & Cleaning) | ||
| Products Changeover | <5Min | ||
| Screen Stencil Size/Min | 470mm X 370mm | ||
| Screen Stencil Size/Max | 737mm X 737mm | ||
| Screen Stencil Size/Thickness | 20mm ~ 40mm | ||
| PCB Size/Min | 50X50mm | ||
| PCB Size/Max | 400X340mm | ||
| PCB Thickness | 0.6~6mm | ||
| PCB Warpage Ratio | <1%(Based on diagonal length) | ||
| Platform to Board distance | 13mm(standard configuration),25mm(optional configuration) | ||
| Edge to Board rim distance | 3mm | ||
| Transport Height | 900±40mm | ||
| Transport Direction | Left-Right; Right-Left; Left-Left; Right-Right | ||
| Transport Speed | 100-1500mm/sec Programmable | ||
| Board Location | Support System | Magnetic pin/Side support block/Flexible automatic pin(optional) | |
| Clamping System | Elastic side clamping/Vacuum nozzle/Elastic Z-direction tablet (Optional) | ||
| Print head | Programmable motor driven print head/ Integrated motor driven and pneumatic control print head (Optional) | ||
| Squeegee Speed | 10~200mm/sec | ||
| Squeegee Pressure | 0-15kg programmable (Standard)/ 0~0.5MPa with adjustable pressure reducing meter valve (Optional closed-loop pressure feedback system) | ||
| Squeegee Angle | 60°(Standard)/55°/45° | ||
| Squeegee Type | Steel squeegee (standard), rubber squeegee, customizable other types of squeegee | ||
| Stencil Separation Speed | 0.01~10mm/sec Programmable | ||
| Cleaning Method | Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods) | ||
| Table Adjustment Range | X: ±4mm;Y:±6mm;θ:±2° | ||
| Type of Image Fiducial Mark | Standard geometry shape of fiducial mark, bonding pad / stencil apertures | ||
| Camera System | Single digital camera with upward/downward vision system | ||
| Air Pressure | 4~6Kg/cm2 | ||
| Air Consumption | Approx 0.07m3 /min | ||
| Control Method | PC Control | ||
| Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW | ||
| Machine Dimensions | 1250mm(W) x 1450mm(D) x 1540(H)mm (excluding height of indicating lighthouse) | ||
| Weight | Approx:1100Kg | ||
| Operation Temperature | -20°C ~ +45°C | ||
| Operation Humidity | 30%~60% | ||
