Energy Saving Heating Equipment Fashionable Style

Name: Energy Saving Heating Equipment Fashionable Style
Brand: BOFIT
SKU: 108868601
Availability: InStock

US$ 50 - 2,000 MOQ: 100 Pieces

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

BOFIT

Model Number:

BFT-WGB003

Zhuji Bofit Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NIingbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name BOFIT

Model Number BFT-WGB003

Material Other, steel sheet

Type Other, Gas Stoves, gas boiler

Gas hanging stove:

Product details:

ITEM	UNIT	JLG20-A1	JLG24-A1	JLG20-A2	JLG24-A2
Input power	KW	20	24	20	24
Output power	KW	18	22	18	22
Heating efficiency	η	>91%	>91%	>91%	>91%
Energy efficiency grade	level	2	2	2	2
Reference of heating area	m³	<140	<180	<140	<180
Capacity of hot water	kg/min	10	12	10	12
Total weight	kg	34	35	35	36
Electric power	V/Hz/W	~220/50/125
Protection grade	IP	X4D
Gas typy		12T natural gas
Gas pressure	Pa	2000
Reference of gas consumption	m³	0.05-0.1/KW/h
Temperature of heating outlet water	℃	Floor heating 30℃-60℃ Radiator 30℃-80℃
Temperature of heating backlash	K	10℃-30℃
Temperature of hot water	℃	30℃-60℃
Min activation pressure of hot water	bar	0.3
Nin usage flow volume of hot water	kg/min	2.5
Pressure of hot water	bar	0.5-6
Pressure of heating system	bar	0.5-2.5
Protection pressure of heating system	bar	3
Pump head	M	5
Expansion tank volume	L	6.5
Expansion tank pressure	bar	1.1
Pipe connector		Heating3/4 Hot Water1/2 Fuel gas3/4
Smoking tube diameter	φ	60/100
Outer sizes(heightwidththickness)	mm	740x400x306

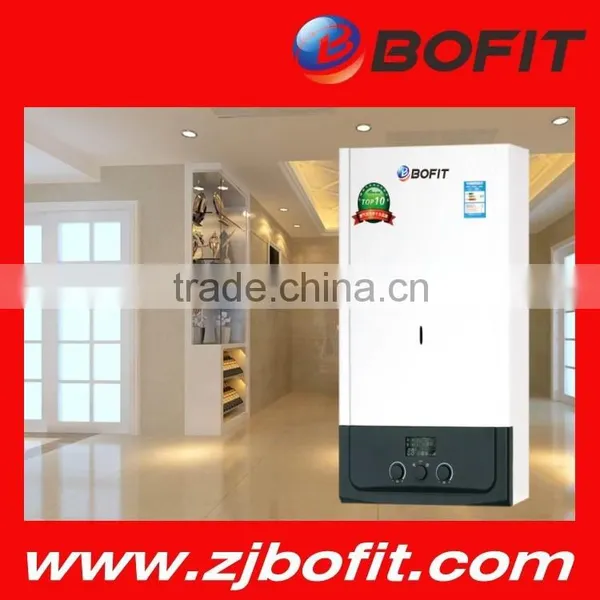

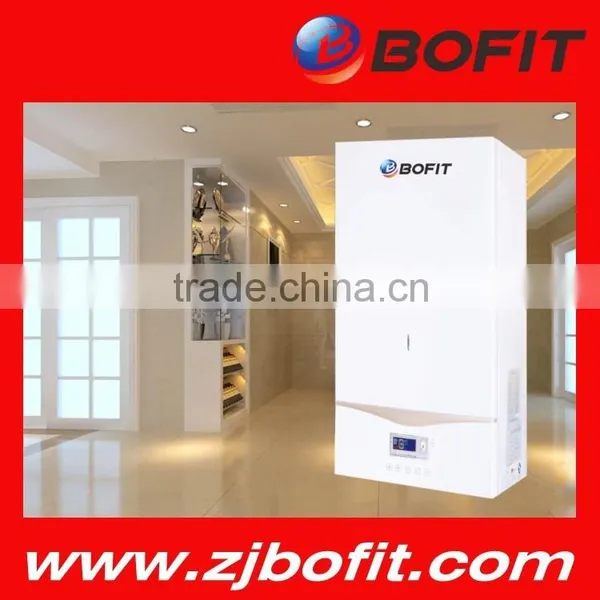

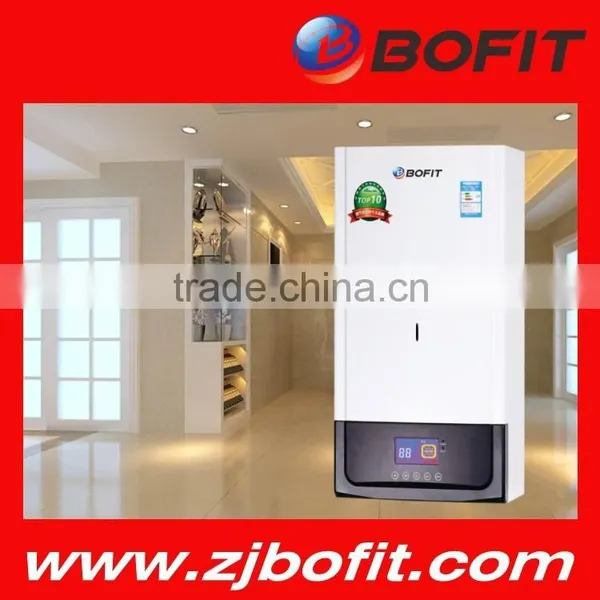

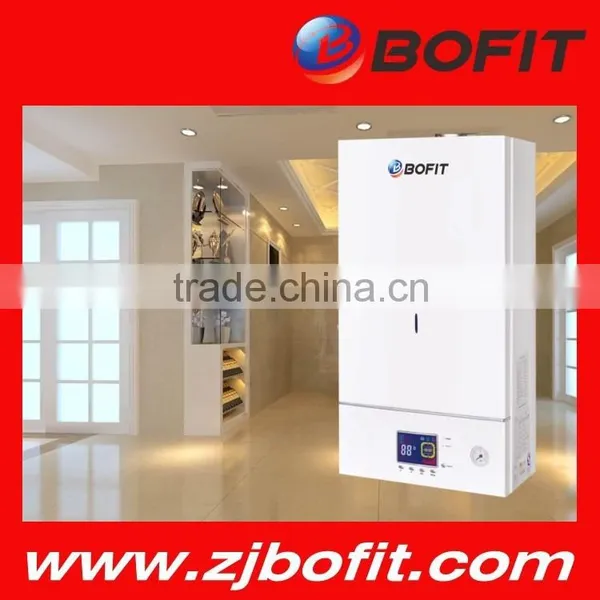

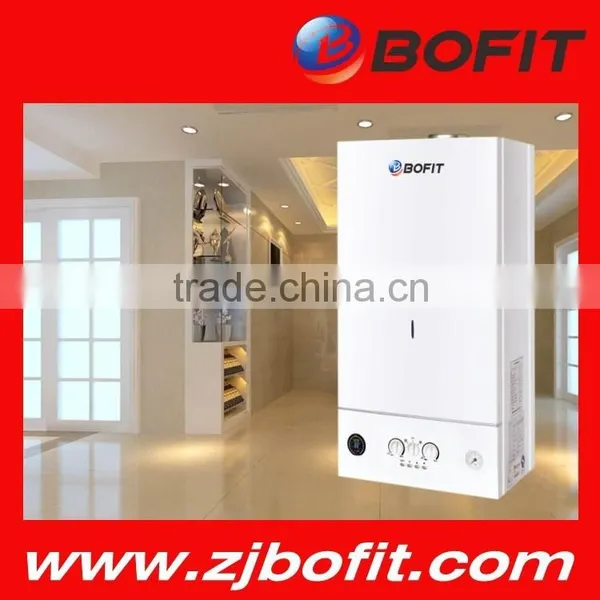

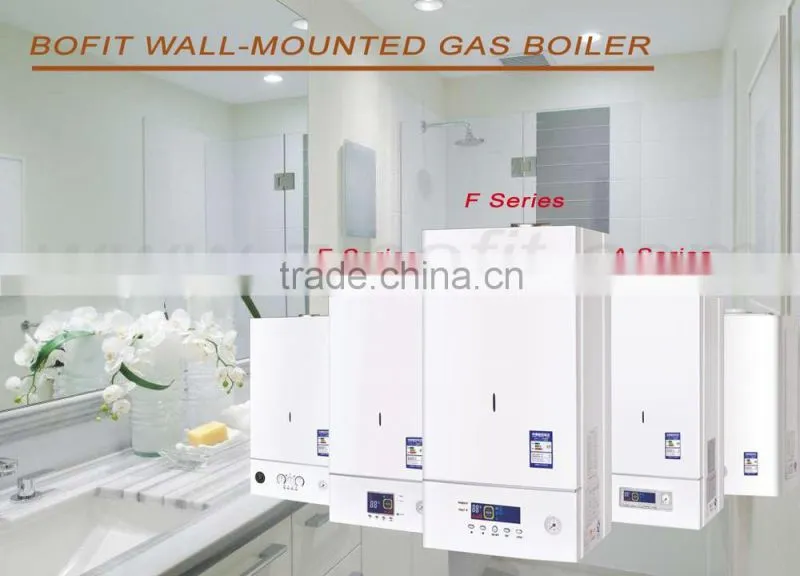

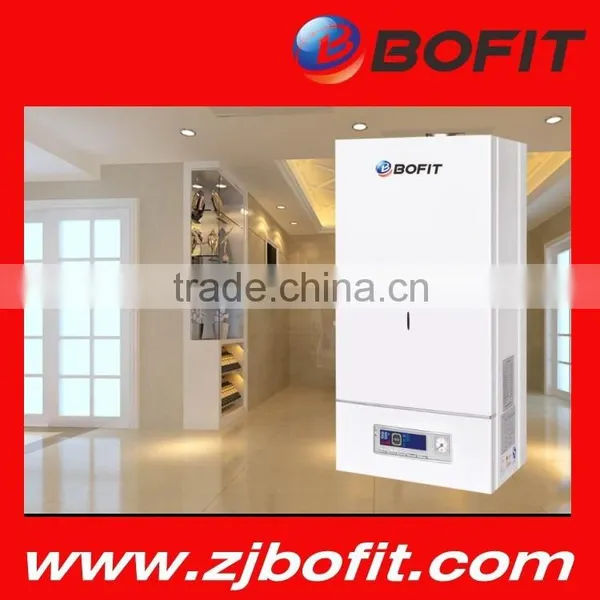

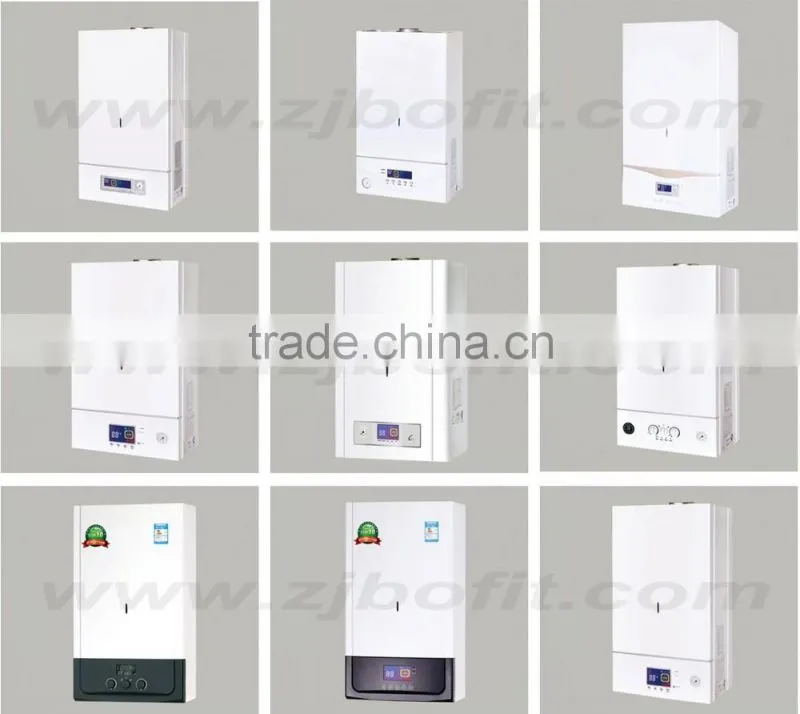

Gas hanging stove show:

Features of A series products:

Multiple safety protection gave you considerate, infallible and care free services.
Large fashionable color LCD highlights dignity.
Special design of 60℃ protection function for floor heating.
Fashinable appearace design with aesthetics and good taste.
Automatic failure detection and display, providing the greatest safety guarantee for and making after-sales service more convenient.
Full automatic MCU digital control to keep constant temperature intelligently.
Five heating modes of energy saving options(Winter heating mode, Daily timed heating mode, Weekly timed heating mode, Economic heating mode and Summer hot water mode).
Proportional continuous flame adjusting to automaticalli control the temperature of heating water and hygienic hot water. Hygienic hot water can be activated with low water pressure.
The nstantaneous power display function makes the gas consumption clear.
Temperature is adjusted via the knob, to make the operation more easy and convenient.

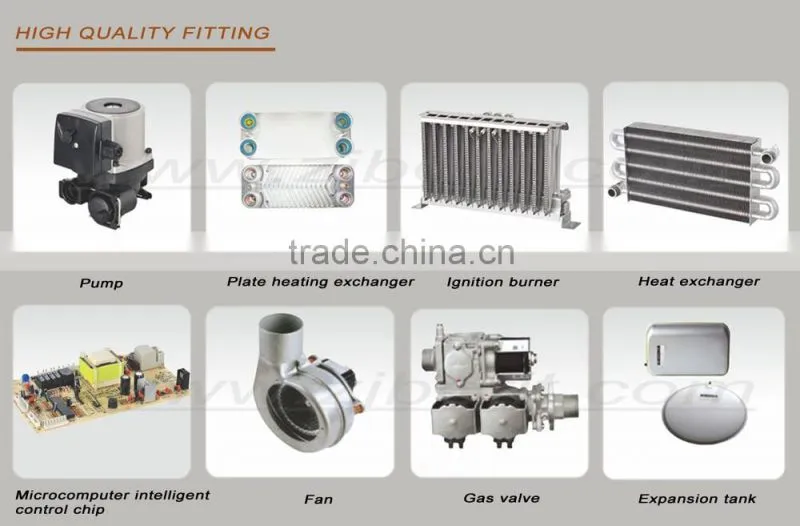

Adoption of accessories from famous factories offer more guarantee the quality.
Airproof circulation is adopted in heating system to solve the problem of oxidation erosion.
Low noise operation with quick installation and easy operation.
Indicated with 3 color pressure gauge to prevent system's water shortage.
One appearance with two optional configuration: A1 pipe heating exchange and A2 plate heat exchange. users have more available options.
