UHF Rfid Gate Control System Factory

Name: UHF Rfid Gate Control System Factory
Brand: CLOU
SKU: 108866211
Availability: InStock

US$ 1 - 1,000 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CLOU

Model Number:

CL7226C

Shenzhen Clou IOT Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CLOU

Model Number CL7226C

RUHF rfid gate control system Factory

Product Description

Overview of UHF rfid gate control system Factory

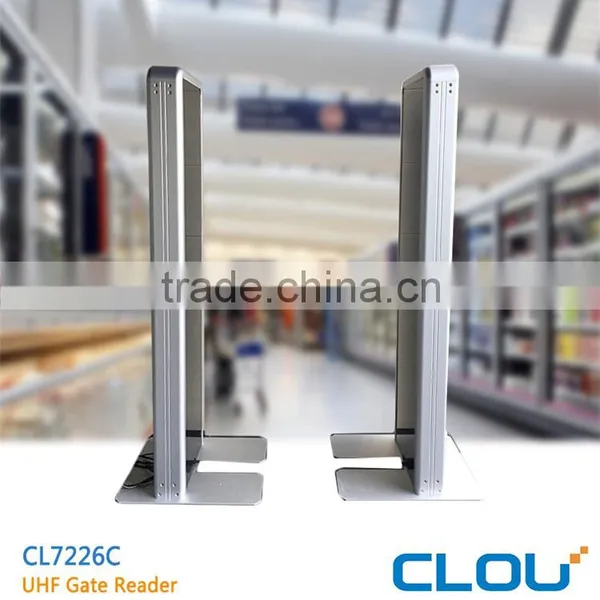

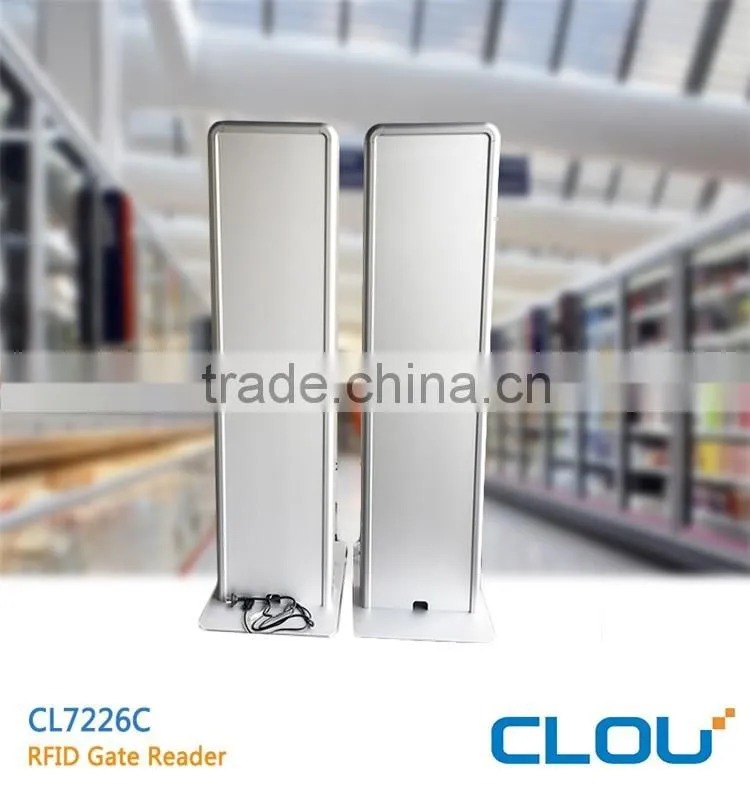

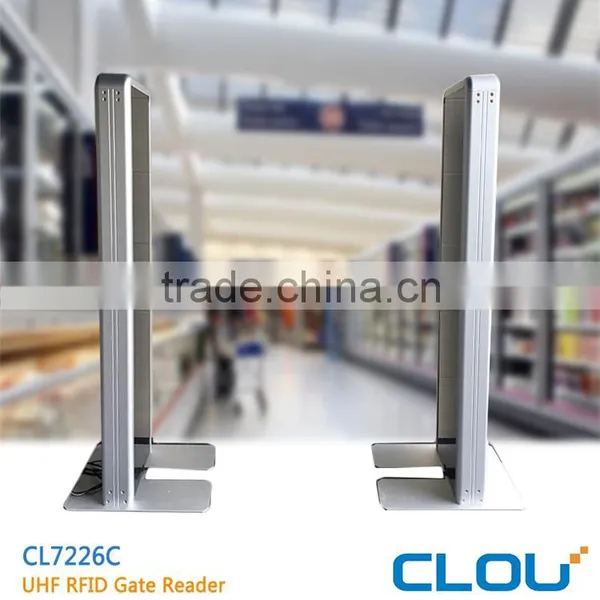

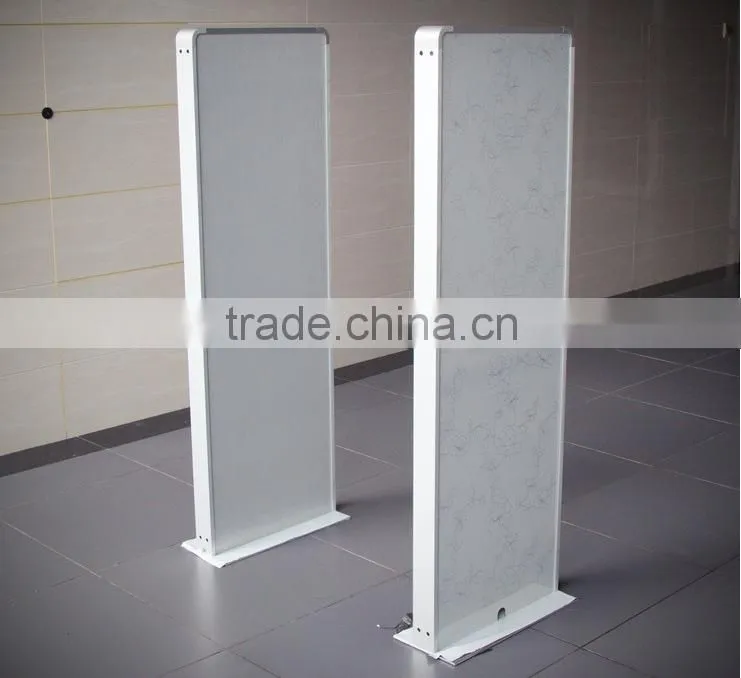

Real Product Photo of RFID Passive rfid motorcycle alarm Factory

Details of RFID Passive rfid motorcycle alarm Factory

Features	√ Powerful	special horizontal plane narrow beam antenna design, coverage area without blindness
	√ Excellent	proprietary intellectual property rights, infrared/ultrasonic wave, anti-theft alarm extensible
	√ Advanced	max performance matching with CL7206C2 4-port reader ,strong multi-tag reading
	√ Stable	24hours X 365days no crash
	√ Humanist	easy assembling, working visual and audible, wider installing range up to 1.8m
	√ Nice-looking	nice appearance design for kinds of business environment applications
	√ Almighty	apply to logistic, warehousing, library, business center, archives, attendance management

Specification	Size:	1501mm×400mm×120mm x 2pcs/set
	Weight:	26Kgs x 2pcs/set (70Kgs/set after wooden package)
	Housing Material:	Aluminum + PC
	Power supply:	AC 220V±10%55Hz
	Power consumption	45W
	Reliability(MTBF)	>10000hrs
	Main door	Frame x 1set 10.5dBi antenna x 2set Reader module/controller x 1set Infrared emission x 1set RS232 interface x1 RJ45 interface x1 Feeding cable x2pcs Infrared cable x1pc
	Secondary door	Frame x 1set 10.5dBi antenna x 2set Infrared emission x 1set Feeding cable x2pcs Infrared cable x1pc
	RFID Protocol:	ISO/IEC18000-6C / EPC C1Gen2
	Frequency:	USA:902 MHz-928MHz (FCC part 15) EU:865-868MHz (ETSI EN 302208) optional
	Reading Distance:	0-2.2m width for 1set
	Working Temperature:	-20 - +60°C
	Storage Temperature:	-30 - +70°C
	Relative Humidity:	10%-95% RH no condensing

Applications

Applications of RFID Passive rfid motorcycle alarm Factory

Value for Clients

Values	For system integrator:	Original manufacturer long term support
		Meet your high-end clients project demands
		Most cost-efficient/one stop solution
		ODM/OEM supportable
	For end user:	Promote 70% inventory speed
		Save 45% processing cost
		Avoid 30% articles unused/waste/Stealing
		Big data push keeping improvement
	For RFID partner:	Semi-finished modules product available directly
		Share Market
		Save 80% R&D cost
		Save 70% new products arrival time
