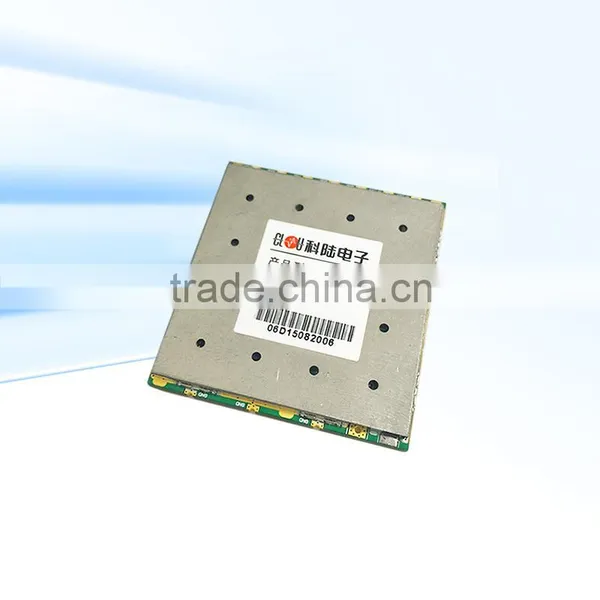

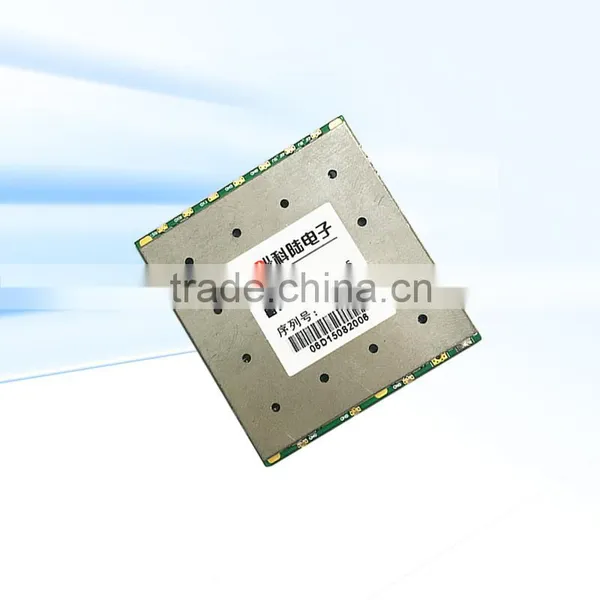

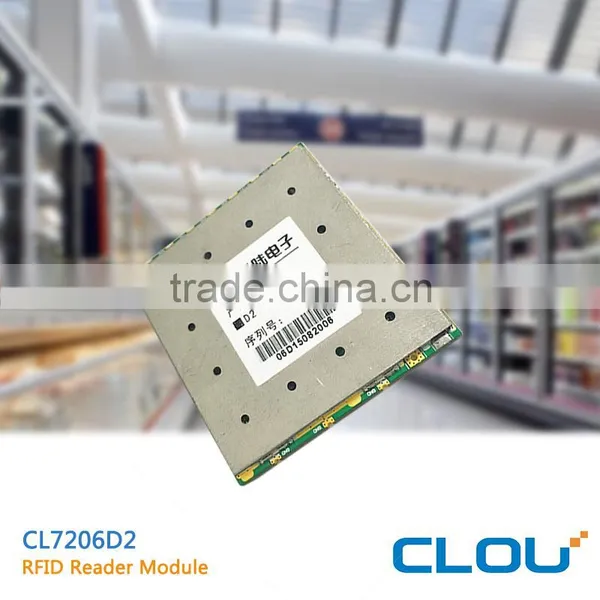

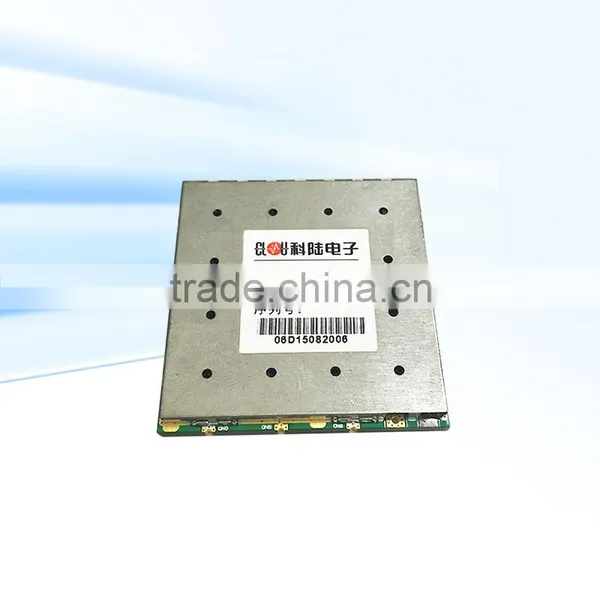

Tiny Uhf Rfid Module Support SDK and Development Board With USB Port

Name: Tiny Uhf Rfid Module Support SDK and Development Board With USB Port
Brand: CLOU
SKU: 108864339

US$ 1 - 215 MOQ: 1 Set

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CLOU

Model Number:

CL7206D2

Shenzhen Clou IOT Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CLOU

Model Number CL7206D2

Tiny uhf rfid module support SDK and development board

Product Description

Features	√ Excellent	Max Impinj R2000 RFID performance 1-10m reading
	√ Advanced	Full self-intellectual property
	√ Humanist	Standard interface for easy development
	√ Wide use	Best choice for high end RFID handheld reader
	√ All-in-one	Different standard for different countries
	√ Almighty	Apply to kinds of data collection device demands

Specification	Model No.	CL7206D2
	Protocol:	ISO/IEC18000-6B,6C / EPC C1Gen2
	Frequency:	USA:902 MHz-928MHz (FCC part 15)
		EU:865-868MHz(ETSI EN 302208)
		CHN:920-925MHz
	Output Power:	15dBm-30dBm(±1dBm) adjustable
	Power adjustment:	1dBm step-by-step
	Channel bandwidth:	<200KHz
	Frequency stability:	≤±10ppm
	Antenna interface:	2 port available
	Output VSWR	≤1.3:1 (depending on antennas )
	Interface:	RS-232(TTL)
	Work Mode:	Fixed/hop frequency optional
	Communication speed	10m/100m self-adaptable
	Reading speed	>400times/S
	Anti-collision	Excellent ant-collision algorithm, support intensive multi-tag reading
	Software	Support RSSI ,antenna detection, data filtering
	Testing condition:	connected 8dBi liner polarization antenna,-18dBm
	Reading Distance:	0-10m (depending on antennas and application environment)
	Writing Distance:	0-4m (depending on environment)
	Working Temperature:	-20 - +70°C
	Related humidity:	10%-95%

Applications

Value for Clients

Values	For system integrator:	Original manufacturer long term support
		Meet your high-end clients project demands
		Most cost-efficient/one stop solution
		ODM/OEM supportable
	For end user:	Promote 70% inventory speed
		Save 45% processing cost
		Avoid 30% articles unused/waste/Stealing
		Big data push keeping improvement
	For RFID partner:	Semi-finished modules product available directly
		Share Market
		Save 80% R&D cost
		Save 70% new products arrival time
