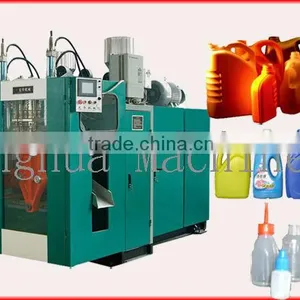

Blow Molding Machine for Shampoo Bottle

Name: Blow Molding Machine for Shampoo Bottle
Brand: LONGHUA
SKU: 108860079
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, plastic hollow products

Plastic Processed:

Zhangjiagang Longhua Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, plastic hollow products

Plastic Processed PE

Screw Design Single-screw

Automatic Grade full automatic

Place of Origin Jiangsu, China

Brand Name LONGHUA

Model Number LHB55

Voltage 380V/440V/220V

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

blow molding machine for shampoo bottle

Unit	Item	Specification	Description
Extruding system	Screw diameter	Φ55mm	Mixing model
	Max. Product Volume	2.5L	Single station and Single die-head
	Screw L/D	24:1
	Material of screw and barrel		38CrMoALA
	Plasticizing capacity	45KG/Hr	Based on HDPE 5502
	Extruding method		Invertor motor, hardness tooth surface gear box
	Driving power	15KW
	Screw revolution	10—90rpm
	Heating zones	3	Temperature medule from Mitsubishi PLC
	Heating power	3φ9KW	Solid state (SSR) and plug connection for all heaters
	Blowers	2
	Cooling function	Yes	Cooling water for feeding zone and gear box
Clamping unit	Structure	Large arm and joint operation type clamping unit with large and uniform clamping force	High speed and precious, strong clamping force
	Idle cycle time	pc/h≈300/480
	Platen dimension	290*360mm	W×H
	Platen distance	130-370mm	Min.~Max.
	Clamping force	55KN
	Mold thickness scope	135-210mm
	Mold moving stroke	Induce switch + moving	Discriminate end of mold moving up, low-speed of mold moving up, end of mold moving down and low-speed of mold moving down
	Clamping stroke	Stroke switch + moving	Discriminate end of mold opening, end of mold closing and low-speed of mold closing
