Waterproof Fixed Reader Rfid Gate

Name: Waterproof Fixed Reader Rfid Gate
Brand: CLOU
SKU: 108857683
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CLOU

Model Number:

CL7205A

Shenzhen Clou IOT Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CLOU

Model Number CL7205A

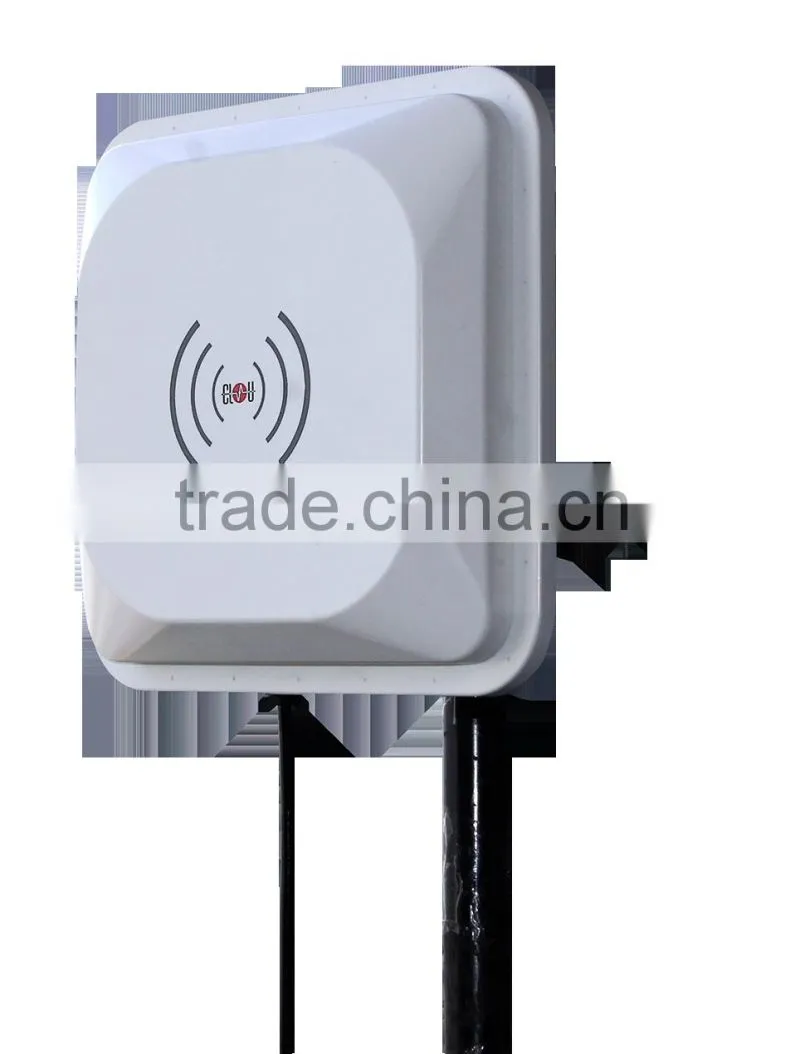

UHF waterproof fixed reader

Product Description

Features	√ Excellent	Max RFID performance, reading distance up to 1-15m (max 9-20m)
	√ Advanced	Full self-intellectual property
	√ Humanist	Standard interface for easy development
	√ Wide use	Best choice for high end RFID handheld reader
	√ All-in-one	Different standard for different countries
	√ Almighty	Apply to kinds of data collection device demands

Specification	Model No.		CL7205A
	Protocol:		ISO/IEC18000-6B,6C / EPC C1Gen2
	Frequency:		USA:902 MHz-928MHz (FCC part 15)
			EU:865-868MHz(ETSI EN 302208)
			CHN:920-925MHz
	Gain		9 dBi
	“H”beam angle		70°
	“E” beam angle		70°
	Front-back		≥20 dB
	Polarization		Right Circular or Left Circular
	Impedance		50 (Ω)
	VSWR		<1.3:1
	Maximum Input Power		100W
	Connector		SMA- male or Customizable
	IM.3rd Order(2x43dBm)		<-150dBc
	Lightning Protection		DC to ground
	Working Temperature:		-30 - +70°C
	Storage Temperature:		-40 - +85°C
	Atmospheric Pressure:		86kPa~108kPa
	Relative Humidity:		5%-95% RH no condensing

Applications

Value for Clients

Values	For system integrator:	Original manufacturer long term support
		Meet your high-end clients project demands
		Most cost-efficient/one stop solution
		ODM/OEM supportable
	For end user:	Promote 70% inventory speed
		Save 45% processing cost
		Avoid 30% articles unused/waste/Stealing
		Big data push keeping improvement
	For RFID partner:	Semi-finished modules product available directly
		Share Market
		Save 80% R&D cost
		Save 70% new products arrival time
