Specifications
blow moulding machineplastic products:bottle,drum,jerry can...
plastic material:HDPE,PP,PVC...
certificate:ISO9001,CE
2013machine make plastic ballszhangjiagang
1) Applications:
a) Usage: production of packaging utensils, asymmetric articles, stationery
facilities and aviation seats
b) Fields: medicine, chemical, foodstuff, automobile, motorcycle, and shoe
making industries
c) Products: bottles, tanks and buckets
d) max.Size: 20l
2) Advantages:
a) Computer designed medium-sized hollow blow-molding equipment
b) A perfect combination of mechanics, electronic components and liquid
c) Easy operation and maintenance, energy-saving, highly automatic
d) Products feature smooth joints
3) Characteristics:
a) Advanced Mitsubishi electrical control system, including the PLC control
system and human-machine interface control system
b) All technological operations managed on a tactile screen
c) Double-ring design in the die-head
d) Transducer system adopted in extruding system enables infinite adjustment
e) Energy saving device: de-celebrator
f) Various models: single-translation, double-translation, single die-head,
double die-head, single-layer, double-layer, double-color, visible
transparent line
g) Suitable raw materials: PE, PP, PA, PVC, HDPE, PETG
Machine Model |
unit |
LHB75N |
|
Max.Product Capacity |
L |
25 |
|
Container weight |
|
Kg |
2.5 |
Output |
|
Pc/hr |
400 |
Extruding System |
Screw Diameter |
mm |
75 |
Screw L/D Ratio |
24 |
||
Extruding Power |
Kw |
30 |
|
No.of Heaters |
4 |
||
Screw Heating Power |
Kw |
20.2 |
|
HDPE Plasticising Capapcity |
Kg/Hr |
90 |
|
Clamping System |
Clamping Force |
KN |
176 |
Platen Size |
mm |
720*600 |
|
Platen Opening Stroke |
mm |
250-700 |
|
Max.Mould Size |
mm |
440*650 |
hydraulic parts | |
Name |
Trader |
Oil pump |
HAITAC |
Valve |
TAIWAN JIUGANG |
Oil pump and connection |
TAIWAN |
Sealed part |
TAIWAN |
| |

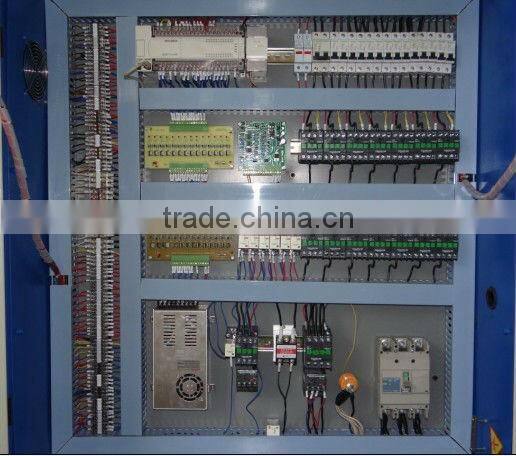

electronic parts | |
Name |
Trader |
Micro computer control system |
Japanese MITSUBISHI PLC+inductive screen |
|
Inductive screen: HITECH Electronics |
Tem’ control part |
TAIWAN YANHUA PID |
Replay |
OMRON company |
contacting |
South Korean LG |
Air switch |
South Korean LG |
Electric motor |
Three and asynchronism motor |
Power |
TAIWAN MEANWELL |
Transducer |
Taiwan DONGYUAN |
| |
Air control system | |
Name |
Trader |
Electromagnetism valve |
AIRTAC |
Payment
First pay 30% of the price as advance payment by TT. Pay 70% of the price when buyer comes to seller’s factory to pick up the goods, before the shipment.
Delivery time:
45days after the bargainer receives the advance payment.
Guarantee:
The bargainer will provide good service called “SANBAO” to the equipment. Its term is one year. In the term of “SANBAO” the attacked parts will be changed into new ones. If it is wrong because of the quality of the equipment, they will be changed for nothing by bargainer.
Service:
- bargainer will train 1 worker to operate and repair the equipment for free. It does in bargainer’s factory.
- bargainer must setup and test the equipment until it can produce normally and help to train the workers in the demander’s factory for free.
- if the is something wrong in the proceeding, the bargainer must ask someone to serve for demander after receiving the repair information. But excepting the impersonal reasons.
- if because the demander uses the Hollow Blow Extruding Machine for the first time, the bargainer will be sure to send a engineer to demander’s factory and affording technical service in one month.
