LHB120N,which can product 260Land below 260Lhollow plastic barrels and
other containers, adopts material: PP, PE, HDPE,LDPE ,ABS…..
Technical Specification
Model |
Unit |
LHB120N |
Plastic material |
|
PE,PP,PVC,HDPE... |
Max product volume |
L |
260 |
output(dry cycle) |
pc/hr |
300 |
Machine dimension |
m |
7.8*3.3*5.5 |
Total weight |
t |
38 |
Clamping force |
kn |
560-850 |
Platen opening stroke |
mm |
800-1800 |
Platen dimension |
mm |
1600*1400 |
Max mould dimension |
mm |
1200*1800 |
Cooling water pressure |
Mpa |
0.3 |
Cooling water consumption |
L/min |
300 |
Air pressure |
mpa |
1 |
Air consumption |
m3/min |
1.8 |
Screw diameter |
mm |
120 |
Screw L/D ratio |
L/D |
25-32 |
Output of HDPE |
Kg/hr |
200-320 |
No. of screw heating zone |
zone |
5-6 |
Screw heating power |
kw |
30 |
Extruder motor power |
kw |
90-132 |
No. of die heating zone |
zone |
6 |
Die head heating power |
kw |
32 |
Max die diameter |
mm |
500-620 |
Oil pump driving power |
kw |
37-45 |
Accumulator capacity |
L |
20 |
Voltage |
|
380V/50HZ |
FEATURES
The automatic blow molding machines, A wide variety of materials can be used for the machine, which are suitable for producing 150L-260L The clamping system is a high-precision double-station linear guide, extrusion system using a hard gear reducer and inverter. The die head system adopts central-incoming extrusion die made of special steel, imported hydraulic valve and seal parts with proportional control valve.The control system consists of PLC and Human-machine interface imported from Japan, an automatic temperature control module and imported electrical parts.
Components list:
Name |
Supplier |
Electrical System |
1. PLC: MITSUBISHI
|
Hydraulic system |
Oil pump:HYTEC Hydraulic valve:JINSHUN Proportional valve:JINSHUN Sealing: DINGJI |
Pneumatic Unit |
Main valves: AIRTAC |

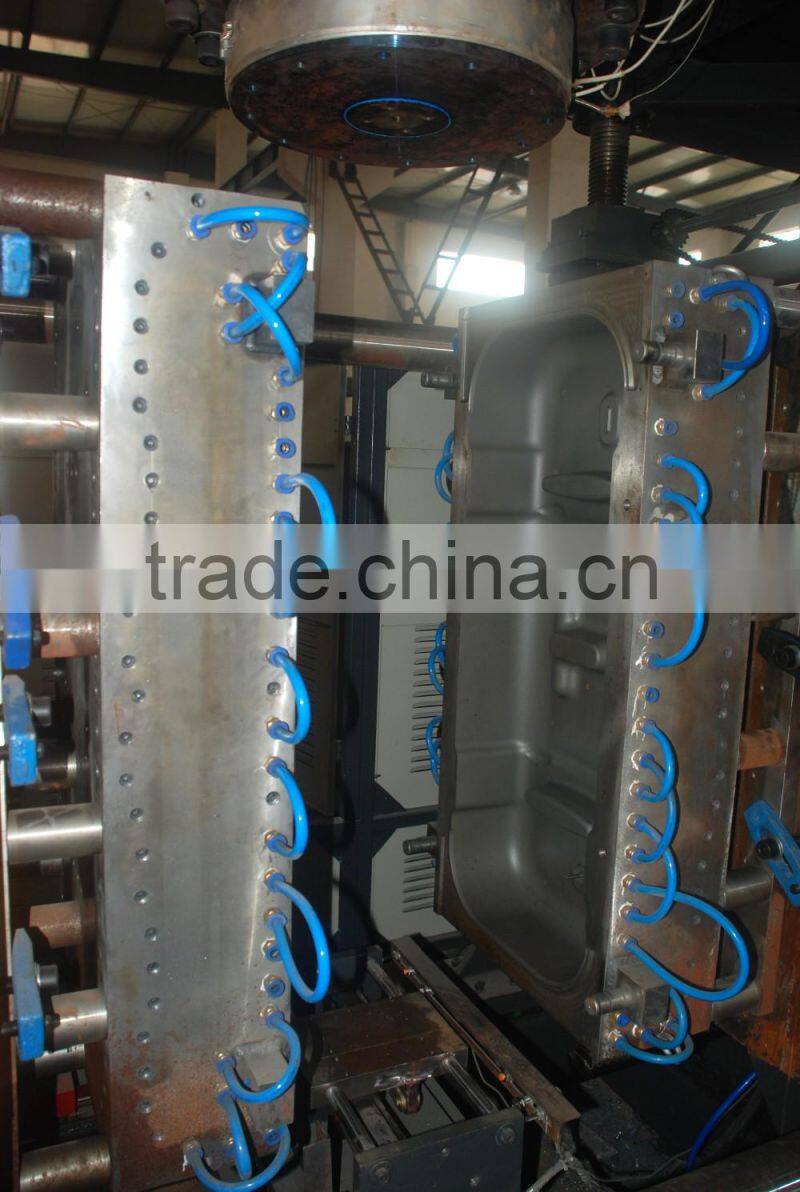

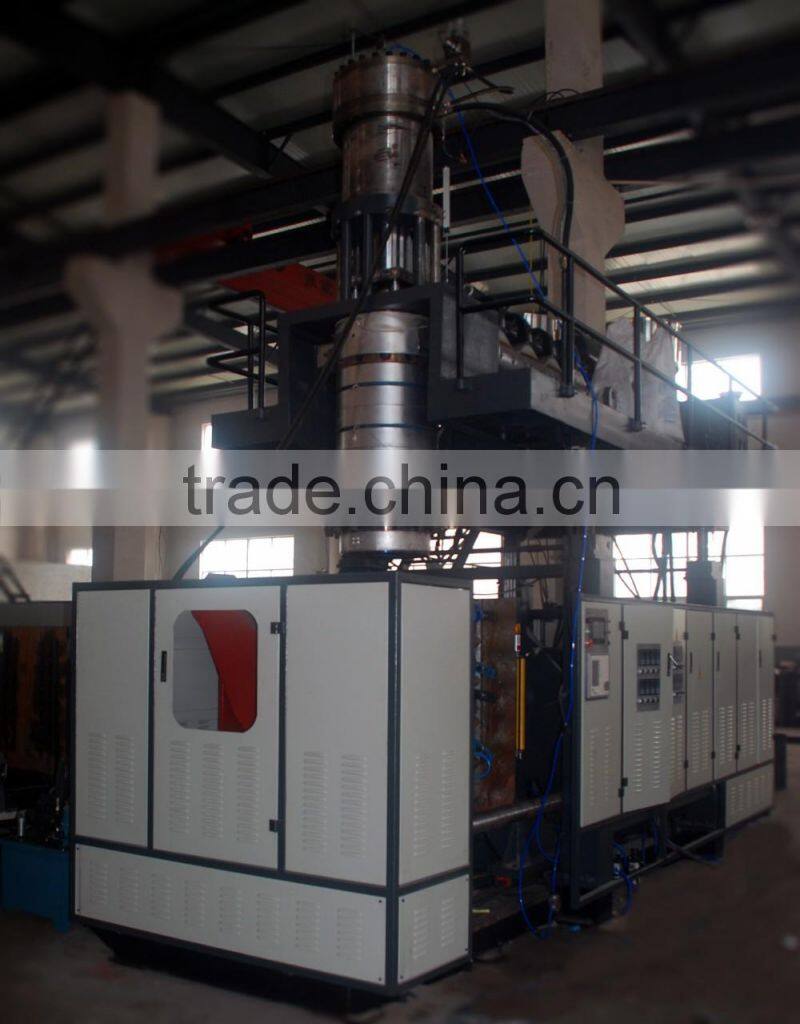

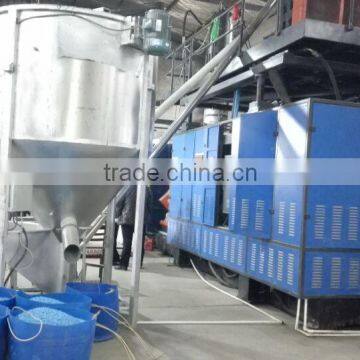

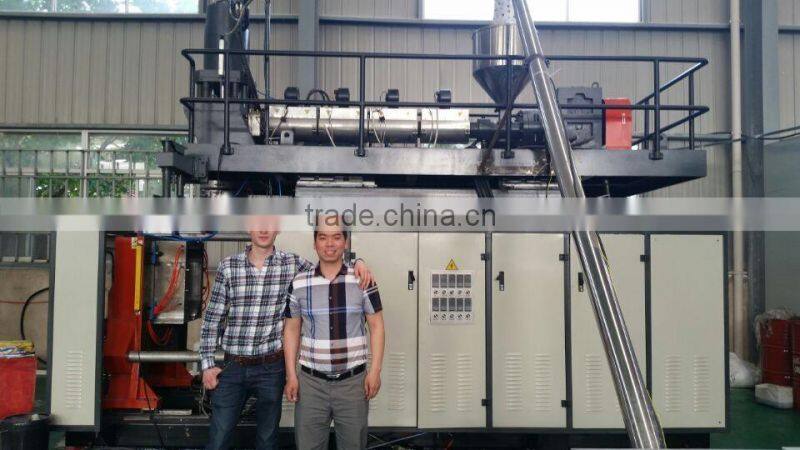

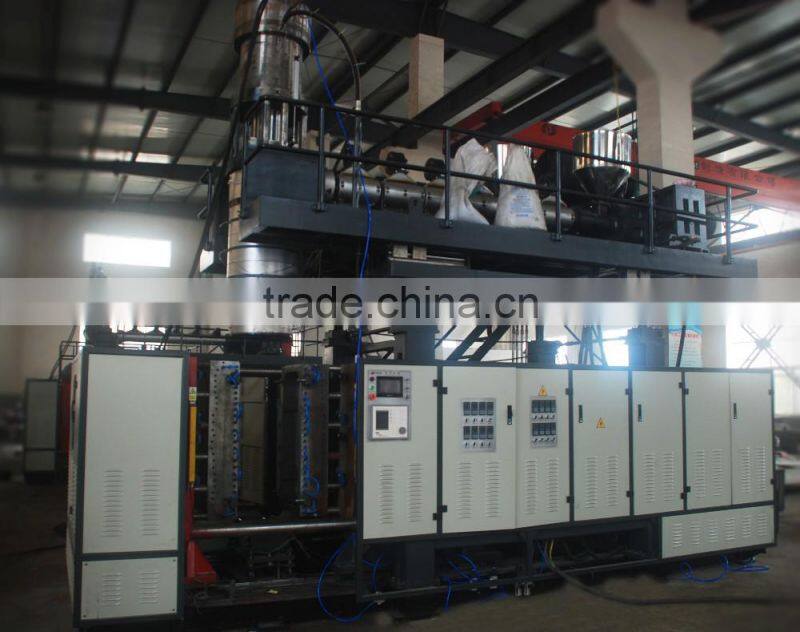

Machine part photos:
First pay 30% of the price as advance payment. Pay 70% of the price when buyer comes to
seller’s factory to pick up the goods. and the check and accept when the test is done in buyer’s factory.
The bargainer will provide good service called “SANBAO” to the equipment. Its term is one year.
In the term of “SANBAO” the attacked parts will be changed into new ones. If it is wrong because of
the quality of the equipment, they will be changed for nothing by bargainer.

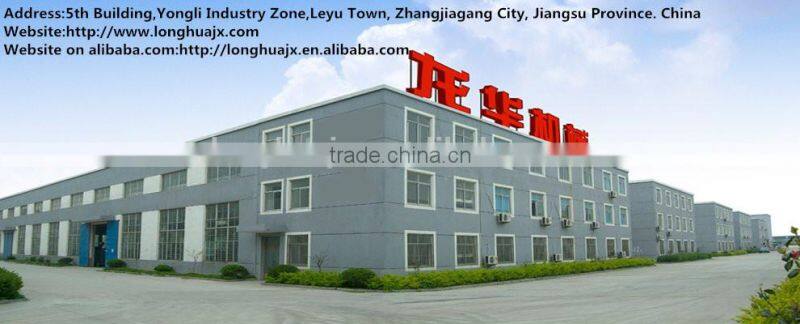

Long hua Machinery Co., Ltd. is one of the biggest production bases of blow molding machinery in China. The company is majoring in the field of designing, manufacturing and selling all types of blow molding equipment which are suitable for manufacturing the hollow plastic products such as plastic bottles, pots, barrels, boxes, bags, toys, plastic trays, superbig p1astic barrels etc with the occupation from 0.005to200 liter. We have worldwide1y sold to Southeast Asia, Europe, America, Arabia countries etc. We always find ways to make the highest qua1ity products international1y.
