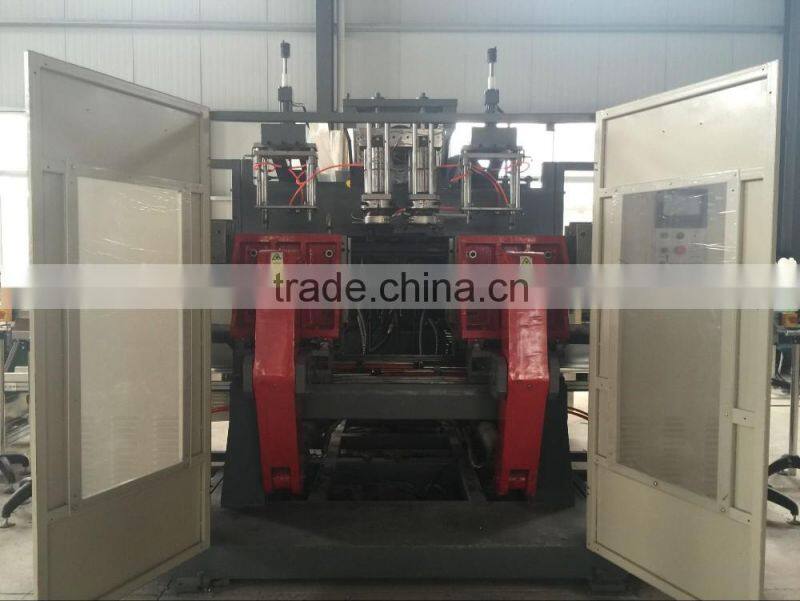

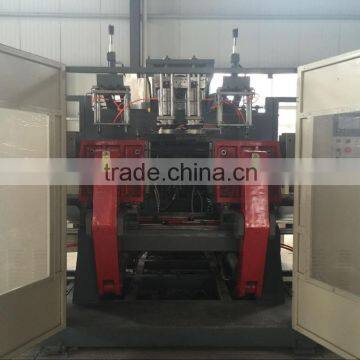

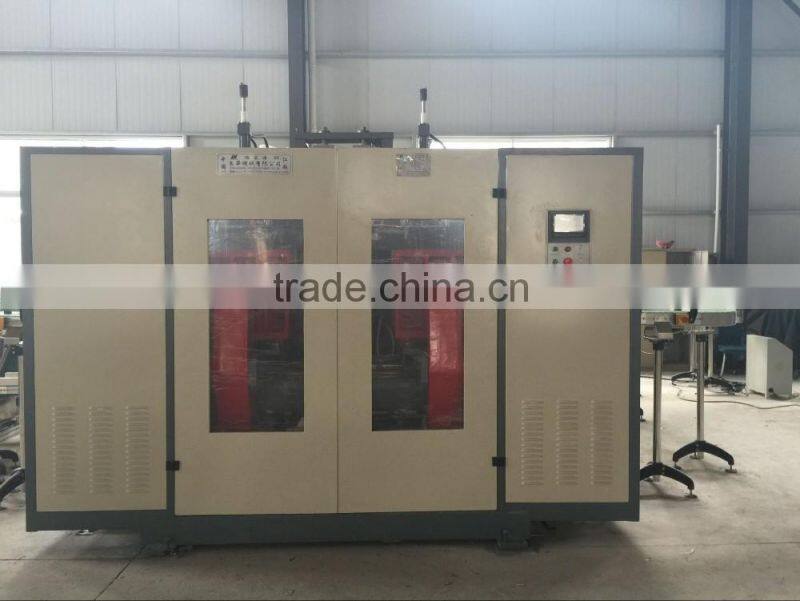

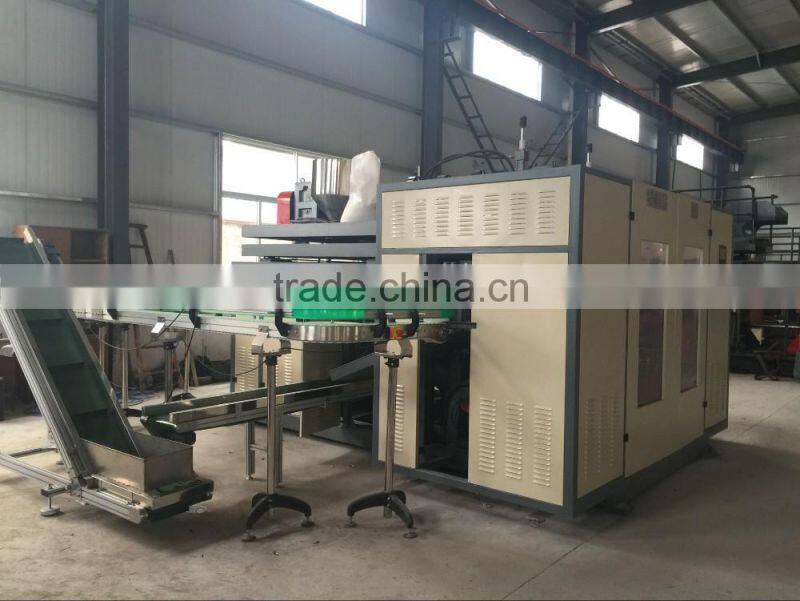

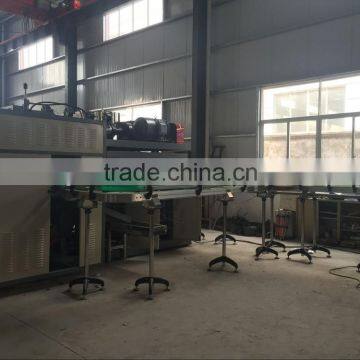

Help Center1L.2L.3L.4L Plastic Bottles Blow Moulding Machine Price
Related Products
-
Fully Automation Blow Molding Machine /Blow Moulding MachineUS$ 32,000 - 35,000MOQ: 1 Set -
Blow Moulding Plastic Bottles Making MachineUS$ 23,000 - 28,000MOQ: 1 Set
-
High Barrier Composite Bottle Plastic Machinery Plastic Machinery Blow Molding MachineNegotiableMOQ: 1 Set
-
4L-5LJerry Can Fully Automatic Blow Molding MachineNegotiableMOQ: 1 Set
-
10 l Barrel Extruder Blow Molding Machine, Fully Automatic Hollow Blow Molding MachineUS$ 32,580 - 32,800MOQ: 1 Set
Parameters | |
Specifications | |
Machine Model | |
|
LHB80D |
Max.Product Capacity | |
|
12L |
Output(Cycle Time) | |
|
700*2 Pc/Hr |
Machine Dimension | |
|
3.5*3.1*2.9 m |
Machine Weight | |
|
5.8 T |
Power | |
Total Power | |
|
55 Kw |
Average power consumption | |
|
43 Kw |
Air Pressure | |
|
0.6 bar |
Air Consumption | |
|
0.5/1.0 M3/min |
Cooling Water Pressure | |
|
4/8 bar |
Extruding System | |
Screw Diameter | |
|
80 mm |
Screw L/D ratio | |
|
24 |
Extruder driving power | |
|
37 Kw |
No.of Heaters | |
|
4 |
Screw Heating Power | |
|
14 Kw |
HDPE Plasticising Capapcity | |
|
115Kg/H |
Components list:
Name |
Supplier |
Electrical System |
1. PLC: MITSUBISHI
|
Hydraulic system |
Oil pump:HYTEC Hydraulic valve:JINSHUN Proportional valve:JINSHUN Sealing: DINGJI |
Pneumatic Unit |
Main valves: AIRTAC |

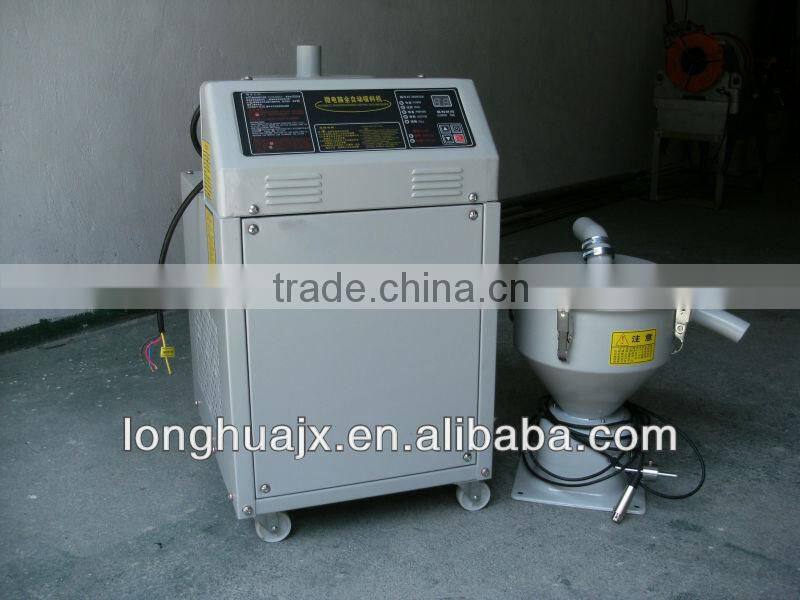

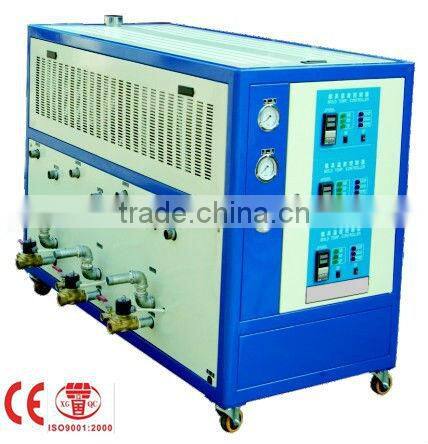

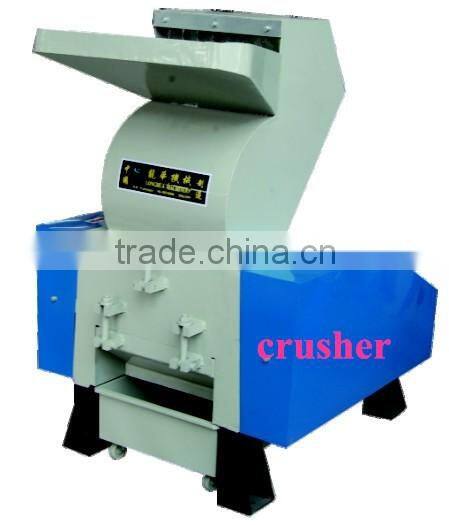

Auxiliary machine for your choice
Payment term:30%TT as advance,The rest 70% is paid after both parties confirm before shipping.
Delivery time: in 30 working day after receive advance.
Packing:pe film packing
INSTALLATION AND START-UP IN THE BUYER’S PLANT
The buyer can do the inspection in our plant after the machine is finished. Moreover, if the buyer needs, after the machine reaching the buyer’s factory, the buyer places the machine to the right position and informs the supplier. The supplier will send one special man to test run the machine until it is running in normal state. The buyer bears expenses on accommodation and meals, air ticket, etc. Our engineer could stay in the buyer’s factory for 10 days for free.
GUARANTEE FOR QUALITY
Our guarantee is valid for a period of 12 months for above-mentioned machine. If the malfunction caused of the machines’ self quality within this period, we will troubleshoot it for free.
Stochastic spare parts, fitting tool quantity and supply Method
The supplier provides the stochastic spare parts one set according to the instruction booklet detailed list, guaranteed year to year provides vulnerable part

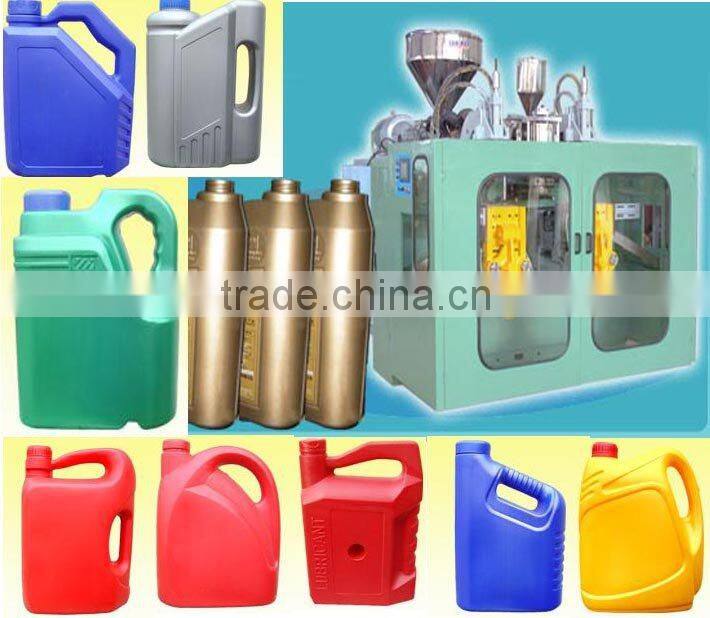

Long hua Machinery Co., Ltd. is one of the biggest production bases of blow molding machinery in China. The company is majoring in the field of designing, manufacturing and selling all types of blow molding equipment which are suitable for manufacturing the hollow plastic products such as plastic bottles, pots, barrels, boxes, bags, toys, plastic trays, superbig p1astic barrels etc with the occupation from 0.005to200 liter. We have worldwide1y sold to Southeast Asia, Europe, America, Arabia countries etc. We always find ways to make the highest qua1ity products international1y.
