Rfid Fixed Reader With Four Antenna Port CL7206C2

Name: Rfid Fixed Reader With Four Antenna Port CL7206C2
Brand: CLOU
SKU: 108853479
Availability: InStock

Shenzhen Clou IOT Technologies Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

CLOU

Model Number:

CL7206C2

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name CLOU

Model Number CL7206C2

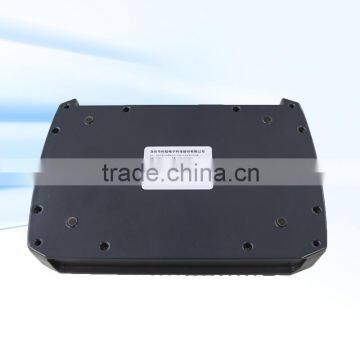

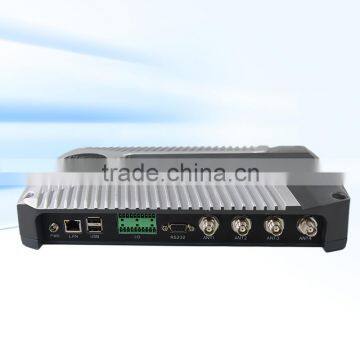

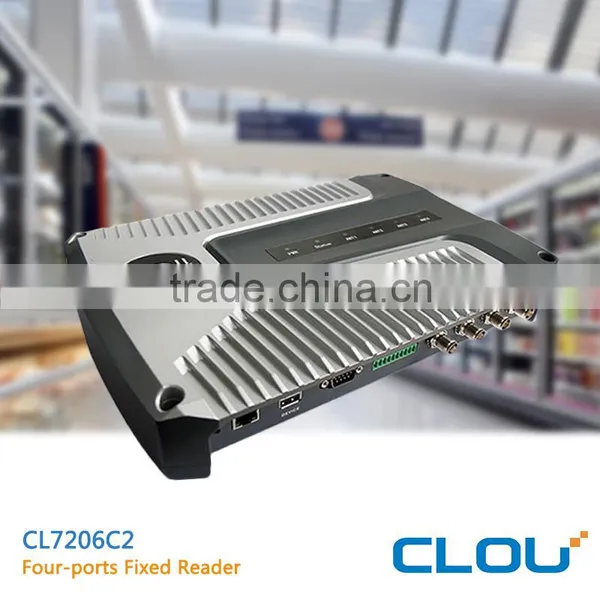

Clou CL7206C2 rfid fixed reader with four antenna port

Product Description

Features	√ Powerful	ARM9 CPU , double power amplifier synthetic circuit
	√ Excellent	Max Impinj R2000 performance up to 10-20m
	√ Advanced	Anti-collision, > 400 times reading each second
	√ Stable	24hours X 365days no crash
	√ Humanist	Kinds of communication interfaces supportable, Bluetooth, WIFI wireless methods extensible
	√ Almighty	Apply to kinds of data collection demands

Specification	Model No.		CL7206C2
	Operation System		Linux 2.6
	Capacity		DDR SDRAM :128M; ROM: 256M
	Material		Casting Aluminum
	UHF RFID		ISO/IEC18000-6B,6C / EPC C1Gen2
	Standard		USA: 902 MHz-928MHz (FCC part 15) EU: 865-868MHz (ETSI EN 302208) CHN: 920-925MHz(CMII)
	Output Power		20dBm-30dBm(±1dBm) adjustable
	Channel Bandwidth		<200KHz
	Frequency stability		≤±10ppm
	Interface		RS-232, RS-485,Wiegand, RJ45, USB2.0,Wi-Fi/Bluetooth optional
	Work Mode		Fixed/hop frequency optional
	Communication speed		10m/100m self-adaptable
	Reading speed		>400times/S
	I/O interface		4 optcoupler input/ 4 relay output
	Anti-collision		Support multi-tag reading,intensive reading
	Software		Support RSSI ,antenna detection, online update, data filtering
	Reading Distance:		0-20m (depending on environment)
	Writing Distance:		0-8m (depending on environment)
	Power supply:		DC 24V/2.5A

Applications

Value for Clients

Values	For system integrator:	Original manufacturer long term support
		Meet your high-end clients project demands
		Most cost-efficient/one stop solution
		ODM/OEM supportable
	For end user:	Promote 70% inventory speed
		Save 45% processing cost
		Avoid 30% articles unused/waste/Stealing
		Big data push keeping improvement
	For RFID partner:	Semi-finished modules product available directly
		Share Market
		Save 80% R&D cost
		Save 70% new products arrival time
