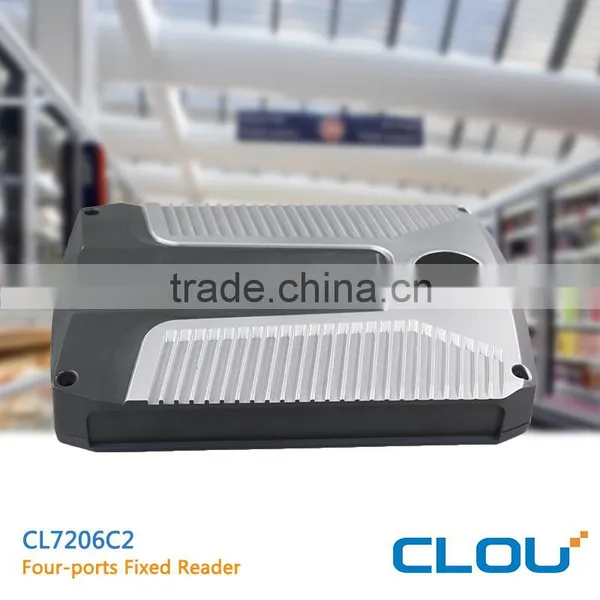

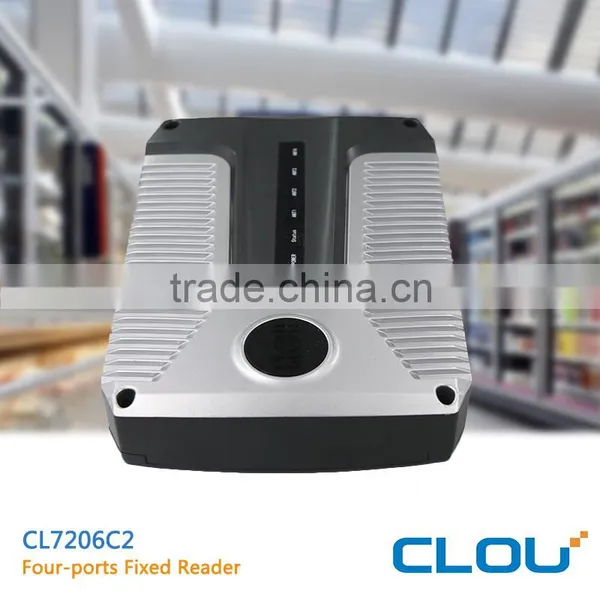

Four-port rfid fixed reader writer, 15m long range rfid reader, uhf rfid reader with Linux OS

Features

 √  Powerful

ARM9 CPU , double power amplifier synthetic circuit

√  Excellent

Max Impinj R2000 performance up to 10-20m

 √  Advanced

 Anti-collision, > 400 times reading each second

 √  Stable

 24hours X 365days no crash

 √  Humanist

Kinds of communication interfaces supportable, Bluetooth, WIFI wireless methods extensible

 √  Almighty

 Apply to kinds of data collection demands

Specification

 Model No.

 CL7206C2

 Operation System

 Linux 2.6

 Capacity

 DDR SDRAM :128M;   ROM: 256M

 Material

 Casting Aluminum

 UHF RFID

ISO/IEC18000-6B,6C / EPC C1Gen2

Standard

USA: 902 MHz-928MHz (FCC part 15)

EU: 865-868MHz (ETSI EN 302208)

CHN: 920-925MHz(CMII)

Output Power

20dBm-30dBm(±1dBm) adjustable

Channel Bandwidth

<200KHz

Frequency stability

≤±10ppm

Interface

RS-232, RS-485,Wiegand, RJ45, USB2.0,Wi-Fi/Bluetooth optional

Work Mode

Fixed/hop frequency optional

Communication speed

10m/100m self-adaptable

Reading speed

>400times/S

I/O interface

4 optcoupler input/ 4 relay output

Anti-collision

Support multi-tag reading,intensive reading

Software

Support RSSI ,antenna detection, online update, data filtering

Reading Distance:

0-20m (depending on environment)

Writing Distance:

0-8m (depending on environment)

Power supply:

DC 24V/2.5A

Values

For system integrator:

Original manufacturer long term support

 Meet your high-end clients project demands

 Most cost-efficient/one stop solution

ODM/OEM supportable

For end user:

Promote 70% inventory speed

Save 45% processing cost

Avoid 30% articles unused/waste/Stealing

 Big data push keeping improvement

For RFID partner:

Semi-finished modules product available directly

Share Market

 Save 80% R&D cost

 Save 70% new products arrival time

Why CLOU IOT

 √ History

Group 1996-2015, 3000 employees

 √  Stock code

 SZ002121 from 2007

 √  R&D team

 More than 700

 √  Production

 Self-owned 8 production lines

 √ International

 More than 100countries

 √  RFID

 Started from 2003, 36 patents

 √ Certificates

 ISO9001/14001
