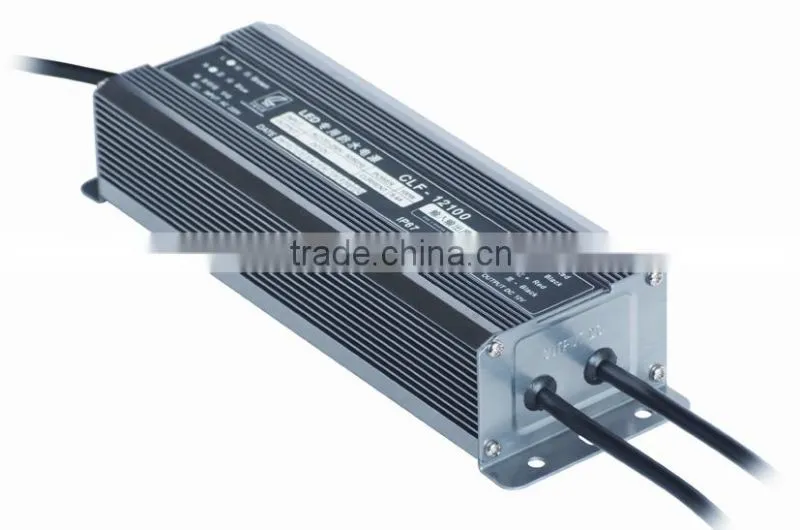

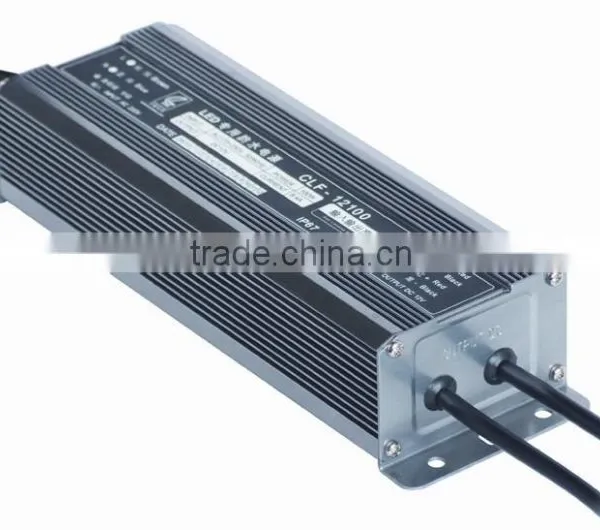

100W Aluminum Case Economy Constant Voltage waterpoof led power supply

Specifications

1.Full sealed aluminum case
2.Fully encapsulated with IP67 level,high reliability
3.Protections: Over load/Short circuit



MODEL		200w-5v-40A
OUTPUT	DC VOLTAGE	5V
	OUTPUT POWER	200W
	CURRENT RANGE	0-40A
	RIPPLE & NOISE(max.)	50mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE
	CONNECTION TERMINAL	MARK: GND , DC+
	SETUP,RISE TIME	800ms, 50ms at full load±2.0%
	HOLD UP TIME	20ms
INPUT	VOLTAGE RANGE	110/220VAC Selected
	AC CURRENT(Typ.)	0.35A/ 226VAC    0.18A/ 240VAC
	CONNECTION TERMINAL	MARK: FG,AC-L, AC-N,
	INPUT FREQUENCY	47-63Hz
	EFFICIENCY(Typ.)	78%
	INRUSH CURRENT(Typ.)	COLD START 30A/230VAC  0.5Ma/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0°C ~ +45°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20°C ~ +85°C 10~95% RH
	TEMP. COEFFICIENT	±0.05%/°C
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	SAFTY STANDARDS	CE EN60950-1 Approved
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	EMI CONDUCTION	Compliance to EN55022
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN55024
OTHERS	DIMENSION	L88*W90*H38MM
	WEIGHT	0.23Kg,52PCS/Carton
	SHELL MATERIAL	Chassis:1.0mm thickness aluminium;Cover:0.7mm thickness iron(silver plating







AC input voltage range…………………………………………… 176-264VAC

Input frequency…………………………………………………………47-63Hz

Line regulation(full load) ……………………………………………… ±0.5%

Output over load protection……………105%-150% hiccup mode, auto-recovery

Rise, hold up time……………………………………100mS 10mS at full load

Withstand voltage…………I/P-O/P, I/P-FG: 1.5KVAC, O/P-FG: 0.5KVAC,1 min

Working temperature…………-20℃~+60℃(refer to temperature derating curve)

Storage temperature……  -40℃~+85℃@100% 20%~95%RH (non condensing)

Safety standards……………… UL1310,class 2,TUV,EN60950-1,EN61347-2-13

EMC standards………………………………………………… FCC PART15J

Cooling method………………………………………Free air cooling convection





Model No.	DC output	Tol.	R&N	Effi.
CV-60WG-5(CLF-05060)	5V,0~8A	±5%	100mV	72%
CV-60WG-12(CLF-12060)	12V,0~5A	±3%	120mV	80%
CV-60WG-15(CLF-15060)	15V,0~4A	±2%	150mV	80%
CV-60WG-24(CLF-24060)	24V,0~2.5A	±2%	240mV	82%
CV-60WG-36(CLF-36060)	36V,0~1.67A	±1%	360mV	82%
CV-60WG-48(CLF-48060)	48V,0~1.25A	±1%	480mV	84%
