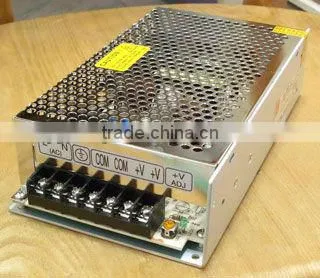

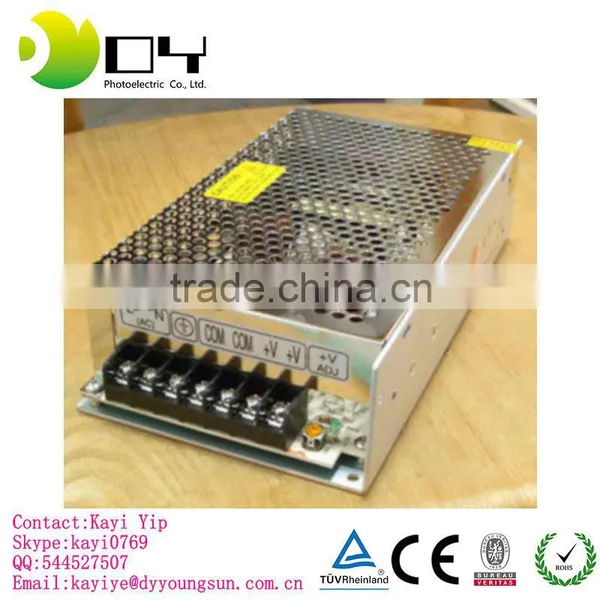

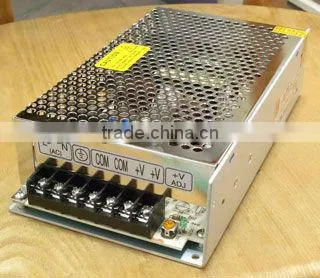

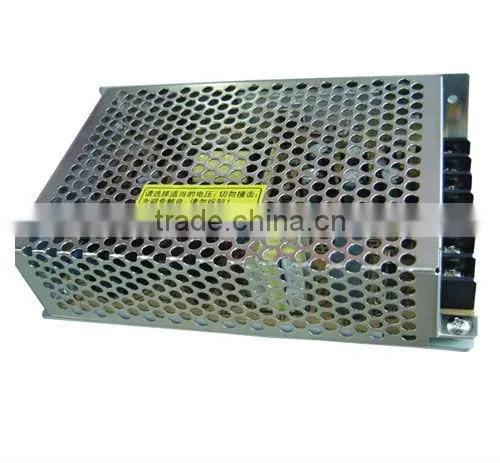

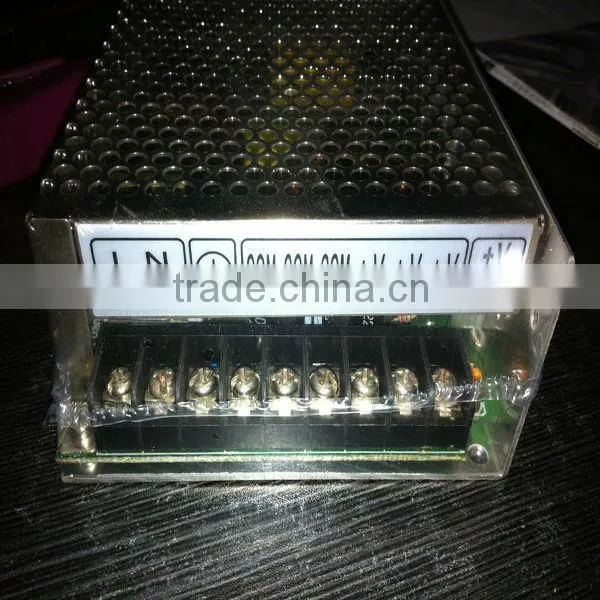

5V 40A 200w LED Power Supply

US$ 10 - 14 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DY power supply

Dongguan Deying Photoelectric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DY

Model Number DY power supply

Output Power 101 - 200W

Input Voltage 220V

Output Voltage 200w

Output Frequency 0-40A

Output Current 200w

Specifications

5V LED power supply
1.Protection:Short circuit/Over load/Over voltage
2.5v 40A 200w
3.2 Years Warranty

MODEL		200w-5v-40A
OUTPUT	DC VOLTAGE	5V
	OUTPUT POWER	200W
	CURRENT RANGE	0-40A
	RIPPLE & NOISE(max.)	50mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	CONNECTION TERMINAL	MARK: GND , DC+
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	20ms
INPUT	VOLTAGE RANGE	110/220VAC Selected
	AC CURRENT(Typ.)	0.35A/ 226VAC 0.18A/ 240VAC
	CONNECTION TERMINAL	MARK: FG,AC-L, AC-N,
	INPUT FREQUENCY	47-63Hz
	EFFICIENCY(Typ.)	78%
	INRUSH CURRENT(Typ.)	COLD START 30A/230VAC 0.5Ma/230VAC
	LEAKAGE CURRENT	<3.5mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0°C ~ +45°C (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20°C ~ +85°C 10~95% RH
	TEMP. COEFFICIENT	±0.05%/°C
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	SAFTY STANDARDS	CE EN60950-1 Approved
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	EMI CONDUCTION	Compliance to EN55022
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN55024
OTHERS	DIMENSION	L88W90H38MM
	WEIGHT	0.23Kg,52PCS/Carton
	SHELL MATERIAL	Chassis:1.0mm thickness aluminium;Cover:0.7mm thickness iron(silver plating
