Home > Products > New Products > High Alumina Wear Resistant Castable Block

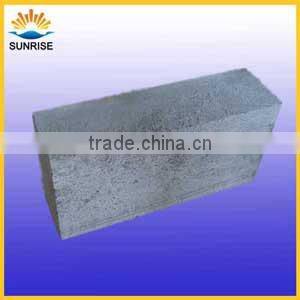

High Alumina Wear Resistant Castable Block
- Tianjin Port Qingdao Port Shanghai Port China
- T/T L/C D/P D/A Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | China | |||
| Material | Alumina Block | SiO2 Content (%) | 19 | |
| Al2O3 Content (%) | 73 | |||
| CaO Content (%) | 0.5 | |||
| Model Number | TY-GM5 | Brand Name | Sunrise |
Product Description
Specifications
Wear Resistant Castable Block1.High refractoriness
2.Excellent abrasion resistance
3.Good creep resistance
Wear Resistant Castable Block
Features
1.High refractoriness
2.Good abrasion and creep resistance
3.High density
Applications
Wear resistance bricks are mainly used in areas that require high abrasion and temperature resistance, such as gliding rail bricks in steel pusher metallurgical furnaces, the tapping platform (tapping spout) style walking beam furnaces, and also as the interior for destructors.
Physical properties and chemical composition
Item | Behaviors TY-GM5 | |||
Special | Typical | |||
Chemical Composition % | Al2O3 | 71-74 | 73 | |
ZrO2 | 4.5-6 | 5.5 | ||
SiO2 | 17-20 | 19 | ||
Fe2O3 | ≤0.5 | 0.5 | ||
Na2O | ≤1.0 | 1.0 | ||
CaO | ≤0.5 | 0.5 | ||
Apparent Prosity (%) | 5-8 | <8 | ||
True density g/cm3 | ≥3.0 | 3.54 | ||
Cold Crushing Strength Mpa | ≥250 | 350 | ||
Hot Crushing Strength 1300°C Mpa |
| 45 | ||
Line Expansion 1150°C % |
| 0.9 | ||
Thermal conductivity 1250 °C: W/MK |
| 4.6 | ||
Bulk Density (g/cm3) | PT(RN) |
| ≥3.0 | |
WS(VF) |
| ≥3.2 | ||
Crystallographic analysis % | Corundum | 39 | ||
Mullite | 41 | |||
Glass Phase: | 15 | |||
Baddeleyite | 5 | |||
Trading Process
1.We offer free of charge samples.
2..We give suggestions to customers according to your specific requirement to extend the service life of your kiln and save money for you.
3.We pay much attention to the production procedures and testing.
4.We offer good after-sale service.
Brief Introduction of Sunrise
Zhengzhou Sunrise Refractory Co., Ltd. is mainly engaged in the production and development of refractory
materials for glass , petrochemistry, metallurgy, construction and nonerrous metal industries. Our main
products include fused cast AZS 33, 36,41, fused cast αβ alumina brick, crucibles, furnace fireclay bottom
block, silica, high alumina, magnesia, corundum, chrome, zircon, mullite, zirconia mullite, silicon carbide,
sillimanite, alumina bubble bricks, various insulation bricks, and ceramic fiber products,etc.
