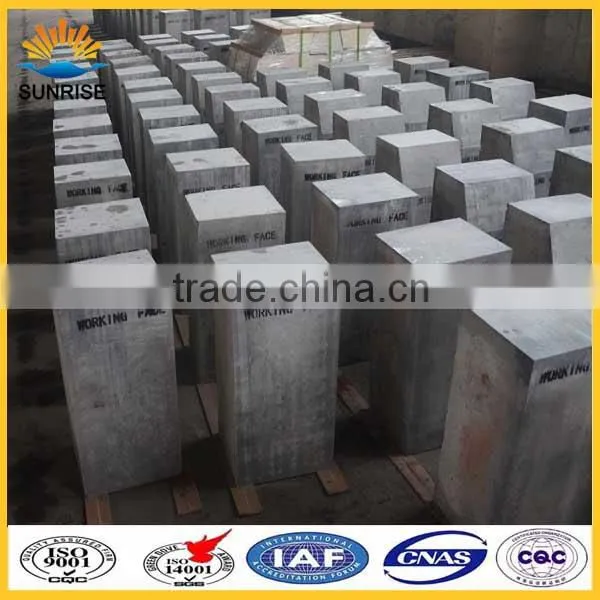

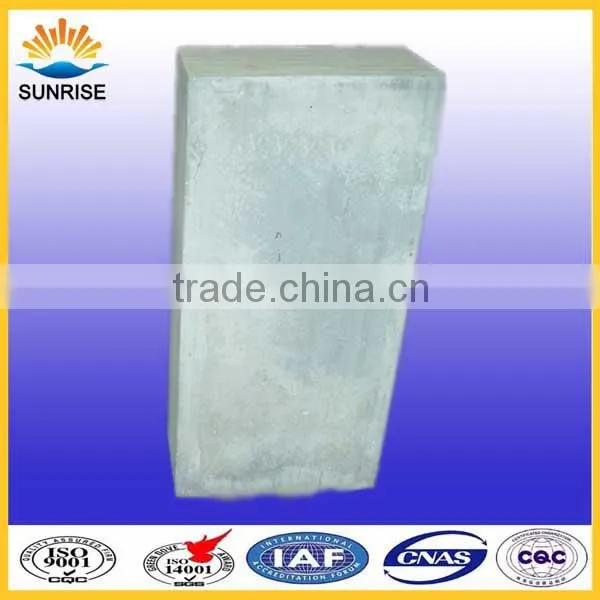

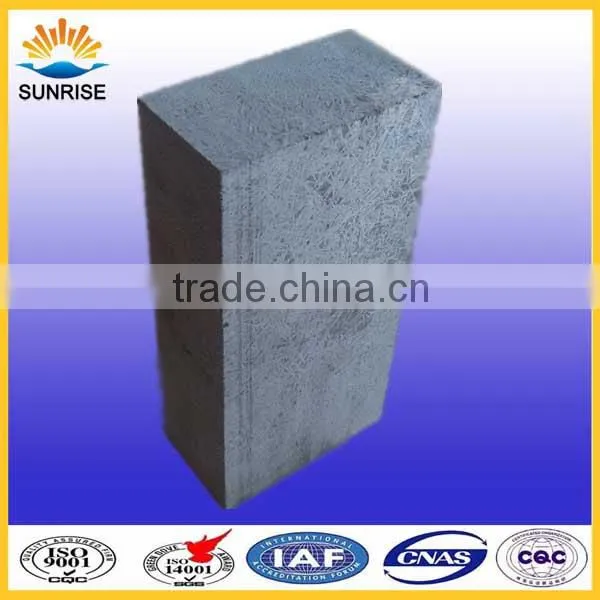

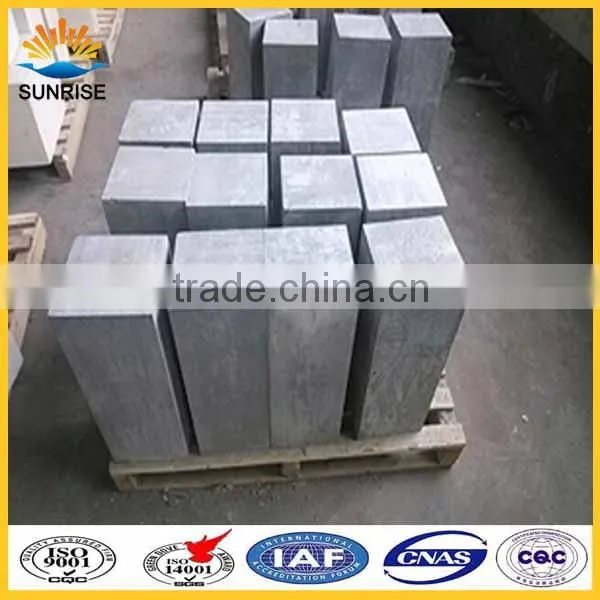

Fire Resistant Brick for Steel Reheating Furnace
Specifications
Fused Cast Skid Rall Block
Used in skid rail furnace,hearth furnece,gliding rail bricks,stell pusher furnace.
Wear-Resistance bricks are made of raw materials such as high-grade bauxite and Australia imported zircon sand, which are melted and founded in high temperature electric furnace. It is mainly used in areas that require high abrasion and temperature resistance, such as gliding rail bricks in steel pusher metallurgical furnaces, the tapping platform style walking beam furnaces, and also as the interior for destructors
Physical properties and chemical composion
( % )Chemical Composition |
|
|
SiO2 |
19 |
|
Al2O3 |
73 |
|
Na2O |
1.0 |
|
ZrO2 |
5.5 |
|
Others |
1.5 |
|
Physical Properties |
- |
|
True density(g/cm3) |
3.54 |
|
Cold crushing strength(Mpa) |
>350 |
|
(%)Thermal expansion rate(%) 1150°C |
0.8 |
|
Thermal Conductivity(500-1500°C) |
4.6w/m.0k |
|
Porosity |
<4% |
|
Bulk density (g/cm3) |
PT |
≥3.0 |
WS |
≥3.2 |
|
Crystalline hpase composition( % ) |
- |
|
Corundum |
38% |
|
Porzite |
40% |
|
Glass phase |
17% |
|
Baddeleyite |
5% |
|
Product Description
Features
1.Casted by melting raw material in the mold, then cooling and solidification.
2.High abrasion and temperature resistance.
3.High-purity raw material, barely no pollution.
4.Top quality, long service time.
Applications
For skid rails refractories of steel reheating furnace.
It is mainly used in areas that require high abrasion and temperature resisture,sush as gliding rail bricks in steel pusher metallurgical furnaces,the tapping platform style walking beam furnaces,and also as the interior for destructors.
Cast Process
Trading Process
1.We offer free of charge samples.
2..We give suggestions to customers according to your specific requirement to extend the service life of your kiln and save money for you.
3.We pay much attention to the production procedures and testing.
4.We offer good after-sale service.
Brief Introduction of Sunrise
Zhengzhou Sunrise Refractory Co., Ltd. is mainly engaged in the production and development of refractory
materials for glass , petrochemistry, metallurgy, construction and nonerrous metal industries. Our main
products include fused cast AZS 33, 36,41, fused cast αβ alumina brick, crucibles, furnace fireclay bottom
block, silica, high alumina, magnesia, corundum, chrome, zircon, mullite, zirconia mullite, silicon carbide,
sillimanite, alumina bubble bricks, various insulation bricks, and ceramic fiber products,etc.
Name: Yinyu Li
Add: No.36Fengchan Road .Zhengzhou.Henan.China
Tel: +86-371-6838939 63839673
Fax: +86-371-63835539
Mobile: +86-15565134635
Skype: zzsunrise
