Fire Mullite Insulation Bricks
- Tianjin/Dalian/Qingdao/Shanghai/All available
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
-


Glass Furnace Mullite Cover Block Refractory Brick for Furnace
 -


Kiln Shelves Refractory Smooth Plate for Mosaic 638x430mm
 -


Refractory Mullite Brick for Glass Industry 65% Al2O3 Contents
 -


The Special Mullite Refractory Products for Glass Furnace
 -


Float Glass Furnace Flat Arch Sillimanite Refractory Fire Bricks
 -


Silicon Carbide(SiC) Refractory Ladle Lining Brick

Product Details
| Place of Origin | Henan, China | |||
| Material | Mullite | |||
| Al2O3 Content (%) | 72 | |||
| Model Number | TY-JM26 | Brand Name | SUNRISE |
Product Description

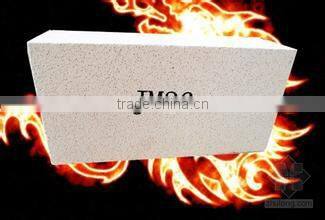

Fire Mullite Insulation Bricks
Fire Mullite Insulation Bricks JM26 series products are made from good quality and superpure raw materials, with strictly classified fillings according to their grades. These fillings can form a uniform pore structure after burnt during the process of manufacture. Each grade of products has unique design to meet different thermal, physical and chemical demands.
Application:
Fire Mullite Insulation Bricks JM26 series products materials can be used in linings or heat-insulating materials of the industries, such as, ethylene pyrolysis furnaces, tubular furnaces, reforming furnaces of synthetic ammonia, gas generators and high-temperature shullte kilns, etc
Fire Mullite Insulation Brick can be used as working lining, where contact with flames directly. This kind of brick can save the kiln energy very much.
Fire Mullite Insulation Bricks

Physical and chemical index
Sunrise Brand  | JM23  | JM26  | JM28  | JM30  | JM32  | |
USA Brand  | IFB2300  | IFB2600  | IFB2800  | IFB3000  | IFB3200  | |
Classification Temperature (°C)  | 1260  | 1430  | 1540  | 1650  | 1760  | |
Bulk Density (g/cm3)  | 0.55-0.60  | 0.78  | 0.88  | 1.03  | 1.25  | |
Cold Crushing Strength (Mpa)  | 1.2  | 1.6  | 2.1  | 2.5  | 3.5  | |
Modulus of Rupture (Mpa)  | 0.9  | 1.4  | 1.6  | 2.1  | 2.1  | |
Reheating Linear Change (%) CT-30 °CX 8H  | 1230°C -0.5  | 1400°C -0.5  | 1510°C -0.5  | 1620°C -0.9  | 1730°C -0.9  | |
Thermal Expansion1000°C(%)  | 0.5  | 0.7  | 0.8  | 0.9  | 1.1  | |
Thermal conductivity(W/m.k)  | 400°C  | 0.14  | 0.27  | 0.32  | 0.41  | 0.49  |
600°C  | 0.16  | 0.29  | 0.34  | 0.43  | 0.5  | |
800°C  | 0.18  | 0.31  | 0.36  | 0.44  | 0.51  | |
1000°C  | 0.20  | 0.33  | 0.38  | 0.45  | 0.53  | |
Al2O3 (%)  | 37  | 54  | 64  | 72  | 77  | |
Fe2O3 (%)  | 1.0  | 0.9  | 0.8  | 0.7  | 0.5  | |

We sincerely welcome you to inquire for the products of Fire Mullite Insulation Bricks JM26 Series Bricks!
Long history and various products:
Since 2005, Sunrise had engaged in the production of various fused cast AZS, such as fused cast AZS33, fused cast AZS36, fused cast AZS41, glass furnace fireclay bottom block, mullite brick, zircon brick, alumina bubble brick, sillimanite brick, corundum brick, low porosity fireclay brick, high alumina brick, all kinds of glass furnace ramming masses, sealing materials, building fireclay, etc.
So we have abundent experience on the design and production of refractory materials.
Abundent experience:
Sunrise can offer the customer excellent service relating to the production line of the float glass, which includes the design and advisory of the furnace and the tin bath, the matching of the materials and its construction. The products made by our company have been use in more than 80 production lines of float glass and production line of glass products both at home and abroad.
Our promise:
Sunrise conscientiously observes the government's line, policy, laws and regulations, follows the international trade practice, adheres to the principle of equality and mutual benefit, complies with contract and keeps the promise. BWTC upholds the principle of "combining industry with trade", "technology with trade" and "export with import", to serve its customers at home and abroad sincerely!
