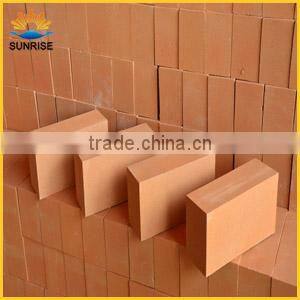

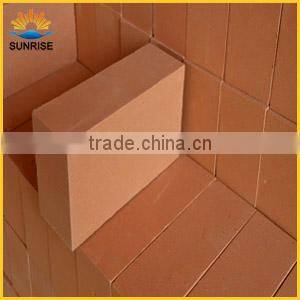

Refractory Brick Diatomite Insulating Bricks
- Tianjin Qingdoa
- T/T
You May Like
-
High Strength ! Dolomite Light Weght Insulating Bricks Refractory Brick
-
Refractory JM Mullite Light Weight Insulation Brick
-
Refractory Material Silica Insulation Brick
-
Refractory Material QG-1.2 Silica Insulation Brick
-
High Strength ! Refractories Insulating Bricks Dolomite Bricks
-
High Strength ! Insulating Bricks Dolomite Refractories
Product Details
| Place of Origin | Henan, China | Shape | Brick | |
| Material | Diatomite | SiO2 Content (%) | 71.5-70 | |
| Al2O3 Content (%) | 16.5-18 | |||
| Model Number | TY-GG | Brand Name | SUNRISE |
Product Description
Specifications
Diatomite insulating bricks1.Light weight
2.high strength
3.ISO9001:2008
Diatomite insulating bricks
Material and Technical
This diatomite insulating bricks are made of high diatomite, bonding with other porous materials. Produced by our licensed technology, shaping by casting, sintering at high temperature then cutting and polishing to the demand sizes, the strength and insulating property are obviously improved.
Application
Diatomite insulating bricks can be used in reduction cell and hot blast pipe of various thermal equipments, which placed in the high requirement on heat-insulating.
A-Standard of our supply
B-Standard of GB
C-Standard of industry
Diatomite Insulation Brick
Sunrise Brand | GG-0.5 | GG-0. 6 | GG-0. 7 | GG-0.8 | GG-1.0 |
Max Service Temperature (°C) | 900 | 900 | 900 | 900 | 900 |
Bulk Density (g/cm3) ≤ | 0.5 | 0.6 | 0.7 | 0.8 | 1.0 |
Cold Crushing Strength (Mpa) ≥ | 0.8 | 1.2 | 2.0 | 3.5 | 5.0 |
Reheating Linear Change (%) 900 °CX 8Hr ≤ | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
Thermal conductivity(W/m.k) 300°C | 0.11 | 0.15 | 0.18 | 0.20 | 0.23 |
SiO2 (%) | 71.5 | 71.0 | 70.5 | 70.0 | 70.0 |
Al2O3 (%) | 16.5 | 17.0 | 17.5 | 18.0 | 18.0 |
Fe2O3 (%) | 4.0 | 4.2 | 4.5 | 5.0 | 5.0 |
