Home > Chemicals > Inorganic Fiber > Ceramic Fiber > Refractory Ceramic Fiber Blanket

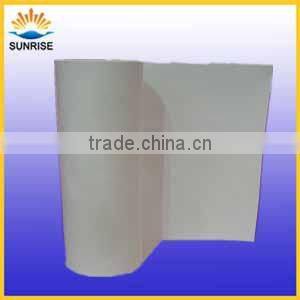

Refractory Ceramic Fiber Blanket

Refractory Ceramic Fiber Blanket thumbnail-1
Refractory Ceramic Fiber Blanket photo-1
US$ 8 - 13 MOQ: 500 Rolls
Key Specifications
Get Latest Price
Grade:
COM (Common)
Application:
Liners Of Industrial Furnace
Thickness:
6mm-20mm
Contact Supplier Request Quote Chat Now
Zhengzhou Sunrise Refractory Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Port Qingdao Port Shanghai Port China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Grade COM (Common)
Application Liners Of Industrial Furnace
Thickness 6mm-20mm
Width 610mm
Length 7200mm
Chemical Composition Al2O3 ZrO2 SiO2
Working Temperature 1260-1600℃
Fiber Diameter 2.6-3.1 micro meter
Shrinkage (1800 ℉, 3h) -
Thermal Conductivity -
Model Number 1260 1400 1500 1600
Brand Name Sunrise
Place of Origin China

Specifications

Ceramic Fiber Blanket
1.Shorter heat up and cool down time
2.Good thermal shock resistance
3.Low density


Product Description

  Ceramic Fiber Blanket



Refractory Ceramic Fiber Blanket Refractory Ceramic Fiber Blanket



Features

1. Non-combustible

2. Can withstand temperature up to 2600o F

3. Low density and low thermal conductivity

4. Light weight with low thermal mass

5. Shorter heat up and cool down time

6. Resilience and resistance to thermal shock



Application

1.Direct exposure to heat as furnace hot face lining

2.Expansion joint seal

3.Fire protection



Physical properties and chemical composition





1260 Blanket

1400 Blanket

1500 Blanket

1600 Blanket

Classification temperature ( °C)

1260

1425

1500

1600

Melting point (°C)

1760

1700

1760

-

Color

White

White

Blue gree

White

Fiber diameter ( u m)

2.6

2.8

2.65

3.1

Fiber length (mm)

~250

~250

~150

~100

Linear shrinkage(%)

(1100oC x 24 hrs)1.8

(1300 o C x 24 hrs) 1.5





Shot content

(>212 micro meter) (%)

18

18





Thermal conductivity Kcal/mh °C (W/mK) ,ASTM C201

1260 blanket

64 kg/m3

96 kg/m3

128 kg/m3

160kg/m3

mean 400°C

0.13

0.12

0.07

0.09

mean 600 °C

0.21

0.17

0.12

0.14

mean 800°C

0.30

0.25

0.16

0.20

1400 blanket





128 kg/m3

160kg/m3

mean 600 °C





0.13

0.14

mean 800 °C





0.20

0.20

mean1000 °C





0.29

0.28

Al2O3

47.1

35.0

40.0

72

SiO2

52.3

49.7

58.1

28

ZrO2



15.0





Cr2O3





1.8



Bulk density(Kg/m3)

64,96,128,160

Available size(mm/roll)

7200*600*6,12.5,20,25,38;3600*600*50

Packaging & Shipping



  Package

Refractory Ceramic Fiber BlanketRefractory Ceramic Fiber Blanket




Company Information

  Brief Introduction of Sunrise

Refractory Ceramic Fiber Blanket



Zhengzhou Sunrise Refractory Co., Ltd. is mainly engaged in the production and development of refractory

materials for glass , petrochemistry, metallurgy, construction and nonerrous metal industries. Our main

products include fused cast AZS 33, 36,41, fused cast αβ alumina brick, crucibles, furnace fireclay bottom

block, silica, high alumina, magnesia, corundum, chrome, zircon, mullite, zirconia mullite, silicon carbide,

sillimanite, alumina bubble bricks, various insulation bricks, and ceramic fiber products,etc.



Production equipment

Refractory Ceramic Fiber Blanket



Testing equipment

Refractory Ceramic Fiber Blanket

 Customer visit

Refractory Ceramic Fiber Blanket

Exhibition

Refractory Ceramic Fiber BlanketRefractory Ceramic Fiber Blanket
