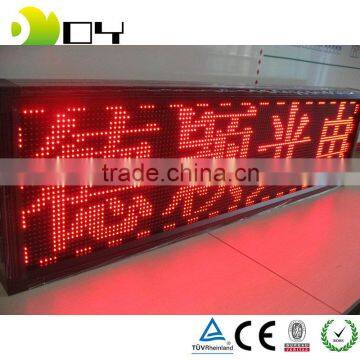

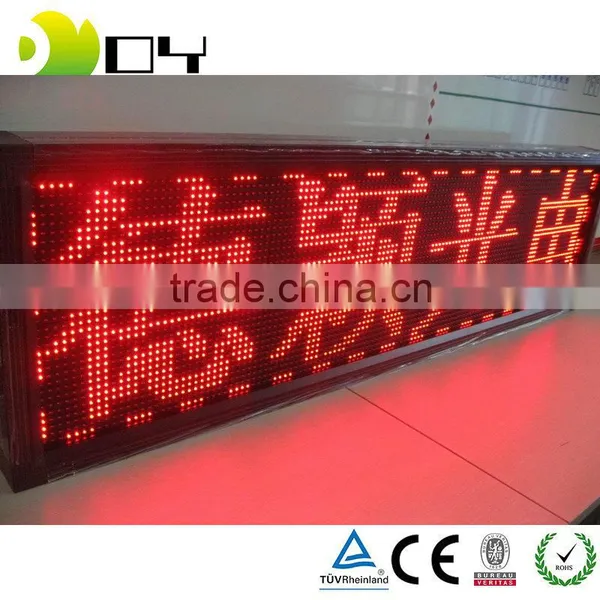

Direct Factory Led Display Module/indoor p2 p3 p4 p5 p6 P10/ Outdoor p6 p8 P10 P12 P12.5 P16 P20 P25 P31.25

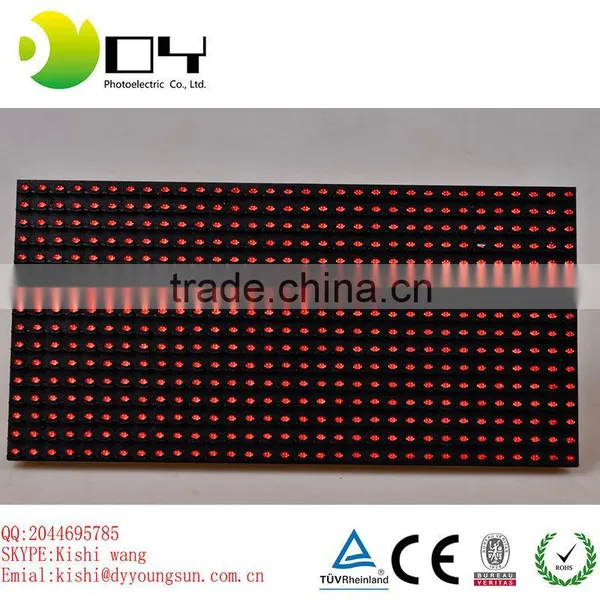

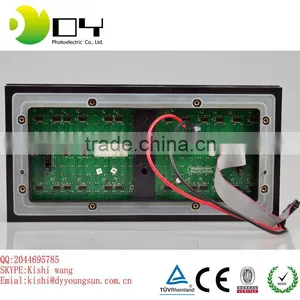

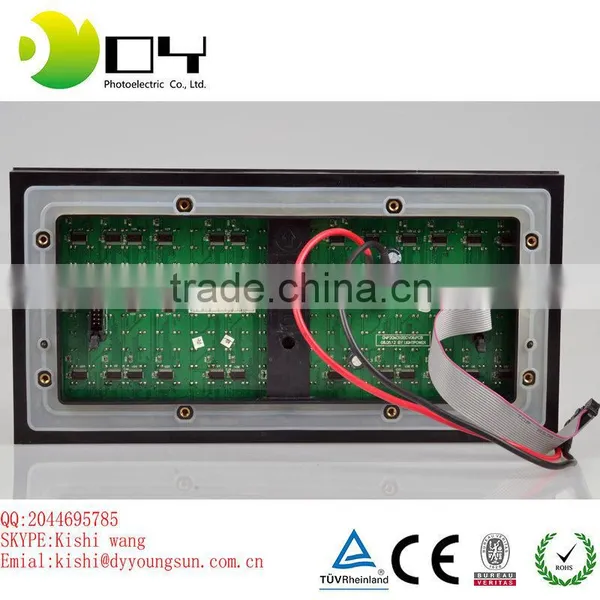

Module details

Usage:

outdoor

Display function:

Text, video, graphic

Pixel pitch:

10mm

Pixel density:

10,000dots/sqm

Module size:

160*320mm

Tube chip color:

red

Whole display
flatness:

≤0.5mm

Constitution:

1R

Resolution:

16*32

Gray Scale

256 grades

Diameter:

5mm

Power supply

Working voltage:

AC 180-240V,DC 5V40A

Average power
consumption:

200-250w/sqm

Max power
consumption:

400-500w/sqm

Main technical parameters

Brightness:

2,500-3,300cd/sqm

Brightness adjustment

100 levels by software

Refresh frequency

≥120 Hz

Frame frequency

≥60 Hz

Working temperature

-20°C~+50°C

Storage temperature:

-35°C~+85°C

Humidity:

≤95%

Best view distance:

15-200m

Best view angle:

H: ≥120°; V≥90°

MTBF:

≥5000 hours

Lifetime:

≥100,000 hours

Drive mode

1/4 scanning,constant current

Control system

Operating system

WIN 98/WIN2000/
WIN NT/XP

Control method

asynchronous
