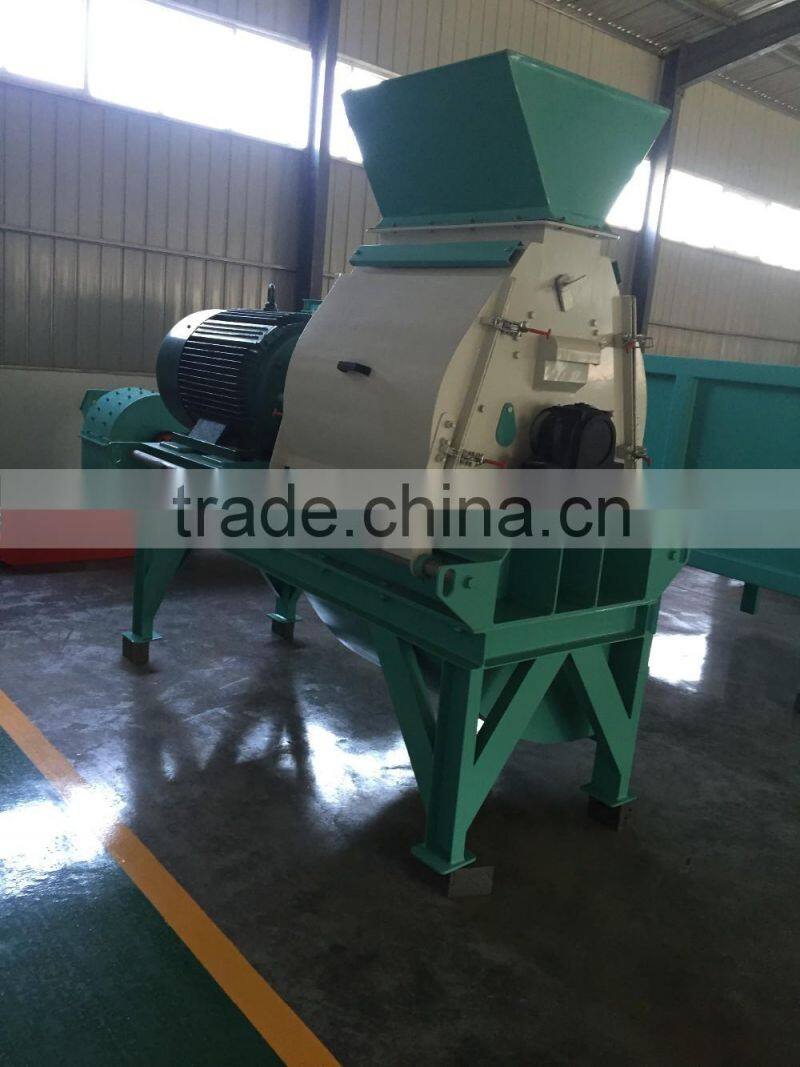

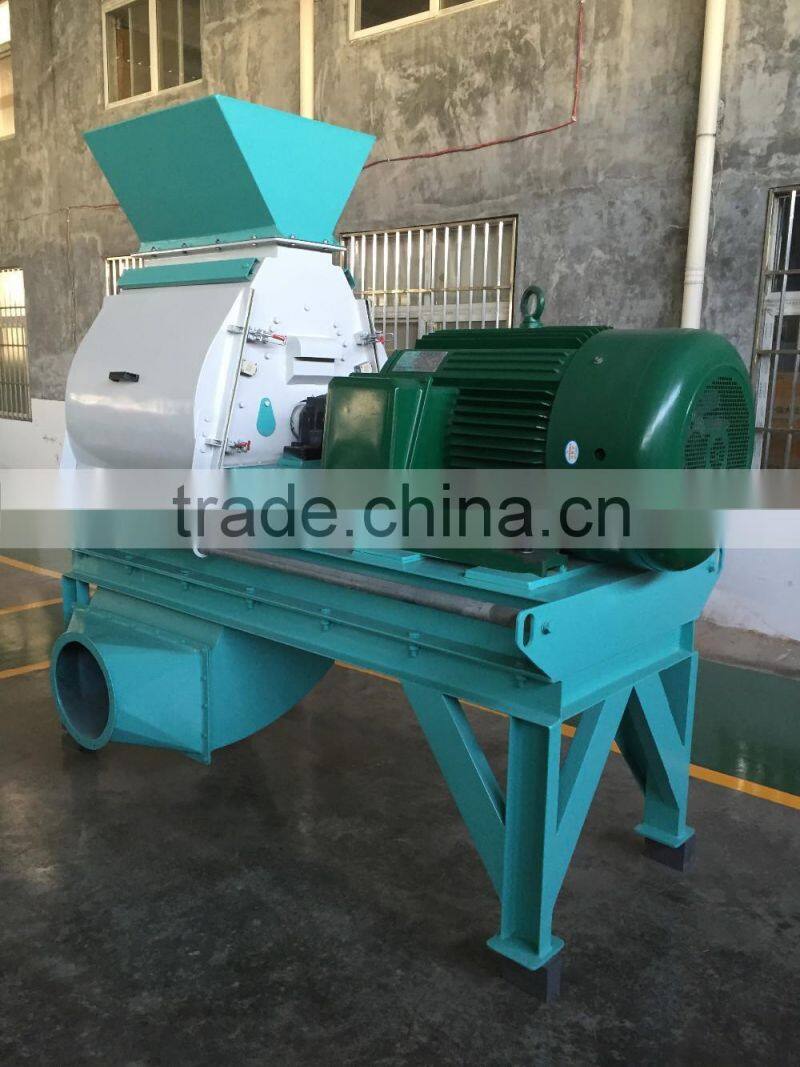

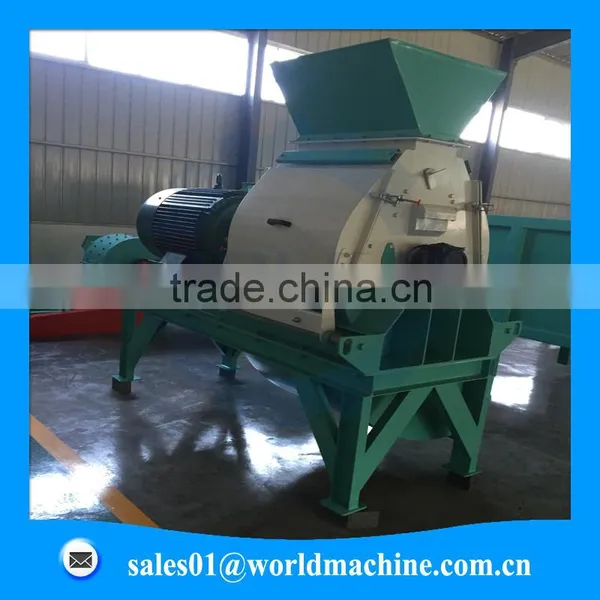

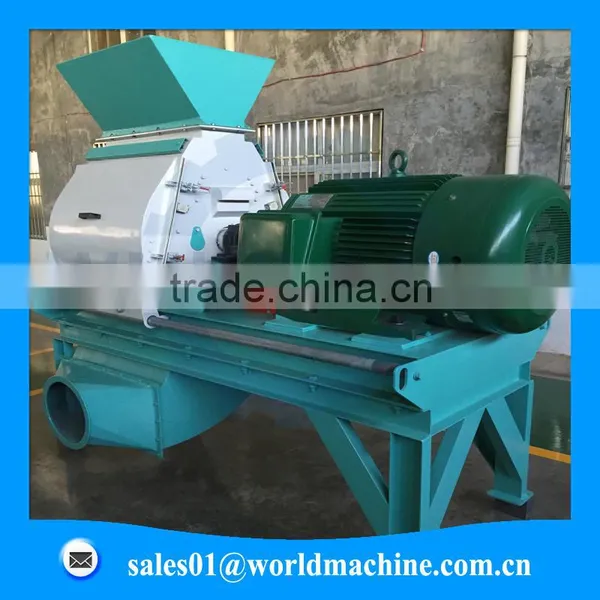

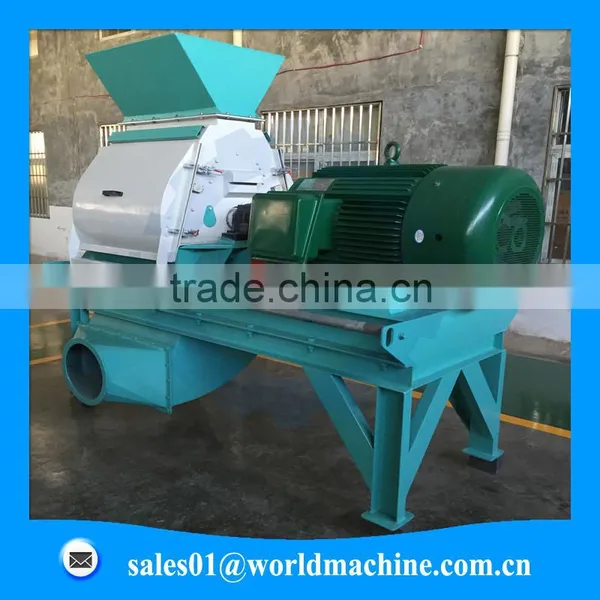

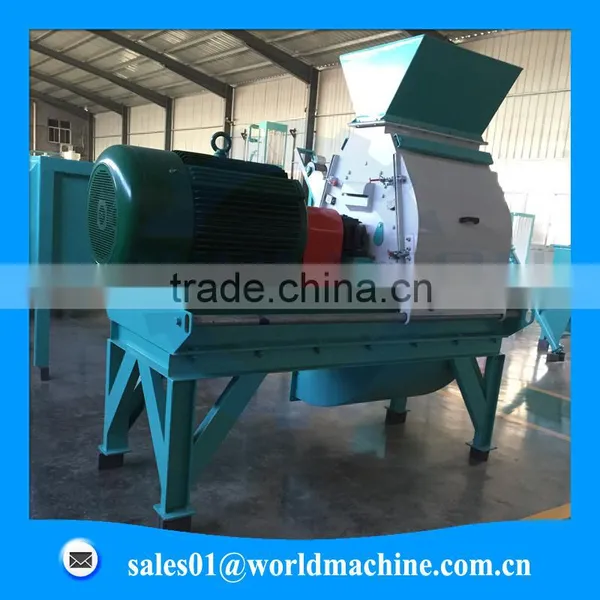

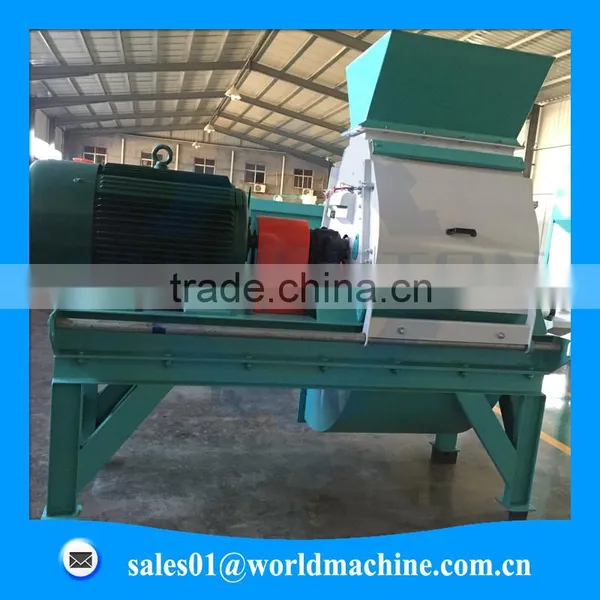

(website/Wechat: Hnlily07) Hammer Crusher Machine For Sawdust/ Rice Husk Hammer Mill
US$ 8,250 - 13,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
WHIR
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai or Others
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Big Capacity Small Rotary DryerUS$ 6,000 - 200,000MOQ: 1 Set -
Small Rotary Dryer Rotary Drum Dryer WhirlstonUS$ 6,000 - 200,000MOQ: 1 Set
-
Wood Line Rotary Dryer Drum DryerUS$ 6,000 - 200,000MOQ: 1 Set
-
2016 New Design Rotary DryerUS$ 6,000 - 200,000MOQ: 1 Set
-
CE Approved Small Rotary Dryer 008618337107392US$ 6,000 - 200,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
WHIR
Model Number
WHIR-FS80B
Voltage
380V
Power(W)
90kw
Dimension(L*W*H)
1800*800*1150mm
Weight
1200kg
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
(Skype/Wechat: hnlily07) Hammer Crusher Machine For Sawdust/ Rice Husk Hammer Mill
Attn: Lily Wang
Mobile/What's App: 86-136 3382 8547
Skype/Wechat: hnlily07
Mail: sales01(at)
Product Description

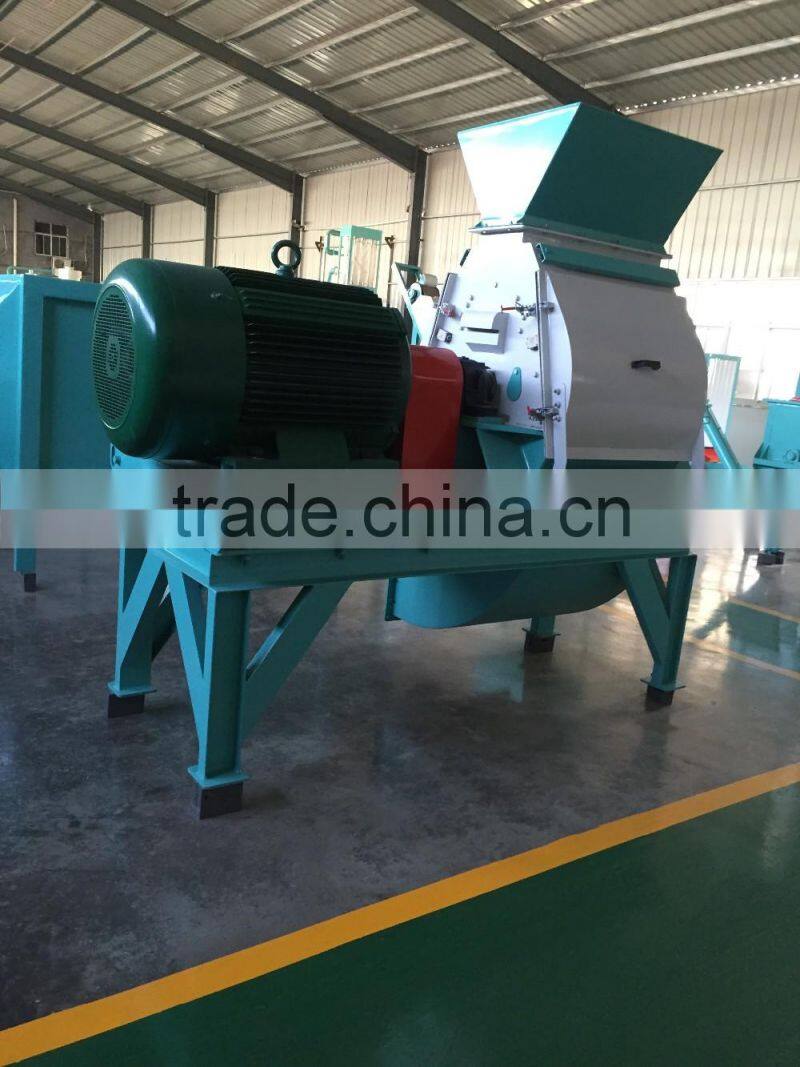

1. Rice Husk Hammer Mill Introduction

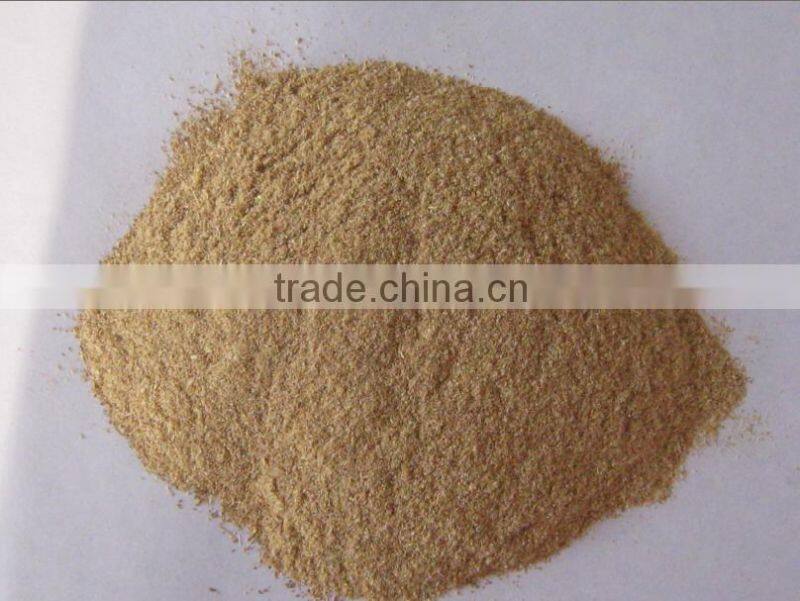

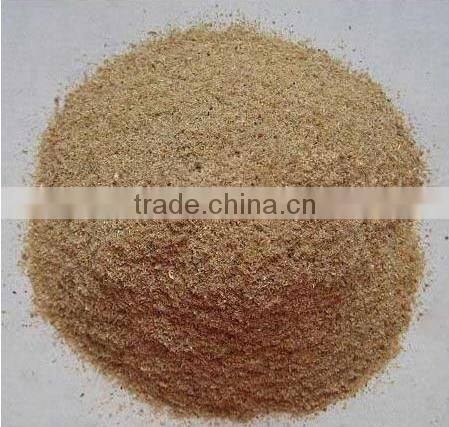

The Rice Husk Hammer Mill is a machine whose purpose is to crush materials by the collision between the high-speed hammer and materials. It is suitable for milling raw material like wood, tree branch, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 2-5 mm, then it is suitable for further processing.
2. Rice Husk Hammer Mill Features

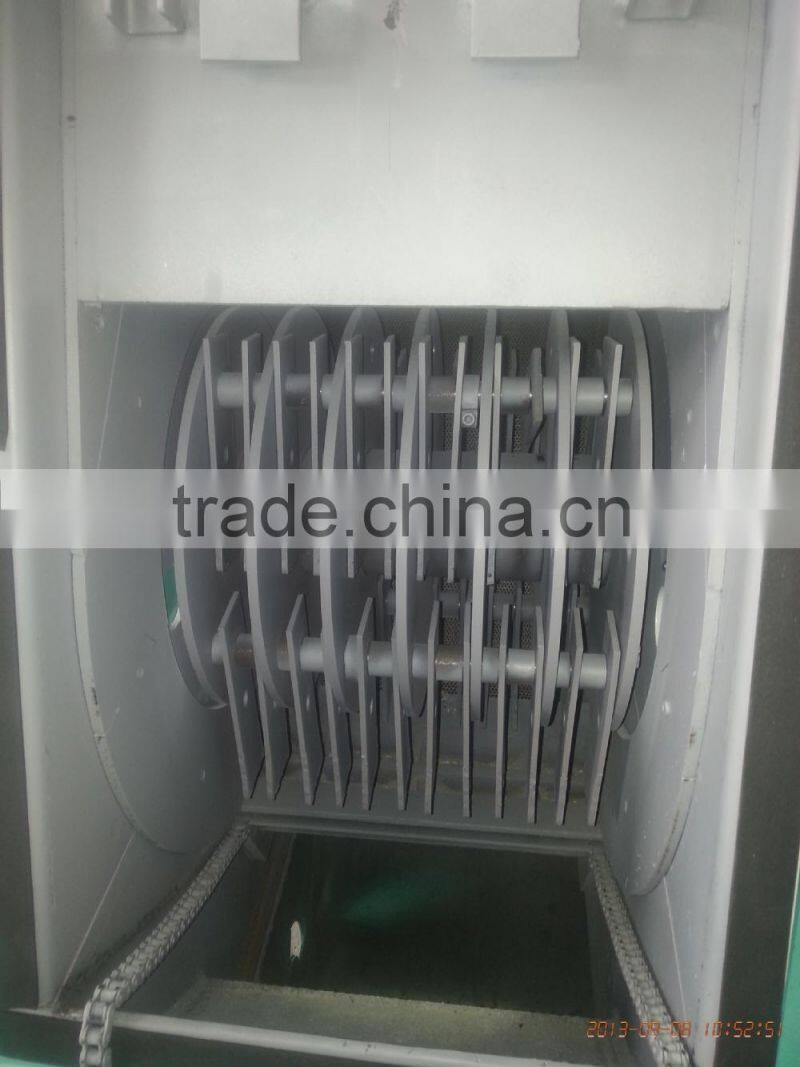

*The Rice Husk Hammer Mill USES direct transmission, scientific and reasonable hammer sieve clearance, change the clearance, can be coarse, fine crushing, crushing chamber secondary attack technology;
* Using imported SKF high quality bearing, low temperature operation;
* feeder can be equipped with iron removal equipment by your requirements;
* High output, electric saving
* Finished product granularity more fine and homogeneous;
* Finished product granularity more fine and homogeneous;

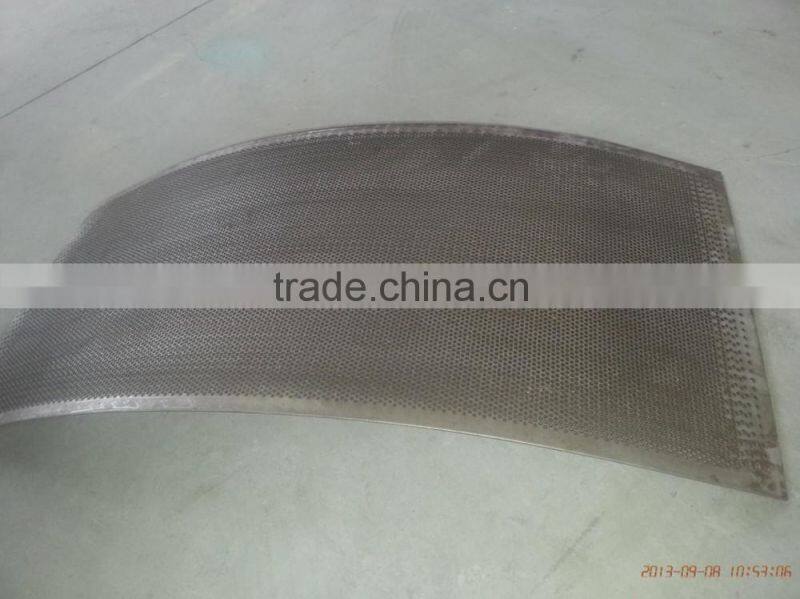

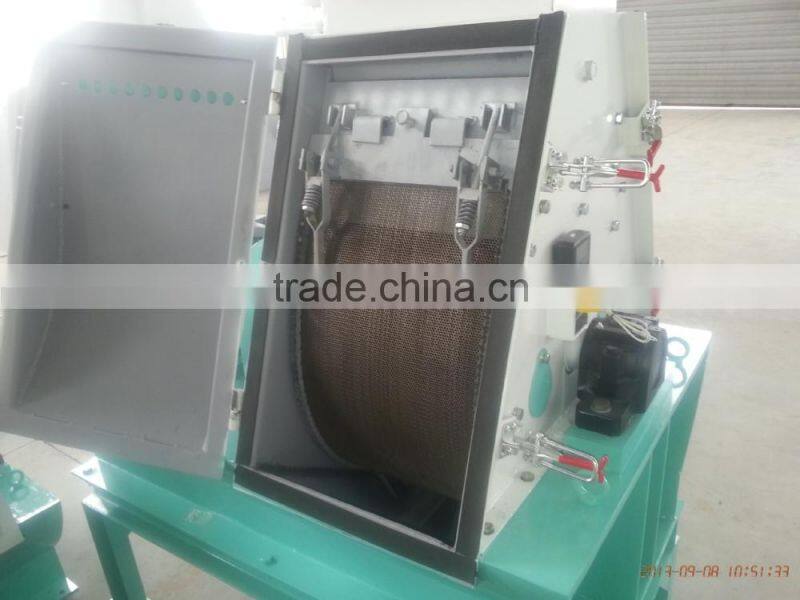

* Screen mesh adopts staggered mesh sieve, discharge smooth;
3. Rice Husk Hammer Mill Application
Hammer mill can grind many kinds of biomass, the output can be produced into feed pellets or wood pellets by pellets mill.
* Grinding the granular raw materials, such as corn, sorghum, wheat, beans, etc.
* Grinding feed ingredients for pet, livestock, poultry, aquatics etc.
* Grinding raw materials by large and medium farms.
* Grass and pharmacy fine grinding.
* Widely used to crush many kinds of straw, wood chip, tree branch, bark and leftover bits from agricultural wastes in pelletizing plants.
4. Rice Husk Hammer Mill Specification and Technology Data
4. Rice Husk Hammer Mill Specification and Technology Data
Model |
WHIR-FS60B |
WHIR-FS80B |
WHIR-FS100B |
WHIR-FS120B |
|||
Rotor Diameters |
660mm |
660mm |
660mm |
660mm |
|||
Spindle Speed |
2980 R/Min |
2980 R/Min |
2980 R/Min |
2980 R/Min |
|||
Hammer Linear Speed |
78 M/S |
78 M/S |
78 M/S |
78 M/S |
|||
Crush Chamber Width |
600mm |
800mm |
1000mm |
1200mm |
|||
No. of Hammer |
112 Pcs |
128 Pcs |
144 Pcs |
156 Pcs |
|||
Power |
55 Kw |
75 Kw |
90 Kw |
1100 Kw |
132 Kw |
160 Kw |
|
Capacity |
Coarse Crush |
9 |
12 |
14 |
16 |
18 |
20 |
|
Fine Crush |
2 |
3.5 |
4.5 |
6 |
8 |
10 |
|

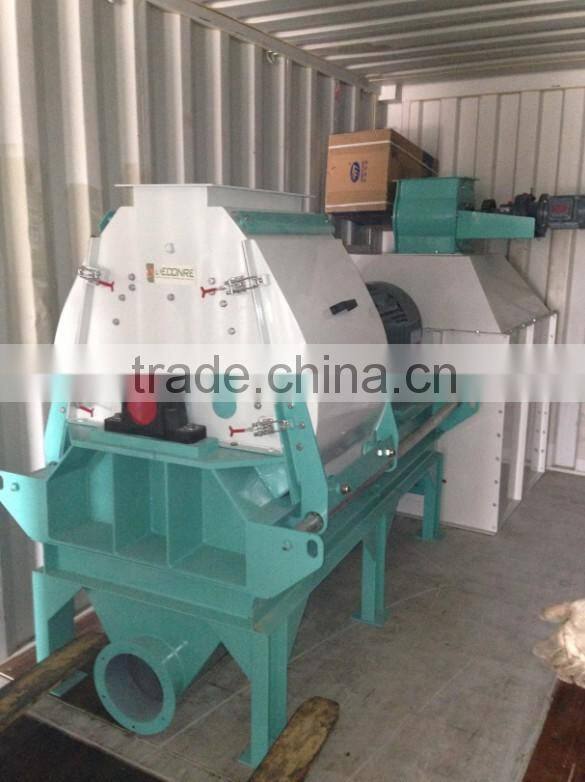

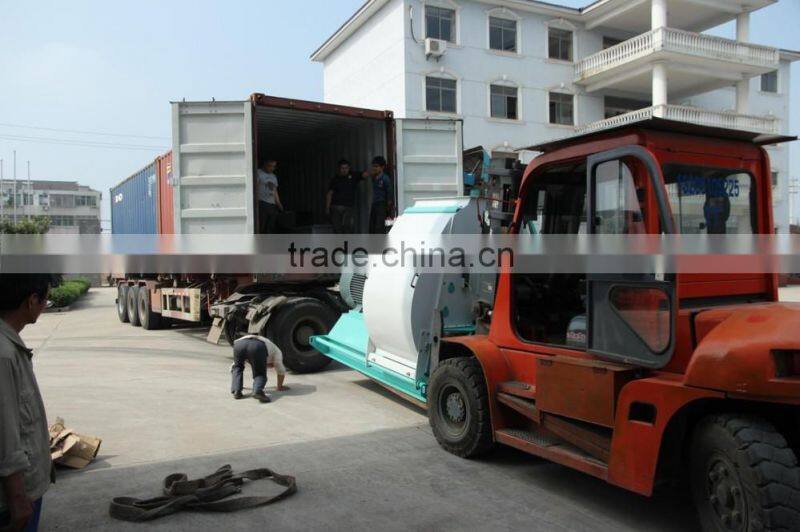

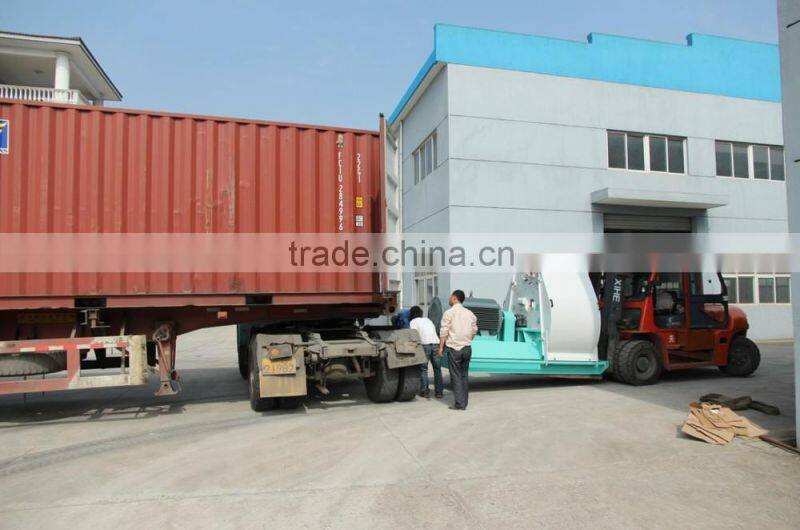

Packaging & Shipping
