Fully automatic wool scouring production lines with capacity 3t-20t/day/ wool fiber processing line/dirty sheep wool washing plant
Greater capacity Fully automatic wool scouring production lines .
1. Washing capacity of Fully automatic wool scouring production lines is 3t-20t/day, 300kg-1t/h.
2. The whole production line's length is about 63m-71m according to different capacity type.
3. The wool scouring line has steam boiler, it Fully automatic wool scouring production lines and drying it
4. Wach grease and dirty in to sheep wool away, Professional Fully automatic wool scouring production lines
5.Material:SUS304,316L.
Questions for customer
1. What's the capacity you need? We will recommend the suitable Wool washing machine for you.
More photos for the Fully automatic wool scouring production lines
1. Fully automatic wool scouring production lines ,If you want to see working video, please contact me!
Raw Wool Feeder is used for feeding or cotton to opening and washing and drying.

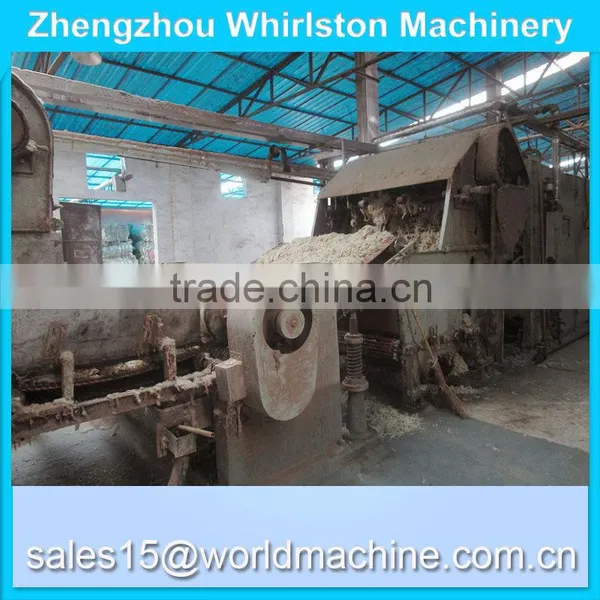

2. Raw Wool Five Cylinder Opener,It is suited for opening and cleaning grease of wool, cashmere and camel hair to remove the sandy,soil,Weed sand burrs etc impurities.
3. Raw Wool Washing Machine is suited for washing and removing the weeds crumbs, sandy,soil and impurities from opening wool .then will be for the use of drying.
4. Squeeze press
5. Raw Wool Dryer is suited for drying wool.
Finaly product:
Finally packing:
Delivery:
Parameter of Wool Feeder
Model |
Width (mm) |
Dimension (mm) |
Weight |
B031-100 |
1520 |
2453×2350×2720 |
1.8T |
B033-183 |
1830 |
2453×2660×2720 |
2.0T |
Horizontal lattice |
The distance between working side to the ground is 643mm. And the driving speed is 1.1~3m/min. |
||
|
Horn height: 32 mm. |
||
Wool Feeder Tilted lattice |
Horn distance: 32 mm.( parallel arrangement) |
||
|
Driving speed: 6.5~15.2 m/min. |
||
Wool Feeder Evener harrow |
Working sway: 161 times/min. |
||
Stripper roller |
Working Diameter: 478 mm. Rotational speed: 104~161.5 m/min. |
||
Driving method |
Driven by individual motors with v-belt. |
||
Flat apron/elevating apron |
Use acid-resistant tape, wood apron |
||
Left and right panel |
use iron plate welding parts |
||
Transmission |
Wool Feeder All transmission USES the bearing, is stable, no noise, convenient to take hair when hair twined |
||
