Products specification for SK type static mixer :

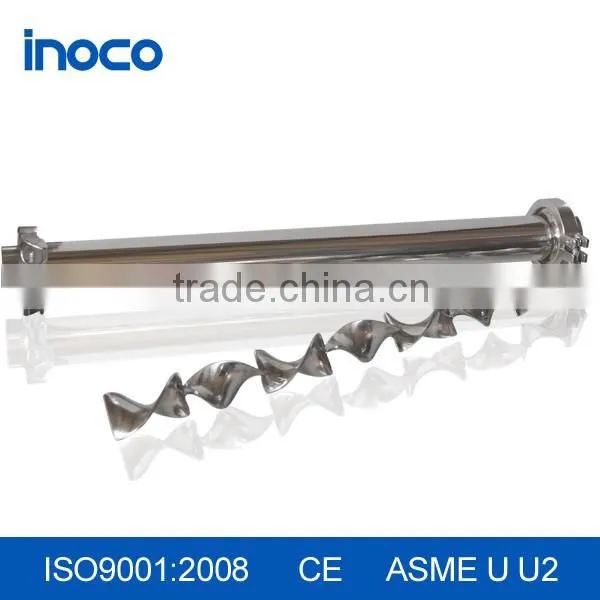

SK type static mixer is welded by spiral pieces in group with single pore canals that turn around to the left and right. The uniformity coefficient of liquid-liquid phase and liquid-solid phase is as follows: σ X ≤1-5% . It is suitable for the mixing, reaction, extraction, absorption, injection molding, color, heat transfer and other processes in chemical, petroleum, pharmaceutical, food, fine chemical, plastics processing, environmental protection, synthetic fiber, mining and metallurgy and other fields, and especially suitable for high viscous media coupled with a relative flow and impurities at the viscosity of no more than 10 centipoises.
STATIC MIXER PIPE DATA SHEET
Mechanical Design Data | |
Static mixer scope of supply |
Housing and mixing element |
Pipe diameter |
|
End Connection |
ASME 16.5 Class 150 |
Design Temperature (°C) |
|
Design Pressure, (Barg) |
|
Quantity |
|
Material of Construction | |
Body |
API 5L Gr B / A516 Gr70 |
Flanges |
A105N |
Type of Flanges |
ASME 16.5 Class 150 |
Insulation |
Rock Wool (By others) |
Mixing elements |
SS 304 |
Max. length available (mm) |
|
External Painting System | |
Surface Preparation |
Blast cleaning to ISO 8501-1,Sa 2.5 |
1st coat |
|
2nd coat |
|
3rd coat |
|
Products style:
SV type application:
It is suit for mixing, emulsifying, reaction, absorption, extraction, and enhanced heat transfer process of liquid - liquid, liquid – gas and gas – gas, with a viscosity of no more than 10²CP.

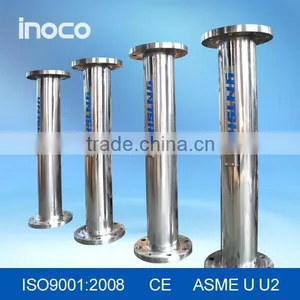

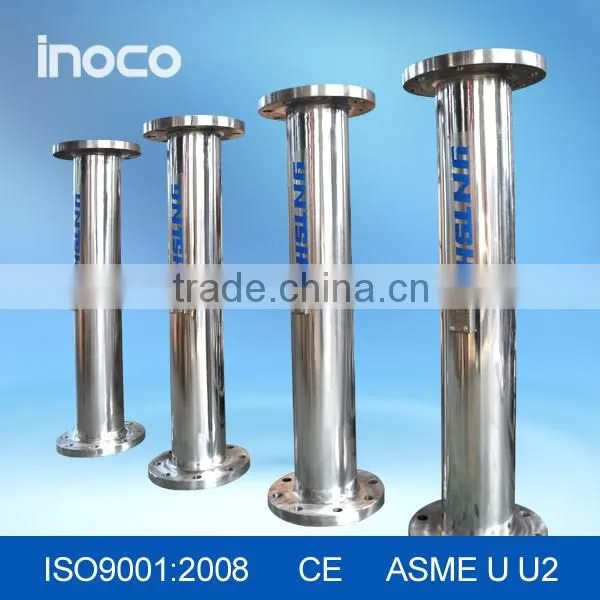

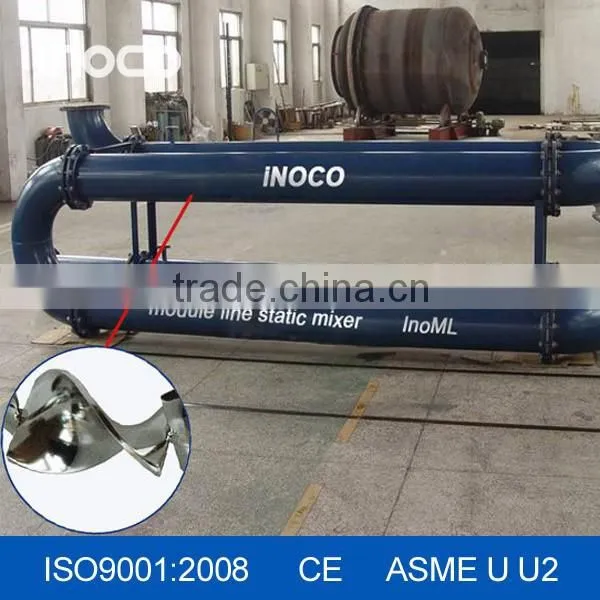

Products show

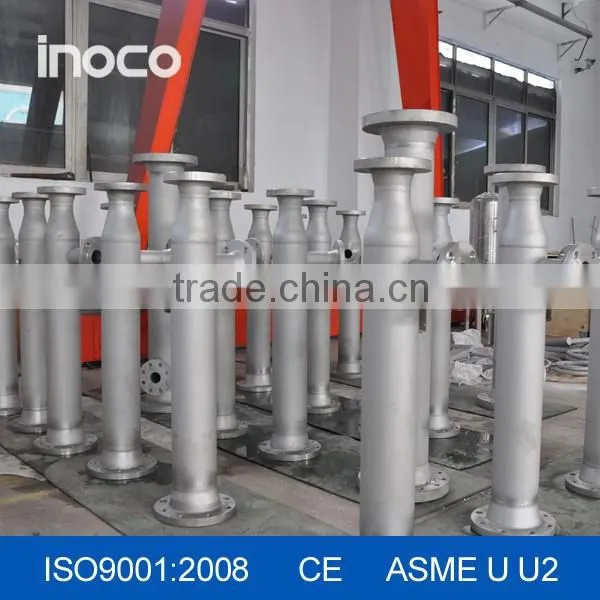

Manufacture ability & qualification
For more detials,please contact oversales department guys freely!
