INOCO SK Static Mixer With Clamp

INOCO SK Static Mixer With Clamp thumbnail-1
INOCO SK Static Mixer With Clamp thumbnail-2
INOCO SK Static Mixer With Clamp thumbnail-3
INOCO SK Static Mixer With Clamp thumbnail-4
INOCO SK Static Mixer With Clamp thumbnail-5
INOCO SK Static Mixer With Clamp photo-1
INOCO SK Static Mixer With Clamp photo-2
INOCO SK Static Mixer With Clamp photo-3
INOCO SK Static Mixer With Clamp photo-4
INOCO SK Static Mixer With Clamp photo-5
US$ 100 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Static Mixers
Product Type:
Other, MULTI-PURPOSE
Contact Supplier Request Quote Chat Now
Wuxi Inoco Filtration Equipment Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Static Mixers
Product Type Other, MULTI-PURPOSE
Application Liquid
Additional Capabilities Other, mix
Place of Origin Jiangsu, China
Brand Name INOCO
Model Number SK STATIC MIXER
Max. Loading Capacity none
Voltage none
Power(W) none
Dimension(L*W*H) Customer Made
Certification ISO9001, CE, ASME
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas
Product Description

  SK static mixer

Structure
SK element: Element is composed of helix structure plates which is forming by welding and polishing , left-right helix structure .

Application
 Suitable for viscosity ≤ 106 CP
Liquid-liquid ,liquid-solid reaction, extraction, absorption, plastic color matching, extrusion, heat transfer process. Particularly suitable for small flow with viscosity medium impurities.
Applicable to the petroleum, chemical, fine chemical, plastic extrusion, environmental protection, metallurgy and other industries in the high viscosity mixing .
Structure
 SK element: Element is composed of helix structure plates which is forming by welding and polishing , left-right helix structure .



Model
Dg(mm)
dh(mm)
Q(m3/h)
Model
Dg(mm)
dh(mm)
Q(m3/h)
SK-5/10
10
5
0.15-0.3
SK-50/100
100
50
14-28
SK-7.5/15
15
7.5
0.3-0.6
SK-62.5/125
125
62.5
22-44
SK-10/20
20
10
0.6-1.2
SK-75/150
150
75
31-64
SK-12.5/25
25
12.5
0.9-1.8
SK-100/200
200
100
56-110
SK-16/32
32
16
1.4-3.2
SK-125/250
250
125
88-177
SK-2040
40
20
2.2-4.5
SK-150/300
300
150
127-255
SK-25/50
50
25
3.5-7.0
SK-175/350
350
175
173-346
SK-32.5/65
65
32.5
5.9-12
SK-200/400
400
200
226-452
SK-40/80
80
40
9-18
SK-250/500
500
250
353-706

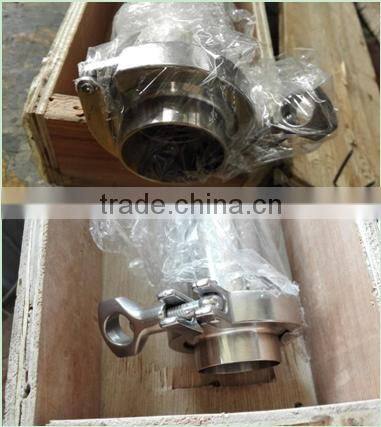

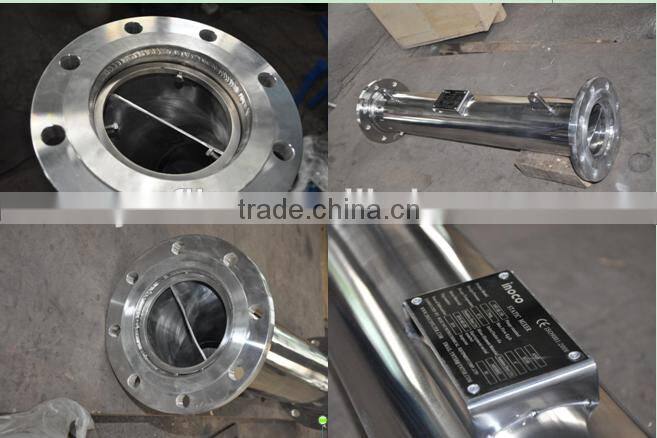

INOCO SK Static Mixer with clamp



INOCO SK Static Mixer with clamp



INOCO SK Static Mixer with clamp

 INOCO SK Static Mixer with clamp



INOCO SK Static Mixer with clamp



INOCO SK Static Mixer with clamp

INOCO SK Static Mixer with clamp
