TF20 WIFI Fingerprint Door Access Control System Most Popular

Why Choose Us ?

 1: Professional Biometric products manufacturer for 15 years with strong and professional R&D department

 2: With our Patent techs and designs to make sure the high quality products and good services for customers

 3: Our factory and all products has past CE ,ROSH ,FCC Certificate to oversea markting and standard

 4: OEM/ODM customize for special marketing and customers

Products Advantages

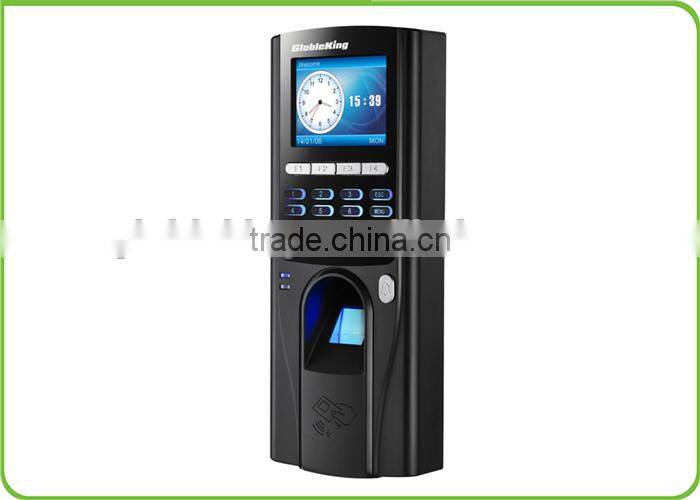

TF20 Professional color fingerprint & proximity card door access control system

1: 2015 the Newest Finger Algorithm with faster speed and Auto recovery functions

2: Lighted keypad convenient to use at night and high resolution LCD shows employee name

3: Time zone and group ,weigand in&out ,door sensor ,relay ,Anti-passback functions together

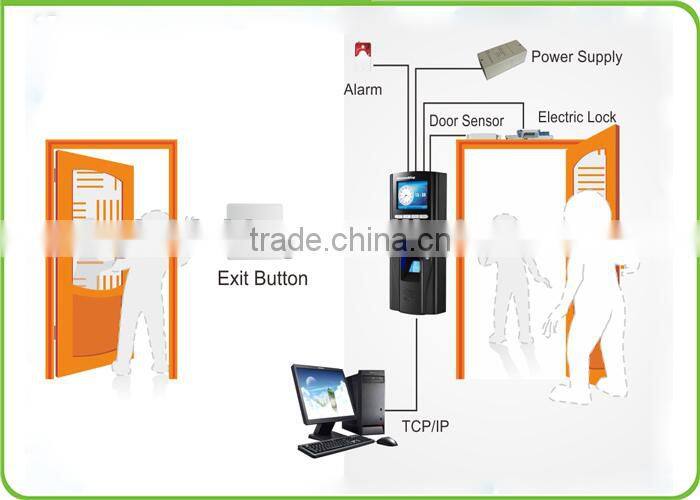

4: Connect with electric.magnetic lock directly without controller

5: Different fingerprints for different use to open door ,give alarm and so on .

6: Multiple Languages in devices and software for different marketing and customers

Specification

 Sensor

 Option Sensor

 LCD Dimension

 122*32 Dots Blue LCD

 Fingerprints Capacity

 1000/3000/10.000

 Record Capacity

 10.0000

 CPU

 Industrial-class ARM11 Embedded

 Identification Speed

 <0.5 Sec

 Recognition Mode

 FP, Card, PW, FP+Card, FP+PW, FP+Card+PW

 Matching Mode

 1:N,1:1

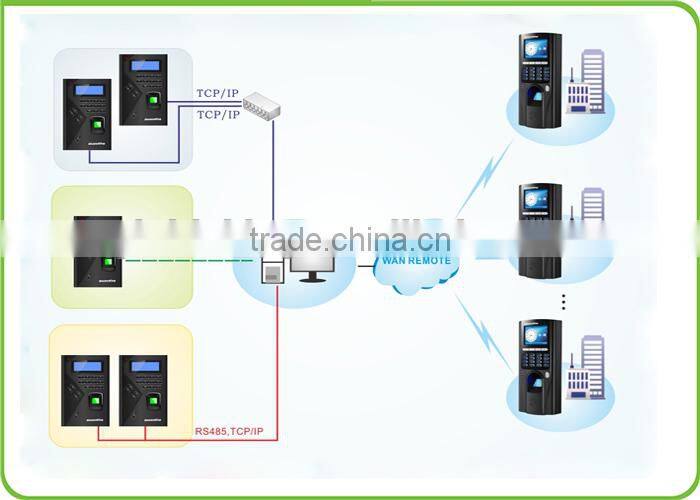

 Communication

WIFI/ RS232, RS485, TCP/IP , WAN Remote

 Access control

50 Time Zone, 5 Grouping, 10 Combinations, 25 Time bell, Multi- fingers access, Door bell, Anti-Pass back

 Wiegand

 Wiegand26&34 , Weigand in & out

Alarm method

 Dismantlement, threaten, overtime, Unlock illegally

 Power Supply

 9-24V DC ,500MA

 Language

 English , Spanish ,Arabic ,Turkey ,Polish ,Thailand and so on

 Temperature operating

 0°C - 45°C

 Humidity operating

 20%-80%

 Dimension  (mm)

 180(L)*82(W)*55(H)mm

 Weight

 1.5kg
