INOCO Microporous Metal Powder Filter

Specifications

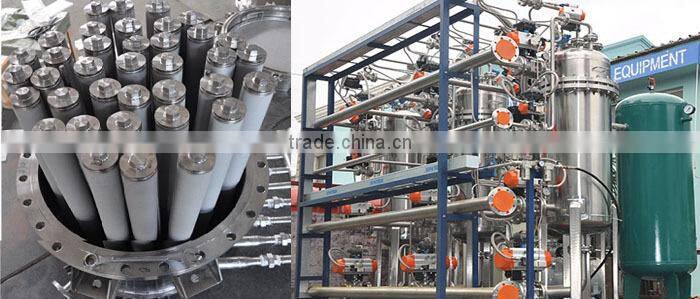

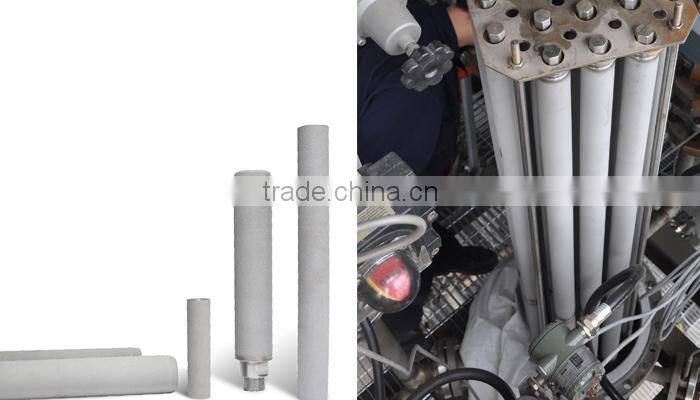

1.INOCO Microporous metal powder filter

INOCO have supplied ten thousands of backwash filter by hundred thousands of sintered porous metal filter elements . INOCO sintered porous metal filter elements core technology adopts foreign advanced technical processing, the micron rating could reach to 0.5~5micorn ,it is very suitable complex conditions .

Porous metal filter system is suitable for the filtration of high temperature and high pressure, high solid content ; there will be three method to do cleaning just like the back blowing,blasting, ultrasonic, micro metallic filter has the advantages of continuous and automatic operation, avoiding the manual frequent cleaning and unnecessary down time and maximum reduce the filtration materials and residue which will caused pollution to environment.

2,Microporous metal powder filter characteristics:

1, back blow filtration device reduces pollution emissions by 72%

According to almost ten years of experience and different conditions, INOCO uses different cleaning solution, cleaning effect is equivalent to the initial state more than 95%. Greatly extending the filter using cycle, while the pollution emissions reduced by 72%.

2,The excellentelements

Filter adopts innovative unique process for stainless steel powder sintered filter elements with high strength, high opening rate, filtration efficiency can be up to 1micron 99%;

3, 100% automation

INOCO micro porous filter is equipped with pneumatic or electric valve which can realize automatic filtering and cleaning process;

4, the mature scheme

INOCO has many successful scheme for metal powder sintered filter, filtering capacity can be from 1~200T/H, most of them have mature drawings for the selection.

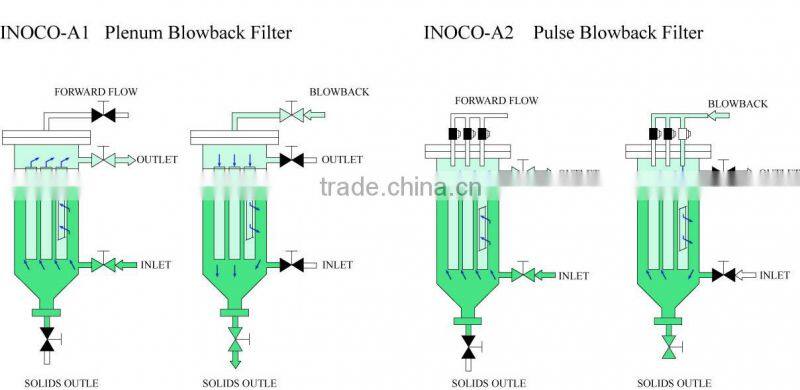

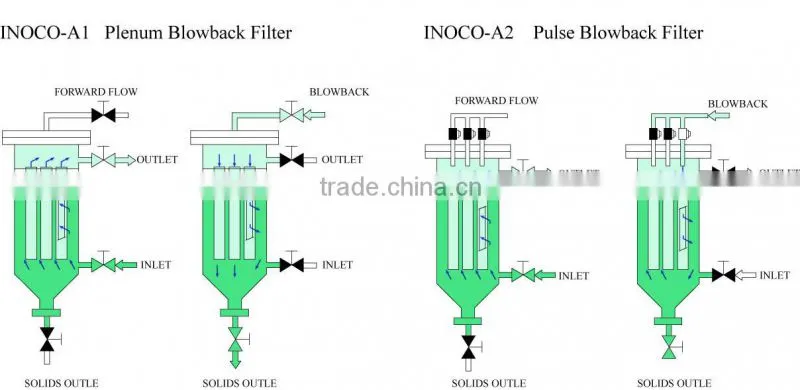

3, Microporous metal powder filter Working principle:

4,Model selection for Microporous metal powder filter :

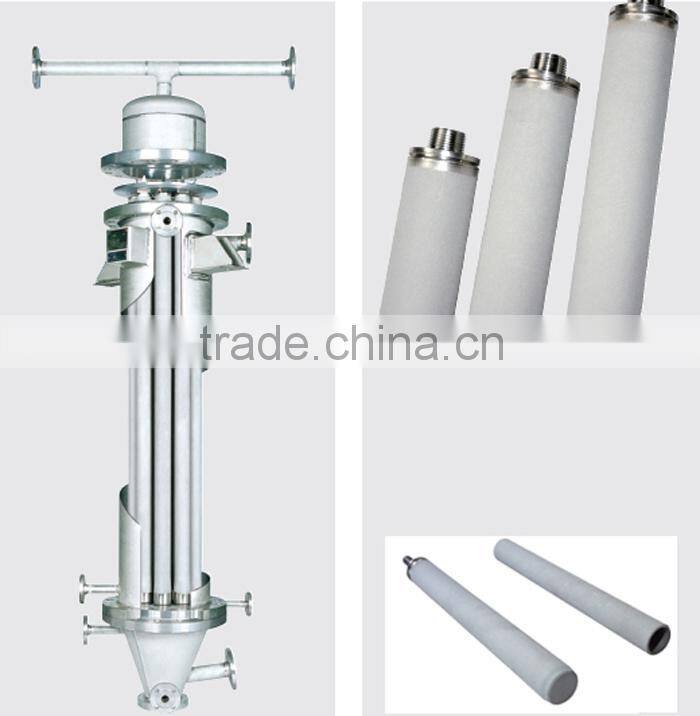

 5,Microporous metal powder filter elements specifications

Element material:  stainless steel 316 powder is made into sintered elements by YNT unique sintering process in Inert gas,before sintering ,the metal powder is without extrusion and Adhesive or other substance

Moreover there will be nickel and 300 series stainless steel and various alloy such as Inconel,Monel,Hastelloy and Carpenter 20 and etc.

Filtration precision:

Absolute accuracy:  0.5 micron to 5 micron for liquid ; 0.01micron to 20 micron for gas

Advantages:

• orosity. low pressure differential ,high flow rate and high capacity for holding impurity
• fixed structure ,never no medium falling off and impurity loading off
• fatigue
• Chemical stability
• could be repeated for cleaning and backwashing

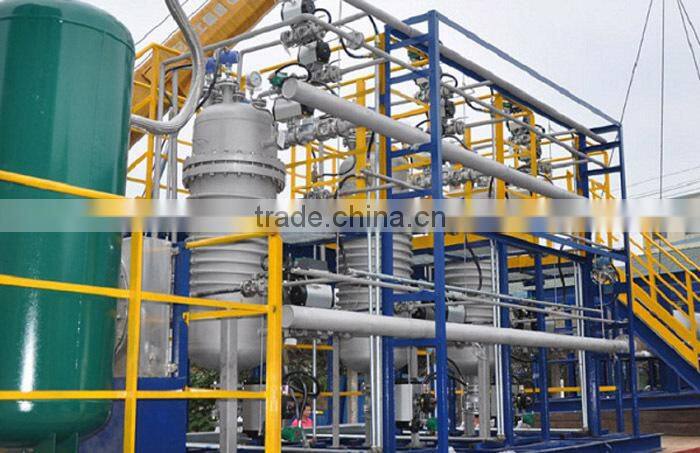

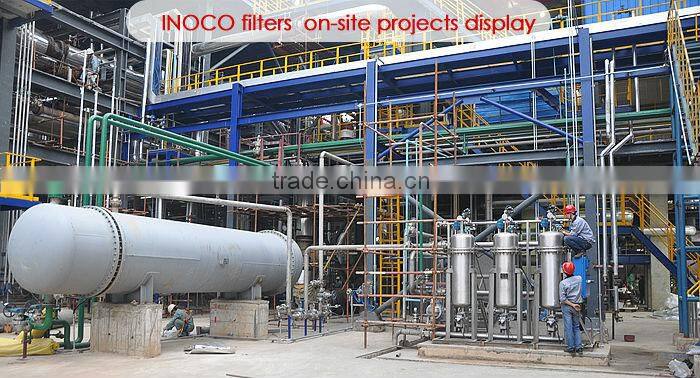

 6,Applications on site:

• The recovery of precious metals and metal catalyst
• slurry oil catalytic cracking device filter
• Recovery of CTA, PTA and catalyst system in PTA production
• Coal to olefins (MTO) catalyst recovery system
• Purification system and exhaust catalyst regenerator
• Hydrogenation of raw oil, recycling oil filtration system
• Aviation fuel oil, coking distillate oil filtration system
• Hydrogen, nitrogen, oxygen distributor
• Flue gas dust separation
• Fluidized bed hydrogenation process for the production of hydrogen peroxide
• Oily sludge treatment system
• Fiber spinning
• Aromatic spices
• Flue gas desulfurization wastewater treatment
• Single / polysilicon micro filtration
• Washing water, injection solution, beverage, filtration and clarification

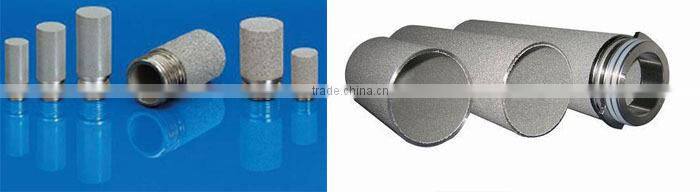

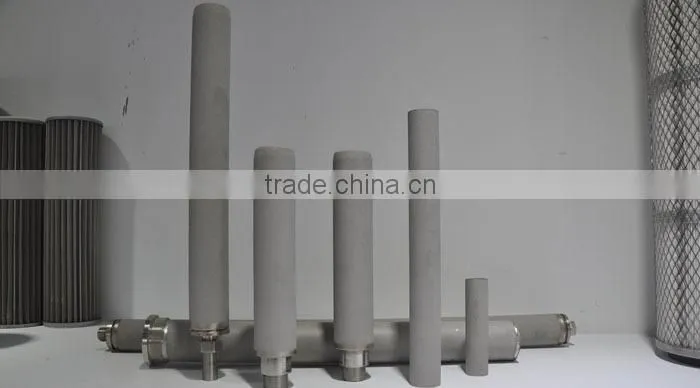

7, SS or Ti or others sintered elements for Microporous metal powder filter:

Using high quality stainless steel powder as raw material, after high temperaturesintering production and become, resistant to acid and alkali resistant, high temperature resistance, high pressure resistance, large flux, can be used repeatedly to clean, can be used for high temperature and high viscosity of high corrosive liquid and gas filtration.

Material & Temperature

316 low carbon stainless steel powder sintering adopts INOCO proprietary technology with hitches in inert atmosphere. Before sintering, metal powder by extrusion, nor with the use of other materials such as adhesives.
Metal powder sintered porous filter element can choose all kinds metals such as stainless steel, Monel, Inconel alloy, hartz alloy and Ti alloy as raw materials, metal sintering filter elements keep the metal corrosion and high temperature resistant characteristics.
Metal powder sintered filter element can serve up to 1050 ℃ high temperature gas environment, can also be applied to all kinds of acid, alkali, salt solution and reduction, in the oxidizing atmosphere, it can be used in very wide condition of chemical processing all kinds of difficult to deal with the gas and liquid materials.

Filtration precision

Absolute accuracy: liquid 1 um ~ ~ 20 um;
Gas :0.01 um um ~ ~ 20

Advantage
fixed structure, no dielectric loss and sewage discharge
high mechanical strength, fatigue resistance, wear resistance
a wide range of high and low temperature adaptability and chemical stability
can be rinsed and backwash

The conditions of use

Maximum differential pressure: 80 ℃ 232 ℃ 3.5 kg/cm² 3.2 kg/cm²
Max pressure difference: 80 ℃ 232 ℃ 3.5 kg/cm² 2.3 kg/cm²
Selecting the appropriate material. Use a metal sealing technology, using scope - 168 ℃ ~ ~ ~ 950 ℃

 Up to 50% of the void fraction. Low pressure difference, high flow. Large impurity hold capacity

8,Microporous metal powder filter element coating technology

The biggest advantage of the coating structure is to increase the filter flux, optimization of the reverse blowing regeneration effect, enhance the absolute filtration precision.

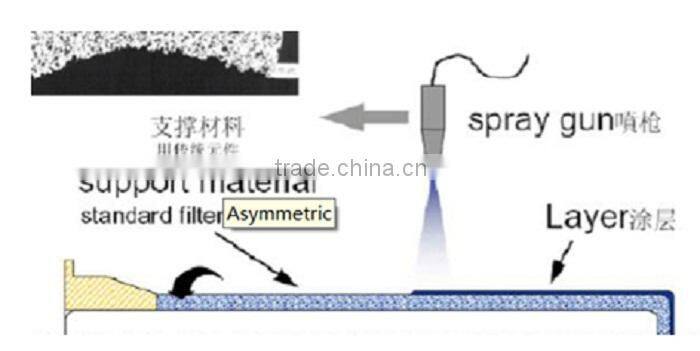

Coating structure (see below) is on the wall thickness of 2 mm larger aperture on the sintered porous metal components of coating a layer of effective filter layer thickness of 0.2 mm. The biggest advantage of the coating structure is to increase the filter flux, optimization of the reverse blowing regeneration effect, enhance the absolute filtration precision.
Coating patent technology improves the absolute filtration precision, in the liquid phase filter, absolute filtration precision up to 0. 1 um, in the gas phase absolute filter filtration accuracy is as high as 20 nm.

9,Enterprise capability & target

INOCO series filtration solutions can meet kinds of different and difficult condition, our professional system design is made and provided according to each customer’s requirement, by global sales network and close cooperation with customers, our manufacture capability, rich experience and technology ability can help you reduce costs, reduce energy consumption, improve the quality.

10,Manufacture capability and qualification

please contact oversales department guys for more detail!
