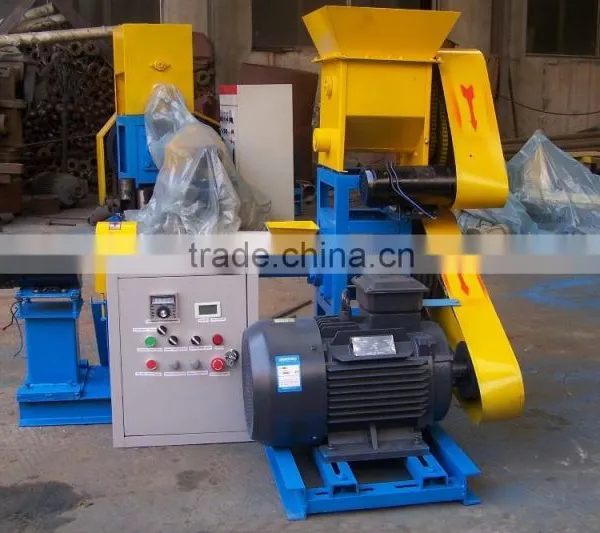

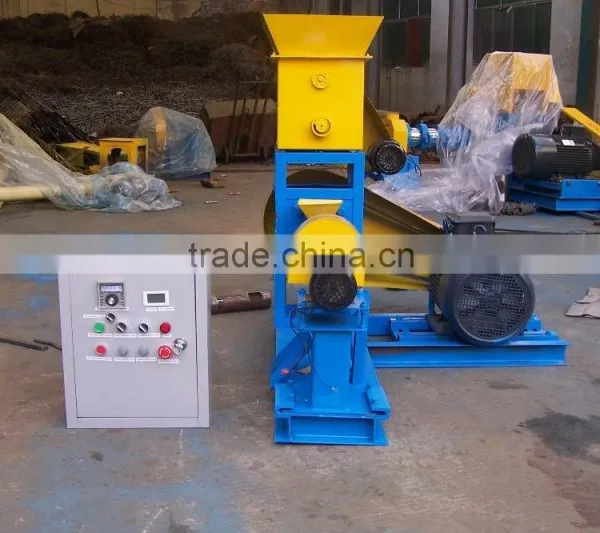

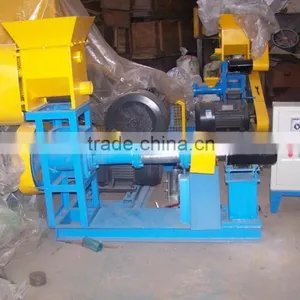

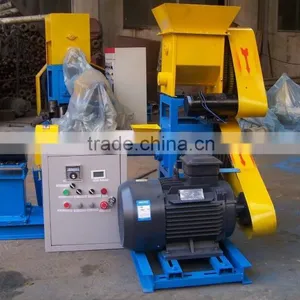

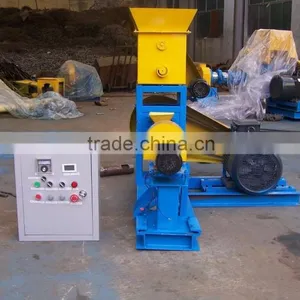

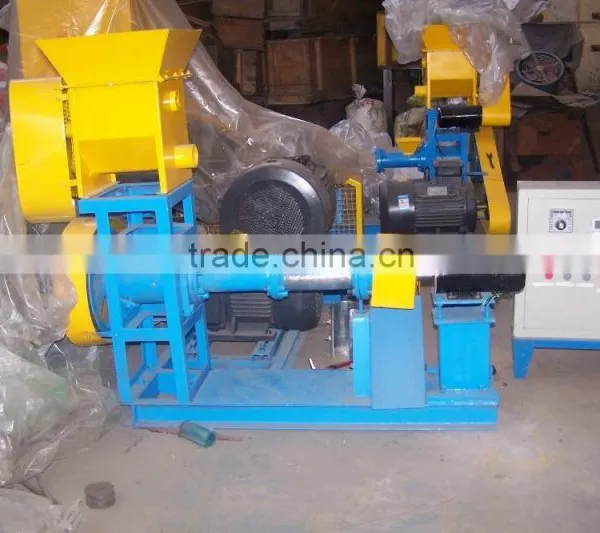

Fish flake food machine
Contact Person: Yolanda
Mobile/Whatsapp: 0086 15286828736
Skype:jia.yolanda
QQ:1464054528
1>. Intorudction of fish flake food machine:
The fish food machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab and pet like dog cat etc. The puffing fish feed pellets can float on the water surface without dissolution for over 20 hours.
2>. Raw material of fish flake food machine:
Type: Flour,corn starch,rice bran,meat meal,bone meal,fish meal,soybean meal etc.
Fitness: about 60-80mesh which were crushed and mixed.
Moisture content: about 20%-25%.
Oil content: ≤10%
Starch content: ≥30%
3>. Technical parameters of fish flake food machine:
| Model | Screw diameter | Capacity | Main power | Feeding power | Cutting power |
| DGP50 | 50mm | 60-80kg/h | 11kw | 0.4kw | 0.4kw |
| DGP60 | φ60mm | 120-150kg/h | 15kw | 0.4kw | 0.4kw |
| DGP70 | φ70mm | 180-250kg/h | 18.5kw | 0.4kw | 0.4kw |
| DGP80 | φ80mm | 300-350kg/h | 22kw | 0.4kw | 1.1kw |
| DGP90 | φ90mm | 400-450kg/h | 30kw | 0.6kw | 1.5kw |
| DGP120 | φ120mm | 500-700kg/h | 55kw | 1.1kw | 2.2kw |
| DGP135 | φ133mm | 800-1000kg/h | 75kw | 1.1kw | 2.2kw |
| DGP160 | φ155mm | 1200-1500kg/h | 90kw | 1.5kw | 2.2kw |
| DGP200 | φ195mm | 1800-2000kg/h | 132kw | 1.5kw | 3.0kw |
4>.Working principle of fish flake food machine:
After the material is sent into feeding device, they will be pressed by the screw shaft with high pressure and temperature which makes the raw material fully cooked and sterilized. Then the pressed material will be formed into pellets by shaping mould. You can change different moulds to make pellets with different diameters. After that a cutting device will cut the formed pellets into different length as required
5>.Final pellets of fish flake food machine:
1) With different moulds, the machine can produce different diameter food, from 1mm to 12 mm. The fish feed can be floating over 20 hours.
2 ) It can produce different shapes feed for dog, cat etc. Diameter 6-8mm.
6>. Related machines export to Lesotho :
200-300kg/h Crusher with cyclone
300kg/h Mixer
120-150kg/h fish flake food machine:

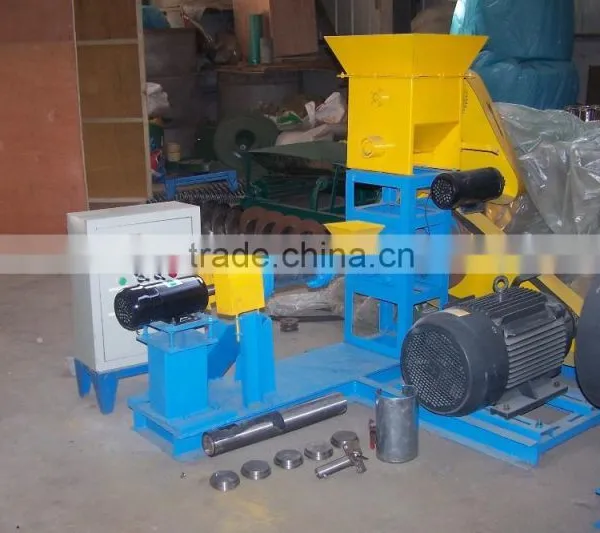

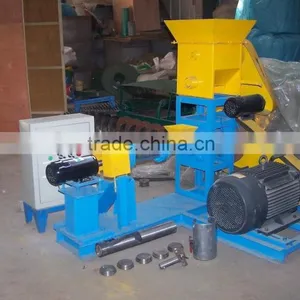

Free square parts:Screw,sleeve,molds,cutting tools.

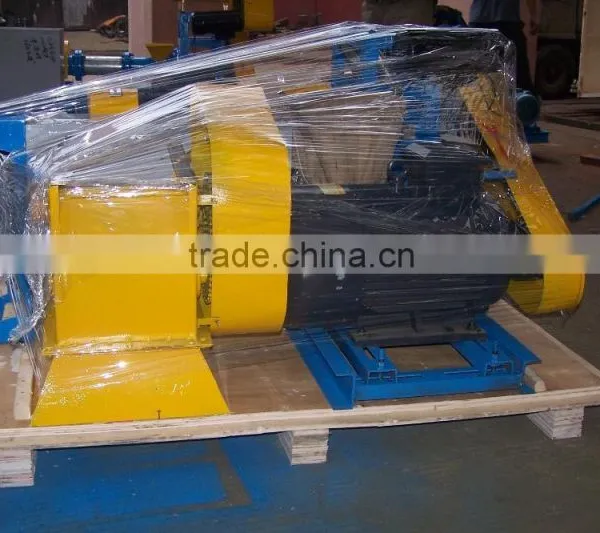

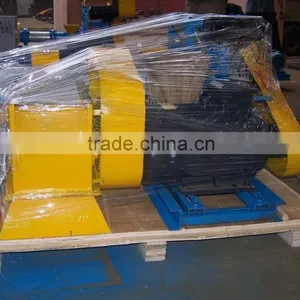

Packing:Export standard packaging or in container
Shipping:By sea
MOQ:1 set
Delivery time:With 4-7 days
Payment terms:T/T,West union,L/C at sight
1.We provide technical guide and formula.
2. We send extra easy wear parts for free including two sleeves, one screw, one cutting knife and three die moulds.Provide technical support in any time.
3.Warranty:One year
Raw material---crushing system---Mixing system---Extruding system----Drying system----Flavoring system--Packing system
Voltage in China: Three phases: 380V/50Hz, we can make it according to customers’ Local voltage according to different countries.
And for the production line,differenct capacity the machines will have a little different.
Contact Information of fish flake food machine:
Contact Person: Yolanda
Mobile/Whatsapp: 0086 15286828736
Skype: jia.yolanda
QQ:1464054528
