1,INOCO Multi bag filter
Description >>

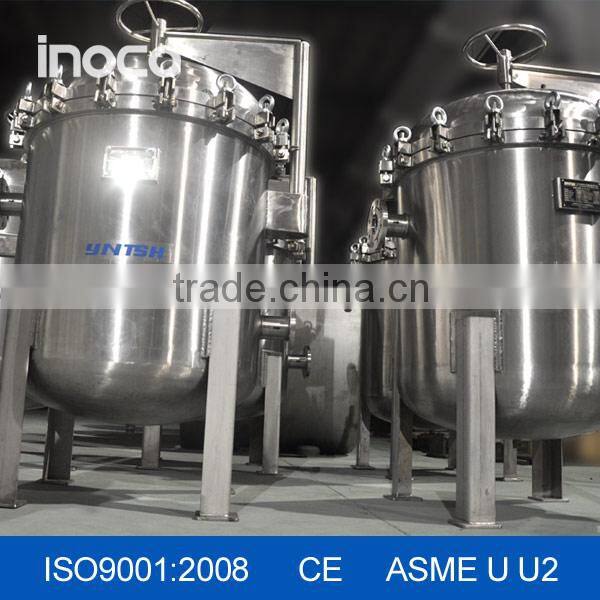

INOCO multi-bag filter housing features a cost effective, handwheel operated, davit cover. Loosen the swing bolts, turn the davit handwheel and swing the cover aside.
Standard GB150 ,”CS ” or ASME.
Tapered, electro-polished stainless steel perforated baskets.
Unique 3-point hold-down ensure high quality of seal between each filter bag and housing body. Simple design ,ensures simple, effective operation.
Rugged, simple handwheel-operated davit cover makes the HD perfect for cost sensitive applications.
Hydraulic-assist davit cover is available as an option.
Positive O-ring sealing provides easy, reliable operation.
Available PP,rubber ,PTFE etc. lining ,carbon steel and 304,316L stainless steel for high corrosion resistance.
standard sizes with 2 through to 24 bag housings are available for size 02 filter bags.
Features >>
Hand wheel operated davit cover
Positive bag hold downs
Up to 24 bags per housing
Positive O ring seal
Benefits >>
Rugged, reliable and very cost effective.
Perfect bag to housing sealing for no by-pass
Can handle very high flow rate / high dirt load applications
No external leakage
2,INOCO Multi bag filter Specification
| SGD-S2 | SGD-S3 | SGD-S4 | SGD-S5 | SGD-S6 | SGD-S8 | SGD-S9 | SGD-S10 | |
| DN | 65 | 80 | 100 | 125 | 150 | 150 | 200 | 200 |
| FLOW RANGE m3/hr | 50 | 75 | 100 | 125 | 150 | 200 | 225 | 250 |
| FILTRATION AREA m2 | 0.9 | 1.35 | 1.8 | 2.25 | 2.7 | 3.6 | 4.05 | 4.5 |
| φD mm | 450 | 500 | 550 | 600 | 700 | 750 | 800 | 900 |
| H1 mm | 450 | 460 | 480 | 500 | 650 | 640 | 670 | 800 |
| H2 mm | 940 | 930 | 920 | 915 | 910 | 925 | 900 | 115 |
| H3 mm | 1090 | 1045 | 1125 | 1140 | 1215 | 1225 | 1240 | 1400 |
| H4 mm | 1265 | 1300 | 1325 | 1340 | 1445 | 1470 | 1505 | 1685 |
| L1 mm | 325 | 350 | 375 | 415 | 470 | 500 | 550 | 630 |

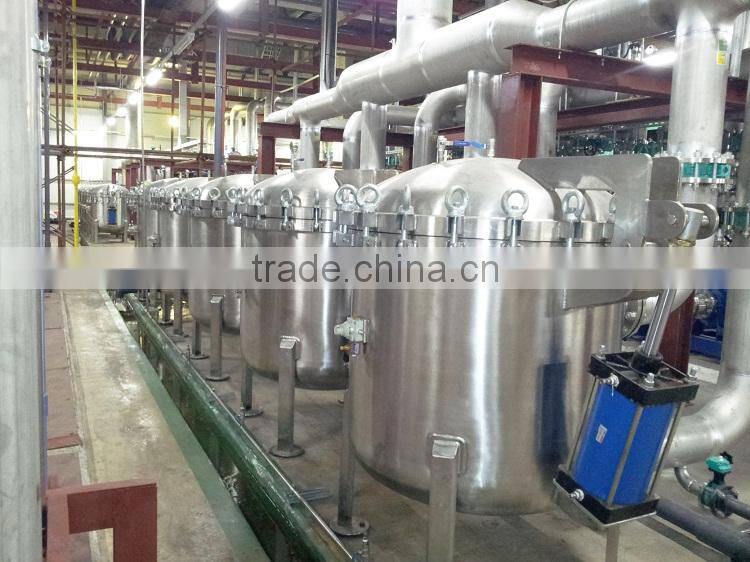

3, INOCO Multi bag filter Application
4, Inoco company capacity
Inoco provide a wide range of filter and filter system for water filtration, oil production, processing; mining processing, liquefaction, transportation in natural gas industry around the world,used to remove pollutants in liquid or gas. With 18000 companies service experience in worldwide, leading filter laboratory, strong manufacturing capacity, we can provide you with excellent reliability and high performance products.
Inoco all gas filtration and separation products are available with ASME "U" seal "U2", we can also accept BureauVeritas, TUV third-party certification.
5, Related products
1. MULTI BAG FILTER
2. CARTRIDGE FILTER
3. AIR FILTER
4. AUTOMATIC SELF CLEANING FILTER
5. BACK WASH FILTER
6. PIPELINE FILTER
7. BASKET FILTER
8. Y STRAINER
9. DUPLEX BAG FILTER
10. FILTER BAG
For more details pls contact Inoco sales team.
