Specifications
cross-arm composite insulatorCertification:ISO9001
Offer OEM,ODM
One-piece integrate moulding
Good seal

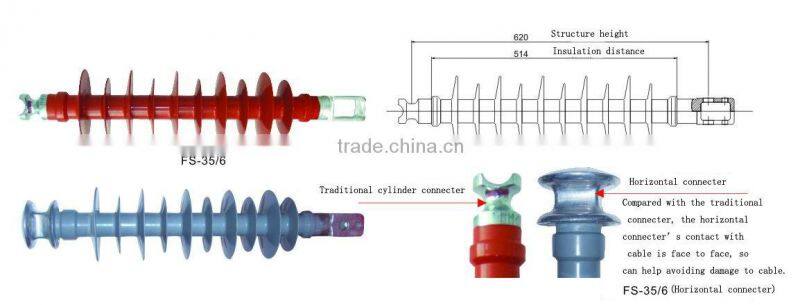

cross-arm composite insulator
This product have excellent bending resistance, impulse resistance, shock resistance, rupture resistance, anti-pollution performance, It have small volume, light weight, so it is convenient to install and shipment.
Materials:
1) Silicon Rubber for sheds/ housing
2) Glass-fiber reinforced epoxy resin rod (ECR type) for core
3) Hop dip galvanized cast steel for metal fittings

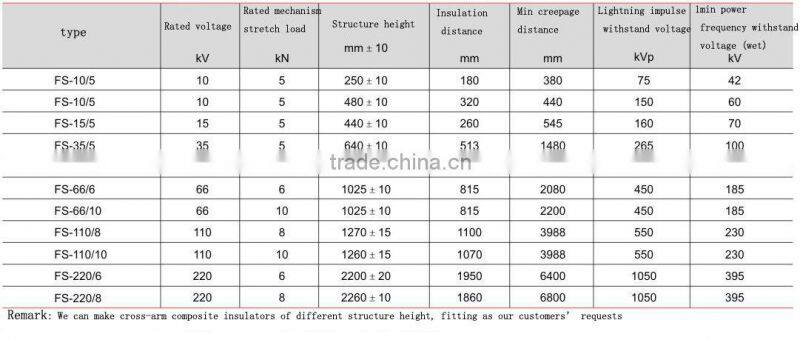

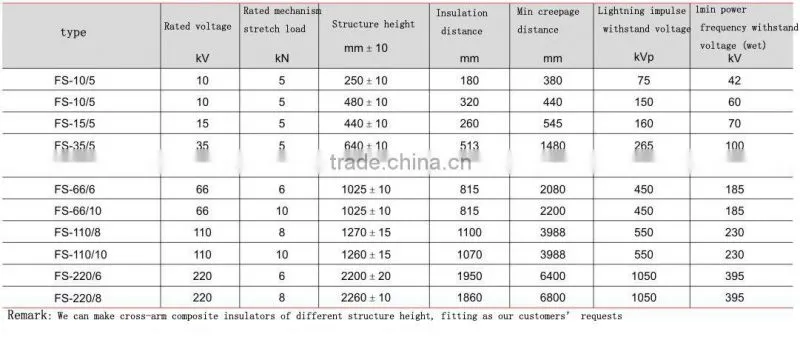

Technical Parameter:
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 1500m
3.AC Power frequency does not exceed 100Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees
more pictures:
