35KV Three Phases Surge Arresters for Lightning Protection

35KV Three Phases Surge Arresters for Lightning Protection thumbnail-1
35KV Three Phases Surge Arresters for Lightning Protection photo-1
Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mingneng
Model Number:
HY5WZ-51/150*51/134
Contact Supplier Request Quote Chat Now
Wenzhou Mingneng Electrical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO OR SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mingneng
Model Number HY5WZ-51/150*51/134

Specifications

3 surge arresters/unit
New type surge arresters
Limit overvoltage between phases
High capacity ZNO varistor as main component

35KV Three Phases Surge Arresters for Lightning Protection



System rated voltage(KV)

Protector rated voltage(KV)

Wiring method

MCOV(KV)

D.C U1Ma≥KV

Power frequency reference voltage ≥KV

Residual voltage of nominal discharge current     ≤KV

2ms Rectangular impulse current withstand ≥KA

35

51

phase- phase

40.8

88.0

59.0

150

200

phase- earth

73.0

51.0

134



Normal service conditions:

1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.

2.The altitude above sea level does not exceed 2000m

3.Power frequency 48Hz~62Hz

4.Maximum wind speed does not exceed 35m/s

5.The earthquake intensity does not exceed 7 degrees

6.The voltage that long-time exerted shouldn't exceed its Max MCOV

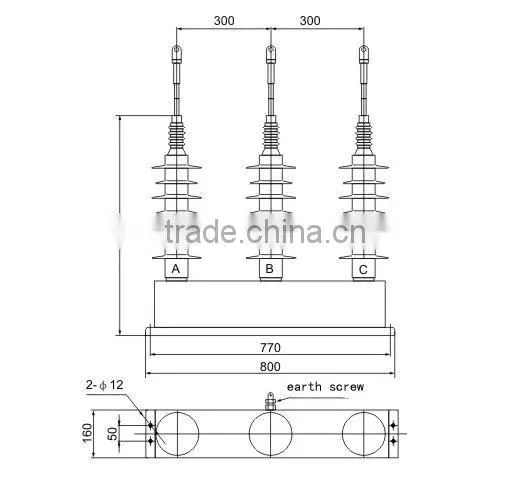

more related picture:



35KV Three Phases Surge Arresters for Lightning Protection35KV Three Phases Surge Arresters for Lightning Protection
