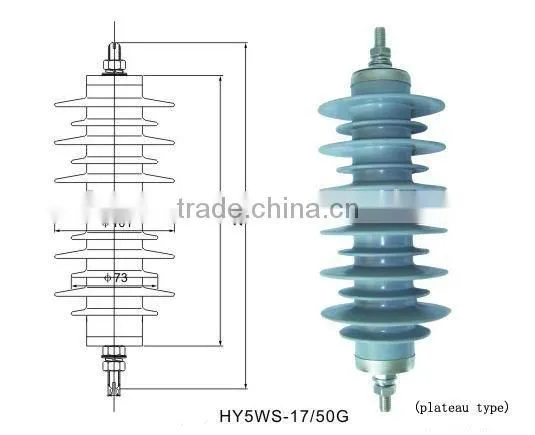

Help CenterDistribution Type Arrester(plateau Type)
Related Products
-
51KV High Surge ArresterNegotiableMOQ: 100 Pieces -
Surge Arrester in Neutral Point of TransformerNegotiableMOQ: 100 Pieces
-
Insulator(anti Wind Deviation Type)NegotiableMOQ: 100 Pieces
-
Line Type Lightning Arrester With GapNegotiableMOQ: 100 Pieces
-
100KV Substation Lightning ArresterNegotiableMOQ: 100 Pieces
Specifications
distribution type arrestermaterial: ZnO varistor, sillicon rubber housing
certification:ISO9001
confirm to IEC60099-4
distribution type arresteris used to protect distribution equipment from being damaged by atmosphere over-voltage and operating over-voltage.
Technical Parameter:
1) Sys R.V :10 KV(r.m.s)
2) MOA R.V :17 KV(r.m.s)
3) MCOV : 13.6 KV(r.m.s)
4) D.C.U1mA ≥25KV
5) 1/10 μs steep current impulse ≤57.5KV
6) 8/20 μs lighting current impulse ≤50KV
7) 30/60 μs switching current impulse ≤38.5KV
8) 2ms rectangular current impulse withstand:90A
9) 4/10μs high current impulse withstand:65KA
Normal service conditions:
1.The ambient air temperature is no higher than +40 degree. no lower than -40 degree.
2.The altitude above sea level does not exceed 2000m
3.Power frequency 48Hz~62Hz
4.Maximum wind speed does not exceed 35m/s
5.The earthquake intensity does not exceed 7 degrees
6.The voltage that long-time exerted shouldn't exceed its Max MCOV
