Single Wire or Cable Vertical Flame Testing Equipment

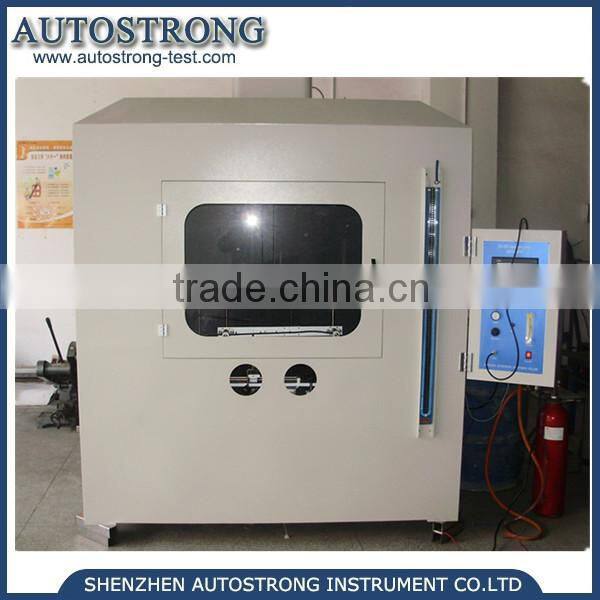

Single Wire or Cable Vertical Flame Testing Equipment photo-1
Single Wire or Cable Vertical Flame Testing Equipment photo-2
Single Wire or Cable Vertical Flame Testing Equipment photo-3

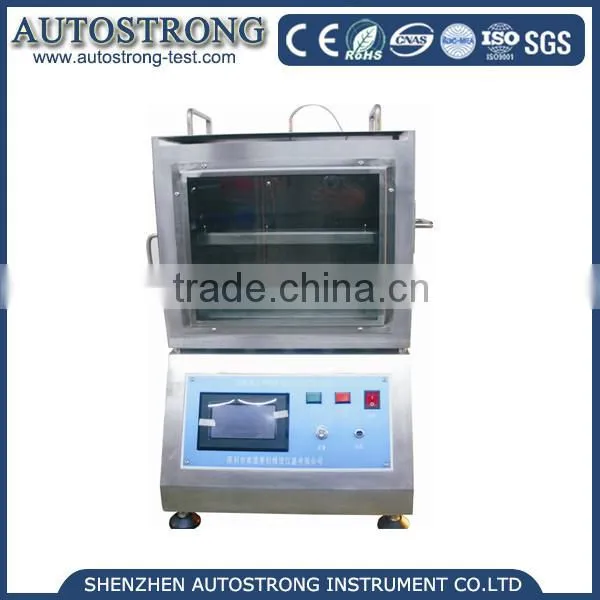

Single Wire or Cable Vertical Flame Testing Equipment photo-4

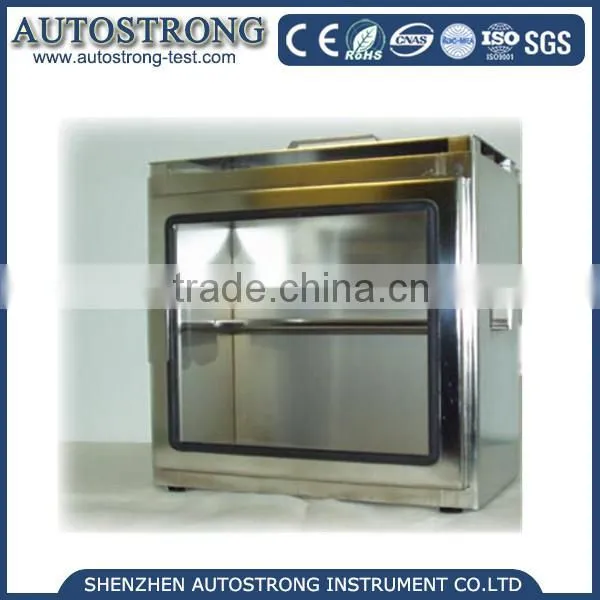

Single Wire or Cable Vertical Flame Testing Equipment photo-5
Single Wire or Cable Vertical Flame Testing Equipment photo-6
US$ 1,000 - 3,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Autostrong
Model Number:
Auto-DSP
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name Autostrong
Model Number Auto-DSP
Power Electronic
Usage Plastic Testing Machine

                                   Single Wire or Cable Vertical  Flame Testing Equipment


Single Wire or Cable Vertical  Flame Testing Equipment Introduction:



Resistance of a single vertical electrical insulated conductor or cable to a vertical flame propagation under fire conditions.



Stainless steel screen with a sliding burner handle support for approaching or moving back the flame from the sample under test according to the CEI standards for test on cables.



Single Wire or Cable Vertical  Flame Testing Equipment  Technical Specification:



Flame standard

IEC60695-11-2,1kw nominal pre-mixed flame

Burner Tube

IEC60695-11-2 Figure A

Burning Angle

45°

Thermocouple

Type K (Ni/Cr - Ni/Al),200°~1050°

Thermocouple Size O/D

0.5mm

Temperature Resolution

1ºC

Standard Copper Block

weight 10 ± 0 .05 g before drilling. Cu-ETP

Gas Supply

Propane,min.95% purity

Input Power

220 V 50 Hz 3A or 115 V 60HZ  Optional

Inner Dimensions

W*D*H=300mm*450mm*1200mm

Conform to standard

IEC60332-1-1,IEC60332-1-2,IEC60695-11-2



Single Wire or Cable Vertical Flame Testing EquipmentSingle Wire or Cable Vertical Flame Testing EquipmentSingle Wire or Cable Vertical Flame Testing Equipment
