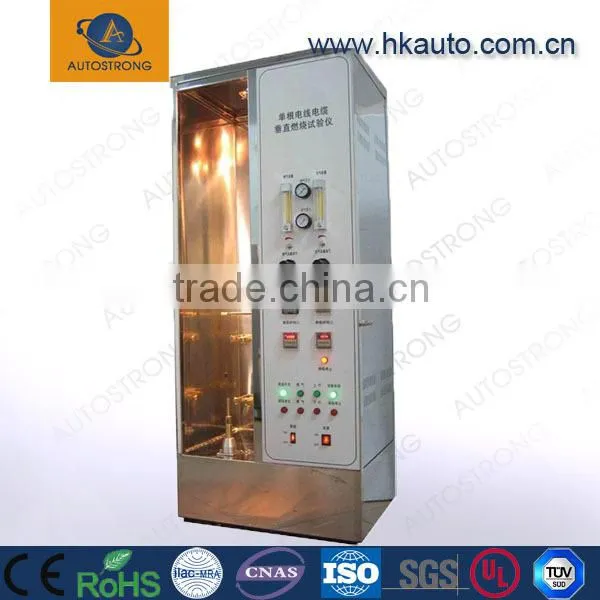

IEC60695-11-2 High Quality Cable vertical flame test machine
1.Introduction:
Resistance of a single vertical electrical insulated conductor or cable to a vertical flame propagation under fire conditions.
Stainless steel screen with a sliding burner handle support for approaching or moving back the flame from the sample under test according to the CEI standards for test on cables.
2.Technical Specification:
Flame standard |
IEC60695-11-2,1kw nominal pre-mixed flame |
Burner Tube |
IEC60695-11-2 Figure A |
Burning Angle |
45° |
Thermocouple |
Type K (Ni/Cr - Ni/Al),200°~1050° |
Thermocouple Size O/D |
0.5mm |
Temperature Resolution |
1ºC |
Standard Copper Block |
weight 10 ± 0 .05 g before drilling. Cu-ETP |
Gas Supply |
Propane,min.95% purity |
Input Power |
220 V 50 Hz 3A or 115 V 60HZ Optional |
Inner Dimensions |
W*D*H=300mm*450mm*1200mm |
Conform to standard |
IEC60332-1-1,IEC60332-1-2,IEC60695-11-2 |
1. High quality products.
2. We will take photos or vidios of your order before shipment.
3. Engineering team is professional and will provide you with good after-sales service.
4. Quality assurance is 1 year.
The advantage of our company
1. Engineering team is professional and will provide you with good after-sales service.
2. Many years of experience in foreign export.
3. Delivery time is fast, and quick respond.
4. We will send a picture of the packaging and product before shipment.
Management philosophy
1) Customers are god. We will do our best to satisfy you.
2) We will protect our reputation.
3) The quality is the most important thing.
4) We will bear a strong sense of responsibility.
Looking forward to hearing your inquiry!~Thank you!
